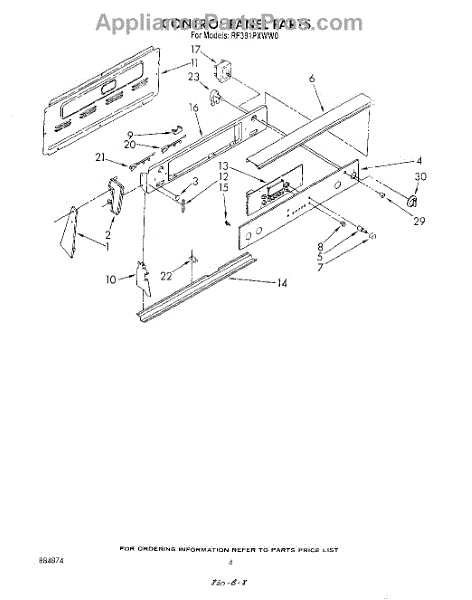

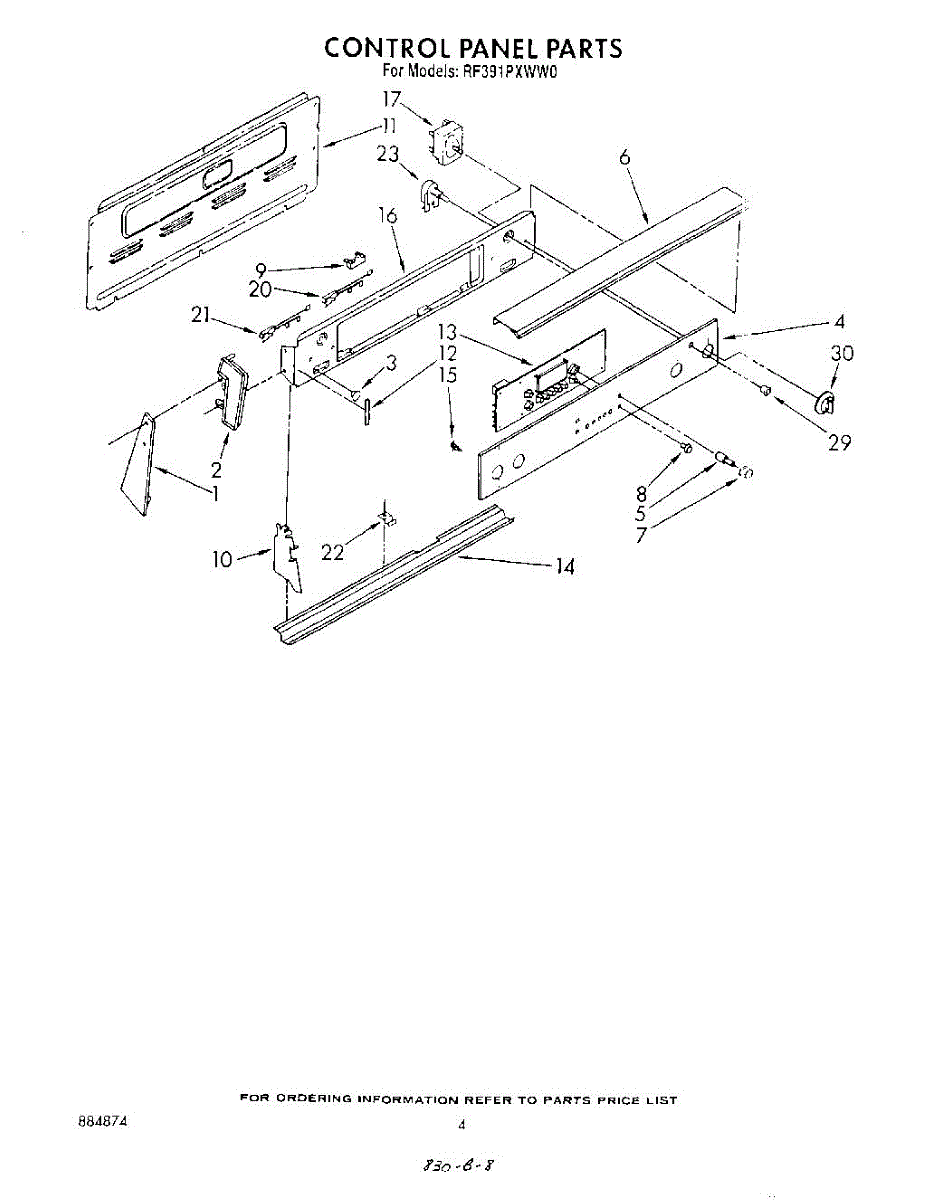

Parts for Whirlpool RF391PXWW0: 03 - Control Panel Parts

Specs: 10-16 x 1/2 inch.

Color: Black. To order extension shaft for this knob use 3149320.

This part has been discontinued and is no longer available.

Specs: 6 x 3/8B

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Specs: 10-16 x 1/2 inch.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This part has been discontinued by the manufacturer and is no longer available.

The Range Control Knob is an OEM replacement part for Whirlpool electric ranges. It fits over the infinite switch to control the heat levels of the surface elements. This knob allows precise adjustment of temperature settings, enabling users to easily select the appropriate heat levels for cooking.

Color: Black

Over time, the control knob can become damaged or worn out due to regular use. Issues like a loose or cracked knob, difficulty in turning it, or the knob not staying securely in place could indicate the need for replacement.

Symptoms of a faulty Range Control Knob include:

• Difficulty turning the knob or selecting heat levels
• The knob feels loose or wobbly
• The knob is cracked or visibly damaged

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
