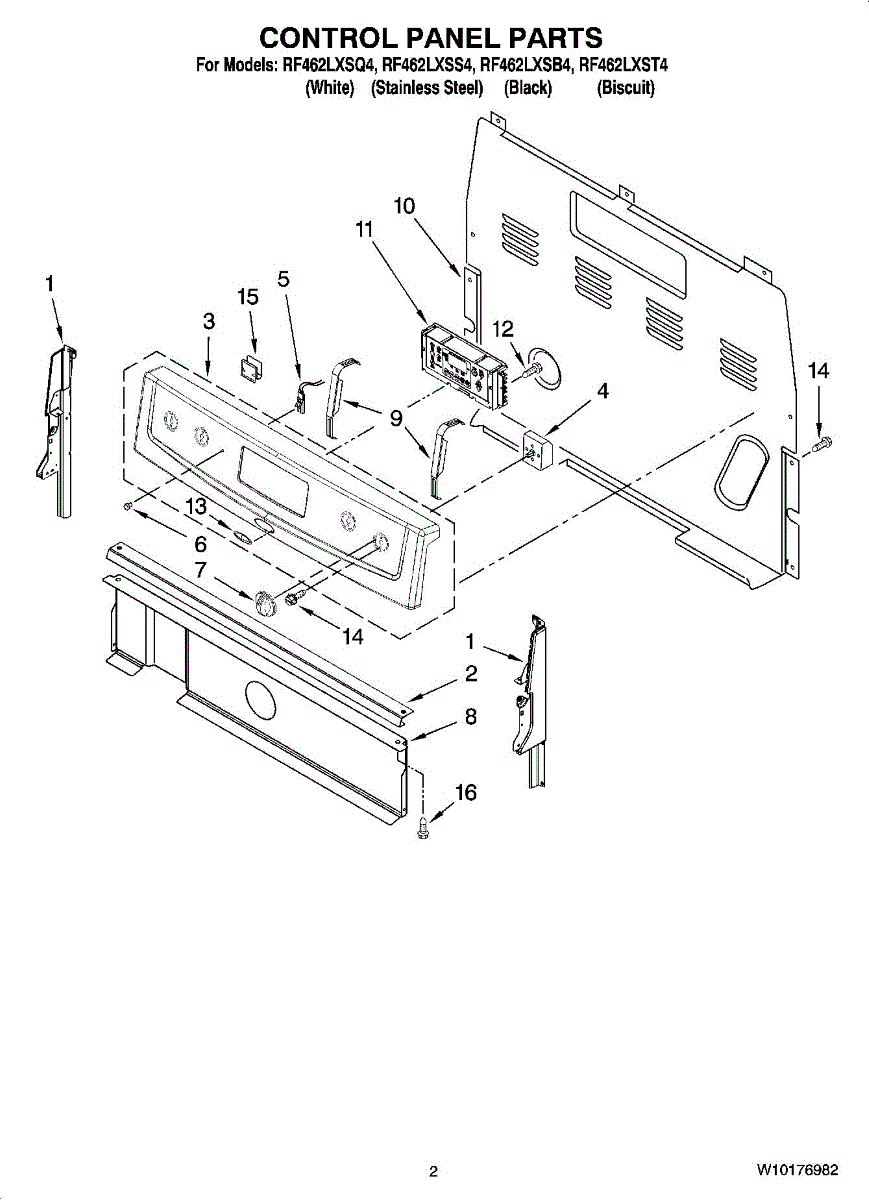

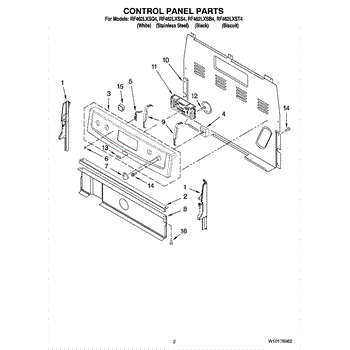

Parts for Whirlpool RF462LXSQ4: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Endcap panel that covers and finishes exposed edges of range control or cabinet panels. Replace if cracked, broken, or missing to restore appearance.

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Burner stuck on high heat or only working at maximum setting? This infinite control switch regulates burner temperature. DIY-friendly, 10-15 minute repair.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

Burner stuck on high or won't heat properly? This surface element switch controls your range burner temperature. Simple 15-minute DIY fix.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Bisque-colored infinite control knob for range cooktop. Installs on control panel. Replace if cracked, broken, or worn from daily use.

Black infinite switch knob for range cooktop. Replaces broken, cracked, or missing control knobs. Mounts directly onto the infinite switch stem.

White burner control knob for electric ranges. Replace if your stovetop knob is cracked, broken, worn, loose, or missing. Installs on the control panel.

Heat shield for electric ranges. Protects components from heat damage. Replace if cracked, warped, or missing to restore proper heat protection.

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

This is a Whirlpool range control board. It manages and monitors temperatures for the range and features a digital display and user interface buttons. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the control panel in place. Remove the screws from each side of the control panel to gain access to the old control board. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part.This is a genuine OEM part compatible with ranges manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This is a Whirlpool range control board. It manages and monitors temperatures for the range and features a digital display and user interface buttons. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the control panel in place. Remove the screws from each side of the control panel to gain access to the old control board. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part.This is a genuine OEM part compatible with ranges manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This is a Whirlpool range control board. It manages and monitors temperatures for the range and features a digital display and user interface buttons. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the control panel in place. Remove the screws from each side of the control panel to gain access to the old control board. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part.This is a genuine OEM part compatible with ranges manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Secures the rear cover panel on your electric range. Replace this clip if it's broken, cracked, or missing to properly hold the back cover in place.

Color: Biscuit. For black order WP98008545. For white order WP98008544.

Color: White. Size: 8-18 x 3/8 inch.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.
