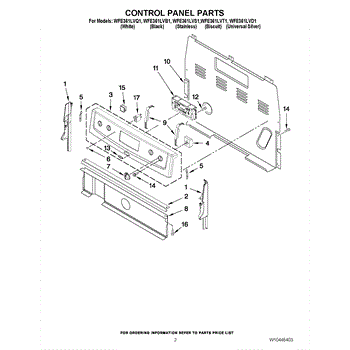

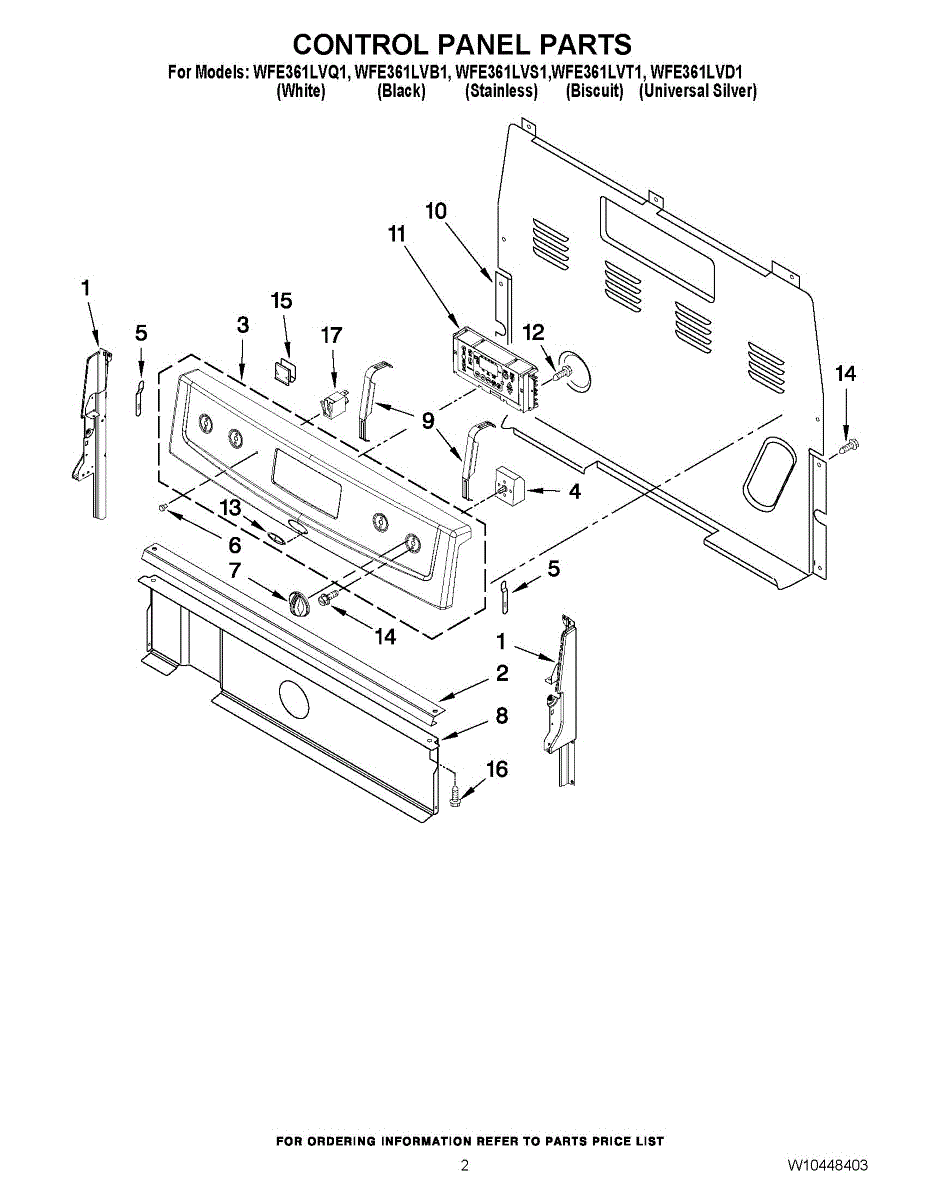

Parts for Whirlpool WFE361LVD1: 02 - Control Panel Parts

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This control panel assembly replaces a damaged or worn console to restore the user interface and housing for your appliance's controls. It provides the outer console, buttons and trim needed for normal control access and appearance. What it does:

• Provides the console housing and control button area used to operate the appliance
• Replaces cracked, faded, scratched or broken console surfaces and trim
• Restores button/trim alignment and the physical interface for selector knobs and switches
• Helps address issues caused by physical damage to the console

• Disconnect power to the appliance before starting any repair
• Handle the panel carefully to avoid scratching or damaging painted surfaces and lens areas
• Installation typically requires basic hand tools; follow the appliance service manual for proper disassembly/reassembly
• If the appliance has electronic control failures, this part replaces the console housing and user interface components only

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element Switch is an OEM replacement part for Whirlpool ranges and ovens. This component serves as the control mechanism for the 8-inch surface heating element, allowing you to precisely regulate the temperature or turn the burner on and off.

Symptoms of a faulty surface element switch may include:

• The heating element not turning on or off properly
• Issues with adjusting or maintaining the desired heat level
• Flickering or erratic behavior of the burner

Causes of needing to replace the surface element switch can include normal wear and tear over time, electrical malfunctions, or damage from exposure to high heat or spills.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range and oven models.

For small element switch use- 3149404

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: Bisque

Color: Black

The Top Burner Control Knob is an OEM part for Whirlpool ranges. This knob allows you to control the heat level of the stovetop burners, providing precise adjustments for cooking.

You should replace the control knob if it becomes damaged or worn out. Causes of a bad control knob can include frequent use, accidental impact, or exposure to high temperatures, which can result in the knob becoming loose, cracked, or difficult to turn.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Cracks or visible damage
• Inconsistent heat levels when adjusting the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This electronic control board governs oven functions and user inputs for precise cooking and timed cycles. Replacing a failed control restores proper display, button response, and cycle control for gas or electric ovens. What it does:

• Receives and processes commands from the front control panel to run bake, broil, timers and self-clean cycles
• Controls oven heating elements and relays to regulate temperature and cooking time
• Provides the display and touch/keypad response for user input and status feedback
• Faulty boards can cause blank or flickering display, unresponsive buttons, incorrect cycle behavior, or ovens that won't start

• Disconnect power to the appliance at the breaker or unplug before servicing
• Handle the board carefully and avoid touching contacts; use anti-static precautions if available
• Follow manufacturer instructions for removing the control console and securing connectors

This is the main electronic control board that manages the appliance's user interface and core cycle functions, restoring responsive controls and reliable operation when the original board fails. What it does:

• Processes user input and runs selected cycles; the board coordinates timers, relays, and electronic commands.
• Restores control when buttons, displays, or cycle selection become unresponsive.
• Can resolve erratic operation, unexpected shutdowns, or failure to start when caused by a failed control board.
• Works with the appliance's sensors and power relays to sequence functions safely.

• Disconnect power (unplug or switch off breaker) before any service to avoid shock or damage.
• Handle the board by its edges and avoid touching contacts; use an anti-static strap if available.
• Transfer any mounting brackets, connectors, or user-interface assemblies as needed from the old board.
• After installation, restore power and verify the control responds and cycles run normally.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Size: 8-18 x 1/2 inch.

Surface unit indicactor light.
