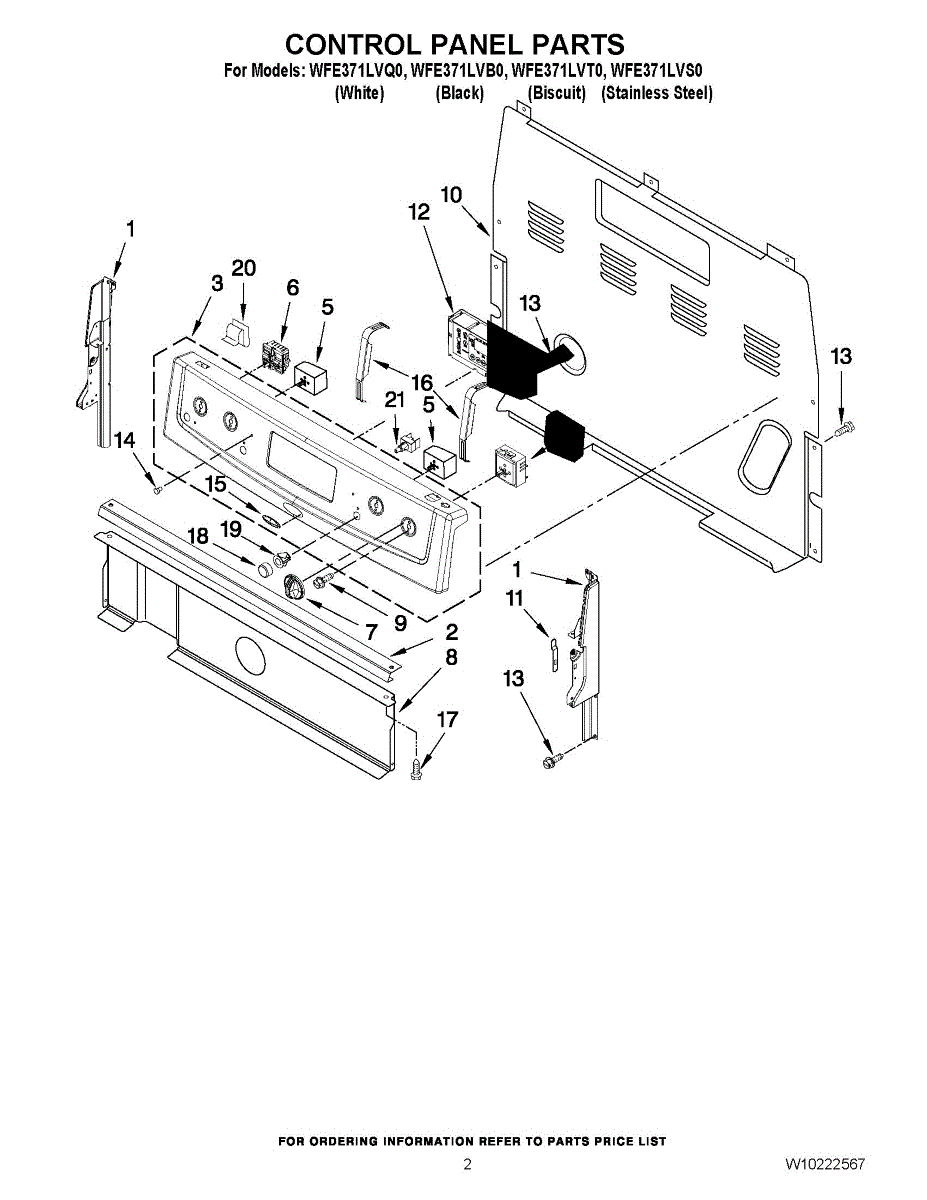

Parts for Whirlpool WFE371LVB0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: White  Note: Right side endcap

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

Color: White

Color: Stainless

Color: Black

Color: Bisque

The Infinite Switch is an OEM replacement part for Whirlpool ovens and ranges. It is a crucial component that controls the flow of electricity to the heating elements, allowing for precise temperature regulation during cooking.

Symptoms of a need to replace the infinite switch:

• Oven or range not heating properly or cycling on and off erratically
• Inability to maintain consistent temperatures during cooking
• Knob or dial feeling loose or not turning smoothly
• Heating elements not turning on or off as expected

Causes of a faulty infinite switch can include general wear and tear, electrical malfunctions, or physical damage due to impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven and range models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM replacement part for Whirlpool ranges and cooktops. Located behind the control knob, this switch regulates the power delivered to the heating elements, allowing users to set and adjust the desired cooking temperature.

A malfunctioning Infinite Switch can arise from wear and tear, electrical shorts, or internal component failures. When this essential component is not working correctly, it can lead to inconsistent or uncontrolled heating of the burners.

Symptoms of a faulty Infinite Switch include:

• Burner not heating at all or heating continuously regardless of the knob setting
• Inability to achieve or maintain the desired cooking temperature
• Burner heating inconsistently or fluctuating in temperature
• The control knob feeling loose or not aligning with the indicated settings

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Color: Bisque

Color: Black

The Top Burner Control Knob is an OEM part for Whirlpool ranges. This knob allows you to control the heat level of the stovetop burners, providing precise adjustments for cooking.

You should replace the control knob if it becomes damaged or worn out. Causes of a bad control knob can include frequent use, accidental impact, or exposure to high temperatures, which can result in the knob becoming loose, cracked, or difficult to turn.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Cracks or visible damage
• Inconsistent heat levels when adjusting the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

This electronic control board manages oven functions and user controls so the oven heats, times, and responds correctly. It replaces a failed console control board to restore normal oven operation. What it does:

• Receives and processes commands from the touchpad/knobs and runs oven bake, broil, and self-clean cycles
• Controls oven heating elements and temperature regulation via relays or SSRs
• Can cause symptoms like a blank or unresponsive display, no heat, or error codes when it fails
• Works with the oven's user interface and safety interlocks to coordinate cycles

• Disconnect power to the appliance at the breaker before starting; electric shock hazard
• Handle the board carefully to avoid static damage and avoid touching soldered components
• Verify connector locations and any mounting brackets during removal; some panels or trim may need removal

This is a replacement oven control board from Whirlpool. The control board is the heart of the oven and provides the means for users to control the appliance. It includes the digital readout that tells the time and temperature, as well as buttons for controlling the light, baking modes, temperature adjustments, and start/stop functionality. The oven control board is susceptible to both physical wear and tear in the form of contact wear from users pressing the buttons, and electrical wear and tear. Eventually, the button contacts will wear out, and it is possible that heat, spills, or simple use over time will damage soldered components and cause a need for replacement. To replace the oven control board, first unplug the oven. Next, remove the cowling to reveal the board housing and mounting screw locations. Remove the two mounting screws, unplug the wires, and remove the old board.This OEM part is designed to fit Whirlpool ovens. It is sold individually.

This is a replacement oven control board from Whirlpool. The control board is the heart of the oven and provides the means for users to control the appliance. It includes the digital readout that tells the time and temperature, as well as buttons for controlling the light, baking modes, temperature adjustments, and start/stop functionality. The oven control board is susceptible to both physical wear and tear in the form of contact wear from users pressing the buttons, and electrical wear and tear. Eventually, the button contacts will wear out, and it is possible that heat, spills, or simple use over time will damage soldered components and cause a need for replacement. To replace the oven control board, first unplug the oven. Next, remove the cowling to reveal the board housing and mounting screw locations. Remove the two mounting screws, unplug the wires, and remove the old board.This OEM part is designed to fit Whirlpool ovens. It is sold individually.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: White. Size: 8-18 x 3/8 inch.

Screw for side trim.

Color: White. For black use 9758491.

Color: Black. For white use 9758491

Color: White

Color: Black

This pushbutton switch is a momentary control used on appliance control panels to complete an electrical circuit when pressed, restoring user control and replacing worn or unresponsive buttons. What it does

• Acts as a momentary contact switch on the control panel to register user input.
• Restores panel responsiveness when a stuck, intermittent, or unresponsive button prevents commands from being accepted.
• Helps resolve issues where pressing a specific control does not start a cycle or change settings.
• Provides a direct, replaceable electrical contact—no programming required.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove the control panel or console to access the switch.
• Note connector positions and orientation before disconnecting wires; use a multimeter to verify replacement if needed.
