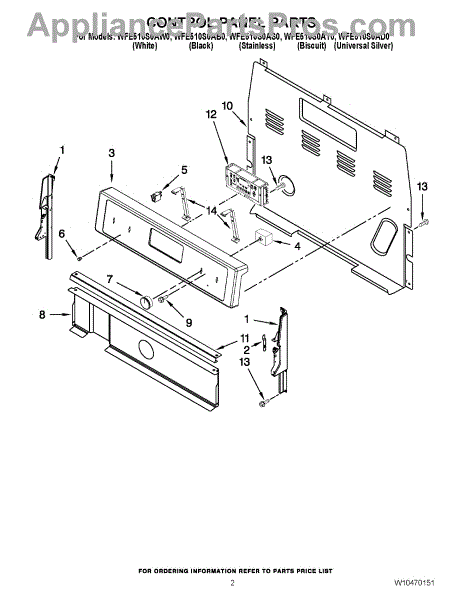

Parts for Whirlpool WFE510S0AB0: 02 - Control Panel Parts

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

This control panel is the user interface for your appliance, providing the buttons and display that let you select cycles and options. Replacing a worn or damaged panel restores reliable control and clear feedback during operation. What it does:

• Houses the touchpads/buttons and display used to start and program the appliance
• Sends user commands to the main control board so cycles and options run as selected
• Common symptom: buttons or touchpads do not respond or register intermittently
• Common symptom: display is dim, shows incorrect characters, or fails to illuminate
• Can help when the exterior panel is cracked, faded, or cosmetically damaged

• Disconnect power to the appliance at the breaker or unplug before servicing
• Handle with care to avoid damage to the display, ribbon cable, and connectors
• Align and seat the panel and any retaining clips or screws; avoid over-tightening

This control panel provides the user interface for selecting cycles and settings and restores control functions and display feedback to the console. It replaces a damaged, cracked, or unresponsive front panel so the appliance responds properly to inputs. What it does:

• Houses the touchpads/buttons and display area used to choose cycles, options, and start/stop commands
• Routes user inputs to the main control board so selections register and start functions
• Restores readable labels and a clean surface if the original panel is scratched, cracked, or worn
• Can resolve symptoms like unresponsive buttons, faded/obscured labels, or erratic panel behavior

• Disconnect power (unplug or breaker) before starting any repairs
• Handle the panel and any attached ribbon cables with care to avoid damage
• Some disassembly of the front console may be required; keep fasteners organized for reassembly
• Test function before fully reassembling the appliance

This replacement control panel is the front console fascia for the appliance's user interface. Replacing a cracked or worn panel restores a clean look and proper support so buttons and displays mount and align correctly.

• Houses and supports the user interface components (buttons/touchpad, display, light pipes) on the front of the appliance
• Provides labeled selections for operating settings and functions
• Aligns with chassis mounting points to keep the console secure and stable
• Common replacement reasons: cracks or dents, broken mounting tabs, peeling/faded graphics, loose or sagging console

• Disconnect power before servicing; shut off gas or water supply if applicable
• Handle sheet-metal edges carefully; wear cut-resistant gloves
• Note screw locations and harness routing; transfer any switches, keypad/touchpad, bezels, and brackets from the old panel as required
• Restore power and verify all controls respond before final reassembly

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element Switch is an OEM replacement part for Whirlpool ranges and ovens. This component serves as the control mechanism for the 8-inch surface heating element, allowing you to precisely regulate the temperature or turn the burner on and off.

Symptoms of a faulty surface element switch may include:

• The heating element not turning on or off properly
• Issues with adjusting or maintaining the desired heat level
• Flickering or erratic behavior of the burner

Causes of needing to replace the surface element switch can include normal wear and tear over time, electrical malfunctions, or damage from exposure to high heat or spills.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range and oven models.

For small element switch use- 3149404

Surface unit indicactor light.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: Black

Color: White

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This electronic control board replaces the appliance's primary control module to restore reliable cycle selection and electronic regulation. It helps the appliance communicate with switches, sensors and displays so cycles run as selected. What it does:

• Regulates and sequences appliance functions by sending signals to motors, valves and heaters
• Interfaces with the user panel to process cycle selections and display status
• Can resolve symptoms such as no power to cycles, unresponsive controls, erratic or interrupted cycles, or display error messages
• Replaces a failed or damaged control board to restore normal electronic operation

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the board carefully and avoid touching components or contacts to prevent electrostatic damage
• Verify the part number on the old board matches before installing;

This electronic oven control replaces a failed console module to restore oven functions and the front display. It's used to set bake, broil, self-clean cycles and timer/clock functions so the oven operates and displays status clearly. What it does:

• Controls oven cooking modes, temperature settings and timing functions
• Powers and displays the control panel readout (blue LCC95 display)
• Enables self-clean (pyrolytic) cycle control where equipped
• Commonly replaces units when the display is blank, controls are unresponsive, or oven won't start

• 1 electronic oven control (LCC95, blue display)

• Disconnect power to the appliance before starting any work
• Handle the control board carefully and avoid touching circuit traces or components
• If wiring connections are corroded or damaged, repair or replace them before installing the new control

This electronic control board is the appliance's main console control that manages cycle selection, timing and user inputs so your appliance responds correctly to commands. Replacing a faulty board restores normal control and display functions. What it does:

• Interprets button presses and touchscreen inputs so selections start and run as expected
• Controls cycle timing, indicators, and display messages for accurate operation
• Can stop the appliance from responding if damaged or failed
• Common symptoms: blank or unresponsive display, controls that don't start cycles, or error codes related to control

• Disconnect power (unplug or shut off circuit) before service to avoid shock
• Handle board by edges and avoid static discharge; use an anti-static strap if available
• Reuse original mounting hardware and connectors; ensure all wiring is fully seated

This electronic control board is the appliance's central control module. It interprets inputs from the user interface and sensors, and switches relays to run programmed functions. Replacing a failed board can restore power, response, and reliable operation.

• Directs timing and operation of key components based on user selections and feedback from sensors/switches
• Interfaces with the keypad/display for cycle selection and status
• Typical failure symptoms: dead or blank display, unresponsive controls, won't start/run, cycles that won't advance or stop unexpectedly
• May also trigger recurring control-related error codes

• Disconnect power to the appliance before service; shut off gas/water only if applicable to your model
• Handle the board by the edges and use ESD precautions to avoid static damage
• Photograph/label all wiring and transfer connectors to the new board one at a time
• Secure the board in the original housing/panel and ensure all connectors are fully seated before restoring power and running a test cycle

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage
