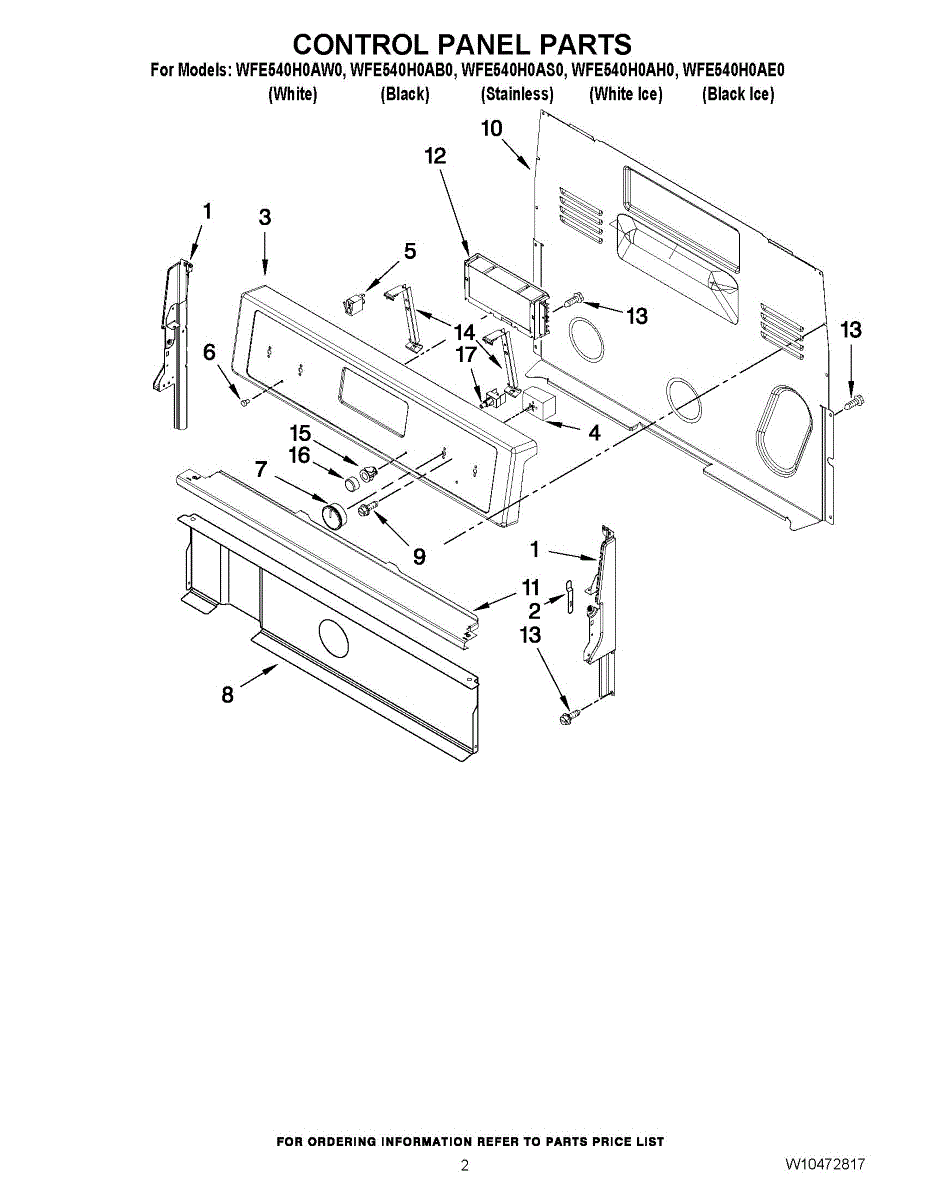

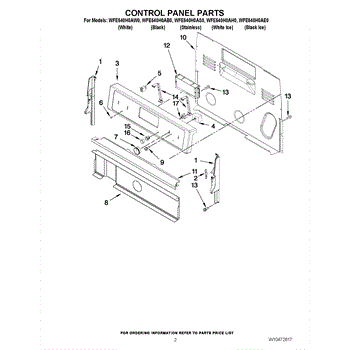

Parts for Whirlpool WFE540H0AH0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Secures wiring and components to prevent movement and disconnection in your electric range. Replace if clips are broken or wires are loose. Verify fit with your model number.

Color: Stainless

Control: Black

Color: White

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Replace your range's cracked, stripped, or missing control knob. Fits onto the control shaft for a secure grip during everyday operation.

Heat shield for electric ranges. Protects components from heat damage. Replace if cracked, warped, or missing to restore proper heat protection.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

Secures the control console assembly to your range, keeping the control board and interface stable. Replace if bracket is cracked, broken, or missing.

This blue light lens replaces a worn, cracked or missing refrigerator interior light cover to restore even light diffusion and protect the lamp. It snaps into the light housing to keep the bulb shielded and looking like new. What it does:

• Diffuses interior light for softer, more even illumination
• Protects the bulb or LED assembly from spills, dust and incidental contact
• Replaces cracked, yellowed or missing light covers that affect appearance or light output
• Works with the existing light housing and bulb

• One blue light lens

• Disconnect power or unplug the appliance before servicing to avoid shock
• Remove the old lens by gently releasing retaining tabs; press new lens into place until it clicks
• Use only manufacturer-recommended replacement parts and avoid forcing clips to prevent breakage
• Test the bulb and socket separately

This is an electronic control board with overlay used on ovens. This part sits on the front of the appliance and provides information for the user. The time or temperature is displayed on a small screen on the component. It also has operational buttons to turn the appliance on and off, choose cooking options, and change settings. If this part is damaged, it may cause the oven not to turn on, the oven not to heat, or the display to stop functioning.If this part is broken or damaged, it will need to be replaced. Make sure the appliance is turned off and unplugged from the wall. If it uses gas, it should not be turned on. A set of tools will be needed for the replacement process. A pair of work gloves may also be useful. Take off the door that holds the control board and disconnect the wires and other components. Replace with the new component, reassemble, and return power to the oven.This is an authentic OEM replacement component that has been sourced directly from the manufacturer. It is sold on an individual basis. The electronic control board with overlay is made to be used with stoves, ovens, and ranges created by Whirlpool.

The Oven Control Board is an OEM part for Whirlpool ranges. This control board manages the oven's functions, including temperature settings, bake and broil elements, and timing features.

Causes of a bad control board can include electrical issues, power surges, or normal wear and tear.

Symptoms of a bad oven control board include:

• The oven not heating up or maintaining the set temperature
• Error codes or beeping from the control panel
• The display not functioning properly or being blank
• The oven not responding to control inputs or buttons not working

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

Color: White

Black bezel trim that frames the control panel on your range. Replaces damaged, cracked, or discolored bezels to restore a clean appearance.

Color: Stainless

Color: Stainless

White control panel button for electric ranges. Replaces cracked, broken, or missing buttons on your range's control panel. Direct fit replacement part.

Black control panel button for electric ranges. Replaces broken, cracked, or missing buttons on your range's control interface. Direct fit replacement.

Replace an unresponsive control panel button on your range with this momentary pushbutton switch. Restores user input for temperature and function controls.
