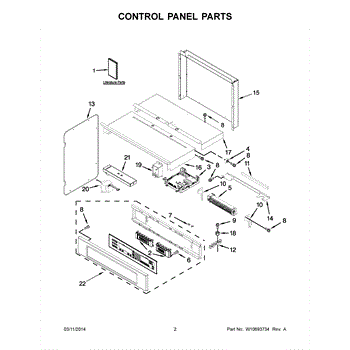

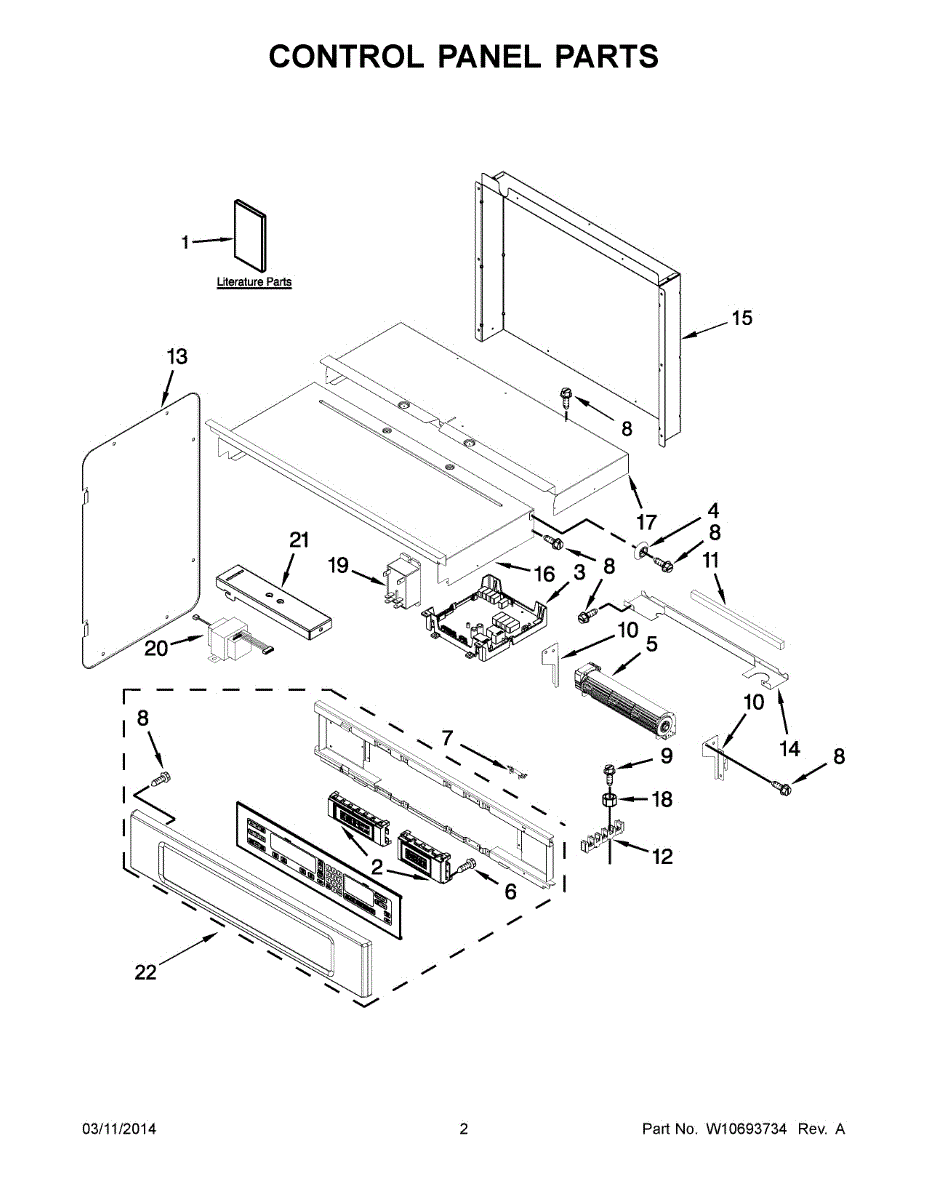

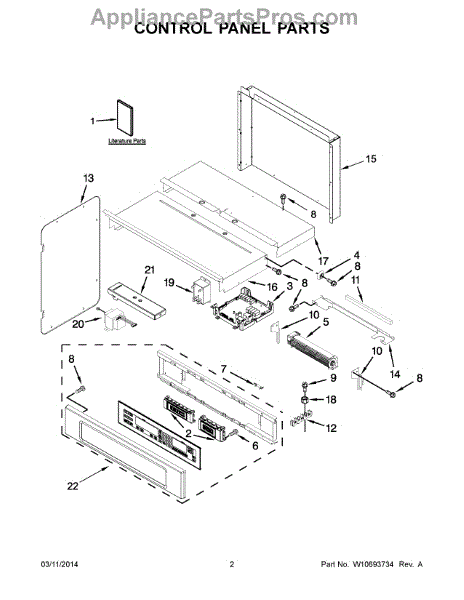

Parts for Kitchenaid KEMS309BBL01: 02 - Control Panel Parts

This replacement part is an electronic control board. This electronic control board displays the settings to the user and allows them to alter the controls during and before use. A new electronic control board might be needed if the connection has become worn down between the panel and the machine and can no longer operate. If the display is no longer showing the correct information or no information at all, it might be best to replace the part. If the current control assembly is no longer responsive when the user is setting the controls, it should be replaced as soon as possible. This is a genuine OEM replacement part made by Whirlpool and sold individually.

This genuine OEM part is an control board for Whirlpool dishwashers. The control board is the main circuit board that controls the dishwasher's main functions. If the dishwasher is no longer turning on or is not draining properly, it might be time for a new control board. Luckily, replacing a control board is an easy process.First, remove the outer door panel of the dishwasher by unthreading the mounting screws. Lift the control panel up and disconnect the wire touchpad harness from the control board. Then use a flathead screwdriver to release the locking tab and slide the control board housing to the left to detach. Remove the wire covers. Once removed, take note of the orientation of the wire connectors and disconnect them from the old board. Install the new control board by reconnecting the wire connectors to the appropriate terminals. Align the wire covers and pop them into place. Insert the control board housing tabs into the slots of the mounting bracket and slide the housing to the right to secure. Reinstall the control panel by attaching the control pad wire harness to the new board. Align the panel and rethread the mounting screws to secure. This replacement control board is compatible with Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand dishwashers.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Thermal Fuse is an OEM part for Whirlpool ovens. It acts as a safety device that prevents the oven from overheating. When the oven reaches an unsafe temperature, the thermal fuse cuts off power to the heating elements, ensuring the appliance does not overheat and cause potential damage or fire hazards.

Causes of a bad thermal fuse can include frequent overheating, electrical issues, or normal wear and tear over time. These factors can lead to the fuse blowing or becoming ineffective, compromising the safety and functionality of the oven.

Symptoms of a bad Thermal Fuse include:

• The oven not heating up
• The oven shutting off unexpectedly
• No power to the oven's heating elements
• Error codes related to overheating or temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

This mounting plate secures internal components to the appliance cabinet, restoring proper alignment and support for attached parts. It's a simple, durable metal bracket that helps stop rattling and keeps assemblies stable. What it does:

• Provides a secure mounting surface for control assemblies or other internal components
• Restores correct alignment when a bracket is bent or missing
• Reduces vibration and rattling from loose or unsupported parts
• Helps prevent premature wear caused by misaligned components

• One mounting plate

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools are typically required; keep fasteners from the original part for reinstallation
• Handle edges carefully—metal brackets can be sharp
• Refer to your model's service manual or parts diagram for exact placement and mounting fasteners

This electronic control panel replaces a worn or damaged console assembly and restores user control and display functions. It houses the touchpads/buttons and display components that let you select cycles and settings. What it does:

• Serves as the appliance's main user interface, registering button presses and showing status or error codes
• Replaces cracked, unresponsive, or faded control surfaces that prevent normal operation
• Restores reliable input to the appliance's control board when console failure is the cause of faults
• Resolves symptoms such as unresponsive buttons, intermittent display, or incorrect control behavior

• One control panel assembly

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• This part typically mounts at the front of the appliance; some models require removal of trim or bezels for access
• Handle the panel carefully to avoid damaging the display or ribbon connectors
