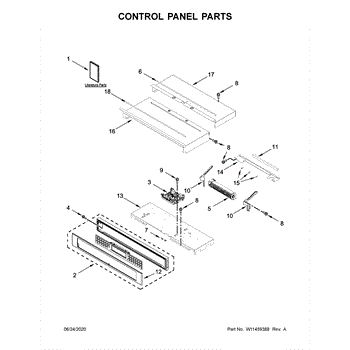

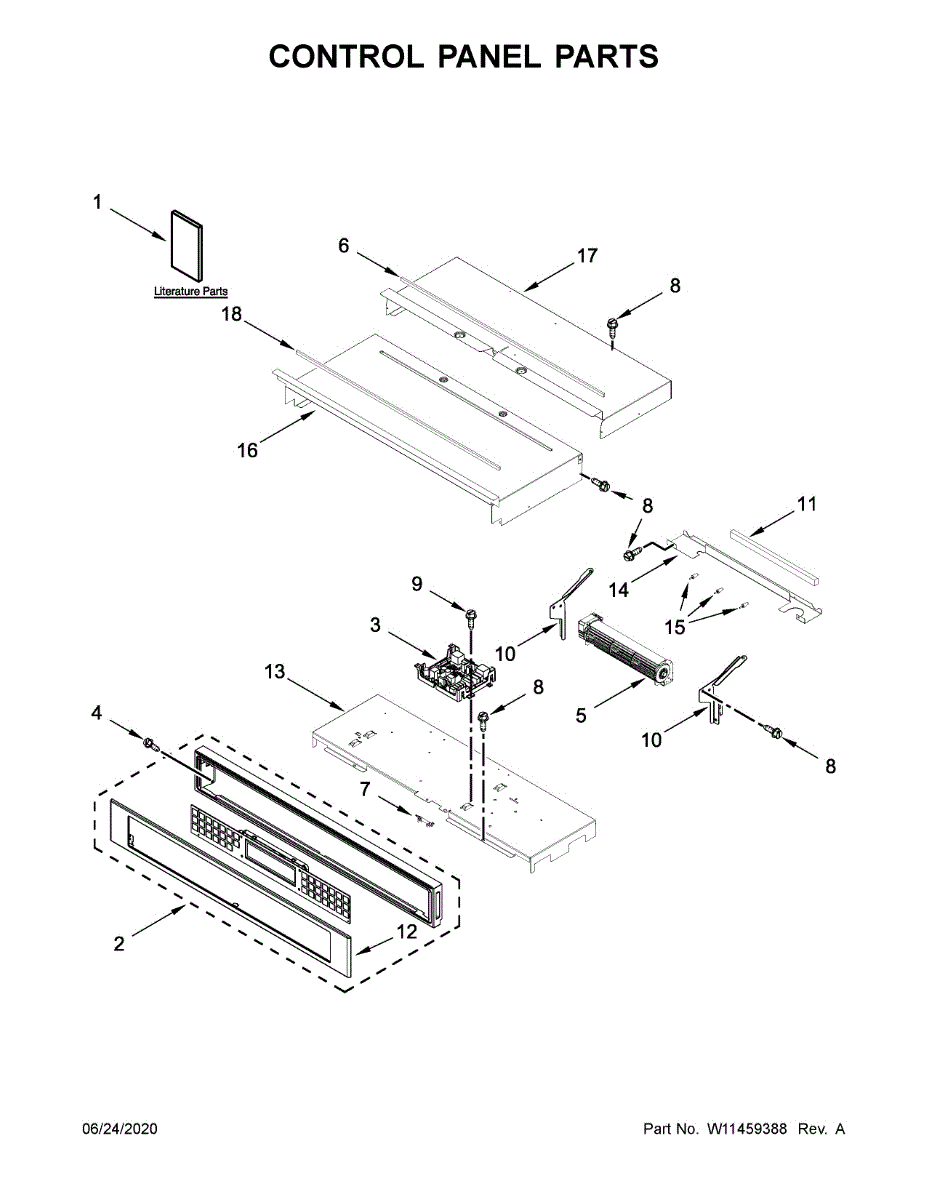

Parts for Kitchenaid KODE300ESS05: Control Panel Parts

The Console is an OEM part for Whirlpool wall ovens. The console houses the user interface including buttons, knobs, and display. It commands all functionality such as temperature selection, cooking modes, timer settings, and power options.

Causes of a bad console can include excessive wear and tear over prolonged use. Heat exposure from the oven itself can damage electronic components or compromise connections over time. Accidental impact or drops can crack the plastic casing.

Symptoms of a bad console include:

• Faulty or unresponsive buttons that do not initiate commands
• A dim or unlit display screen
• Inability to power on the oven
• Failure to accurately sense selected temperature or mode settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electronic control board is the brain of the appliance, coordinating power and communication between sensors, switches, and electrical loads. Replacing a failed board can restore proper start-up, cycle timing, and responsive controls. What it does:

• Manages program logic and cycle sequencing
• Distributes power to motors, valves, heaters, and fans as commanded
• Interfaces with the user controls/display and monitors sensors and switches
• Common failure symptoms: won't power on or start, unresponsive buttons, cycle won't advance or ends immediately, erratic lights/display, or recurring error codes

• 1 electronic control board

• Disconnect power at the breaker or unplug before servicing; if the appliance uses gas, shut off the gas supply
• Use ESD protection; handle the board by the edges and avoid touching circuitry
• Photograph wiring and move connectors one at a time to the matching terminals
• On some models, post-install programming/model code entry may be required—follow the unit's tech sheet or service instructions

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: Stainless

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
