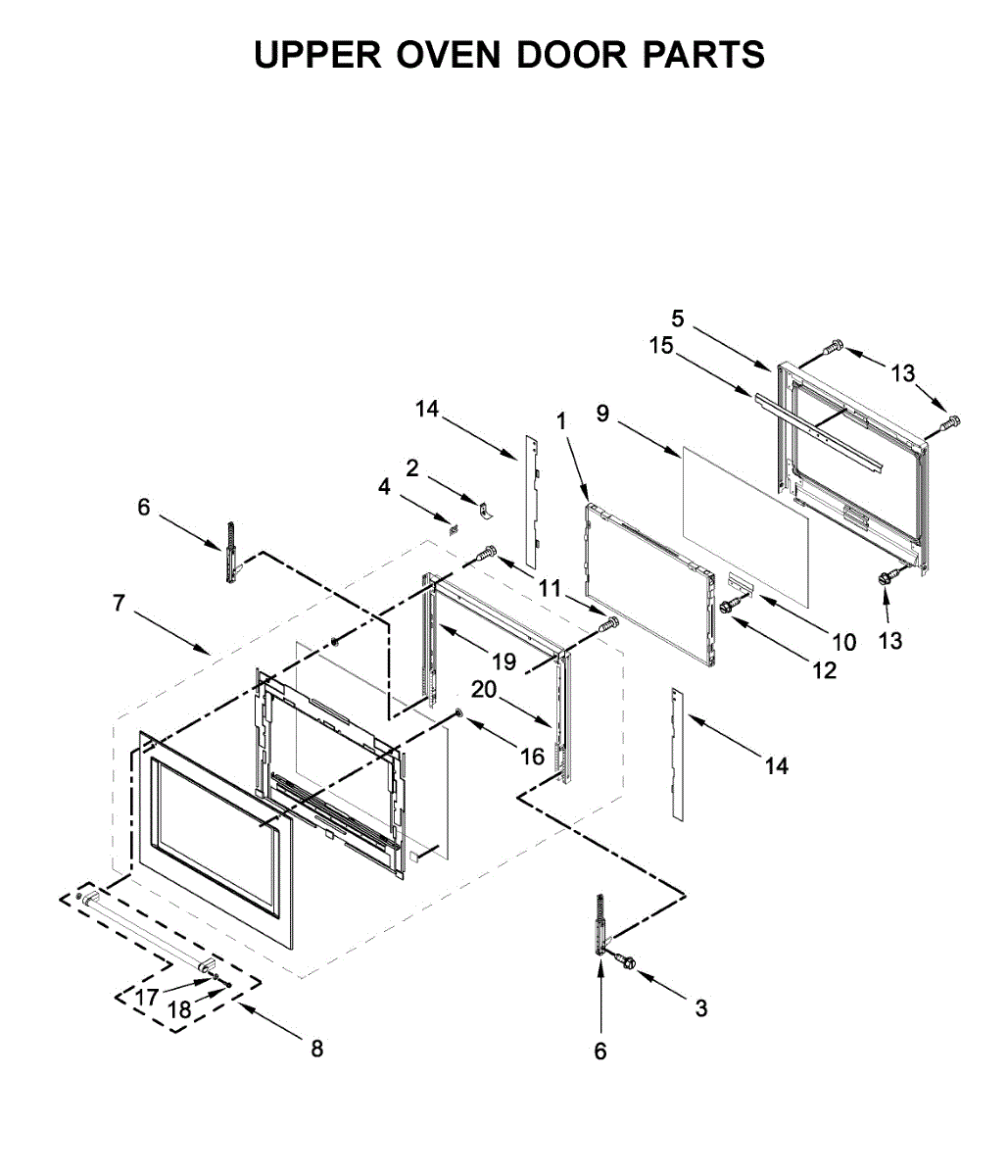

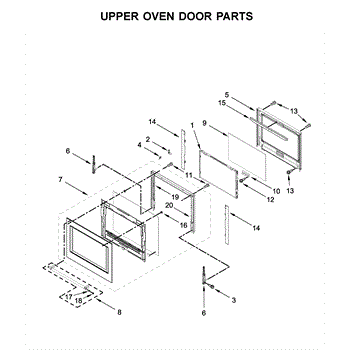

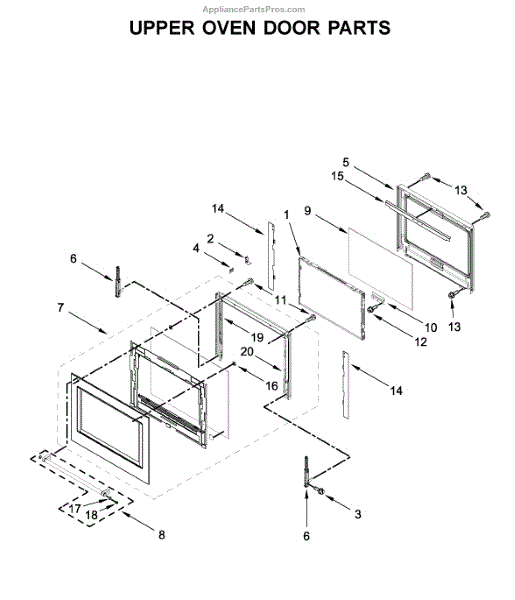

Parts for Kitchenaid KODE300ESS05: Upper Oven Door Parts

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This glass bracket secures the oven door glass to the door assembly, keeping the glass stable during normal use and helping maintain a proper seal. Replaces a worn or broken bracket to restore door stability and alignment. What it does:

• Holds the oven door glass in place so the door opens, closes, and seals correctly
• Prevents rattling, movement, or misalignment of the inner/outer door glass
• Helps maintain even heat containment by keeping the glass properly positioned
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Basic hand tools required; avoid over-tightening fasteners which can crack the glass
• Disconnect power to the appliance before removing or servicing the door
• Support the door and glass during removal to prevent dropping or breakage

This Frame-Glass is the outer glass panel for the oven door, restoring a clean appearance and helping retain heat while keeping the oven cavity visible. It replaces damaged, cracked, or chipped outer door glass. What it does:

• Provides the outer glass surface of the oven door for safe viewing of food while cooking
• Helps maintain oven heat and improve energy containment when the door is intact
• Replaces cracked, chipped, or shattered outer door glass that can affect appearance and safety
• Restores a sealed, clean-facing surface for the door assembly

• Disconnect power to the appliance and allow the oven to fully cool before beginning
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and detaching trim/fasteners; keep track of screws and clips

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal for reliable cooling performance. What it does:

• Supports the refrigerator door and provides a smooth pivot point for opening and closing
• Helps maintain proper door alignment to ensure a tight seal and consistent internal temperature
• Can prevent or correct door sag, rubbing, or uneven gaps
• Reduces noise or sticking that occurs when the hinge is worn or damaged

• Disconnect power to the appliance before attempting repairs and work with the door supported to prevent dropping
• Use appropriate tools to remove and reinstall hinge fasteners; keep track of any washers or shims
• Verify door alignment and gasket seat after installation; adjust hinge position as needed before fully tightening
• If other hinge hardware is worn or damaged, replace those components to ensure proper function

The Microwave Glass Door is an OEM part for Whirlpool brand microwaves. This stainless door acts as a protective barrier that covers the cooking cavity while allowing for the transmission of microwave energy through its glass pane.

Causes of a bad glass door include impact damage, excessive heat exposure over time, or failure of door hinges and mechanisms due to regular use wear, and tear.

Symptoms of a bad glass door include:

• Cracks or chips in the glass pane
• Difficulty closing or latching the door securely
• Warping or discoloration of the door frame or seal

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

Color: Stainless

The Door Handle is an OEM part for Whirlpool microwaves. It is an external component consumers interact with frequently for opening and closing access to the microwave interior.

Causes of a bad door handle can include normal wear and tear affecting functionality over thousands of uses. Thin plastics or loose hardware holding the handle can deteriorate more quickly.

Symptoms of a bad door handle include:

• The handle no longer latches the door securely
• Difficulty opening or closing the microwave door
• The handle coming loose or detaching completely
• Issues using locking/unlocking mechanisms

This OEM replacement Whirlpool door handle ensures smooth, dependable performance for the lifespan of the microwave. Its sturdy construction and precise fit maintain usability. This OEM part is also compatible with Maytag, Roper, Jenn-Air, Admiral, KitchenAid, and Frigidaire microwaves.


This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This glass bracket supports and secures a range/oven door glass panel, keeping the glass aligned and stable for safe operation. Replacing a worn or broken bracket restores proper door fit and reduces movement or rattling. What it does

• Secures the oven/range door glass to the door assembly to maintain alignment and stability
• Prevents glass movement, vibration noise, and uneven gaps around the door
• Helps protect the glass from chipping or cracking caused by improper support
• A damaged or missing bracket can cause door misalignment, rattling, or difficulty closing the door

• Disconnect power to the appliance before starting and follow manufacturer safety instructions
• Handle door glass carefully; wear safety gloves and eye protection to avoid cuts
• Reinstall carefully and verify door alignment and gasket seating before returning appliance to service

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations
