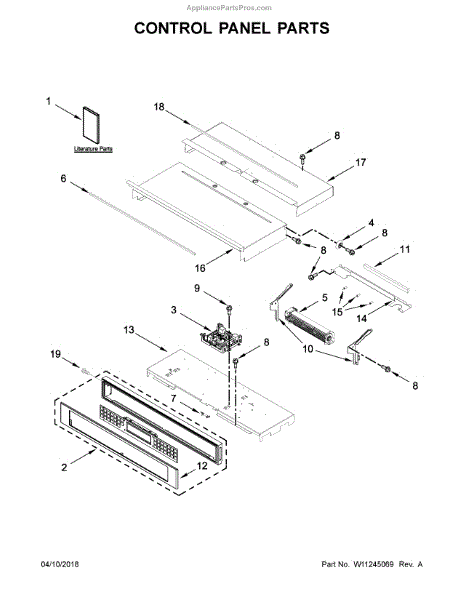

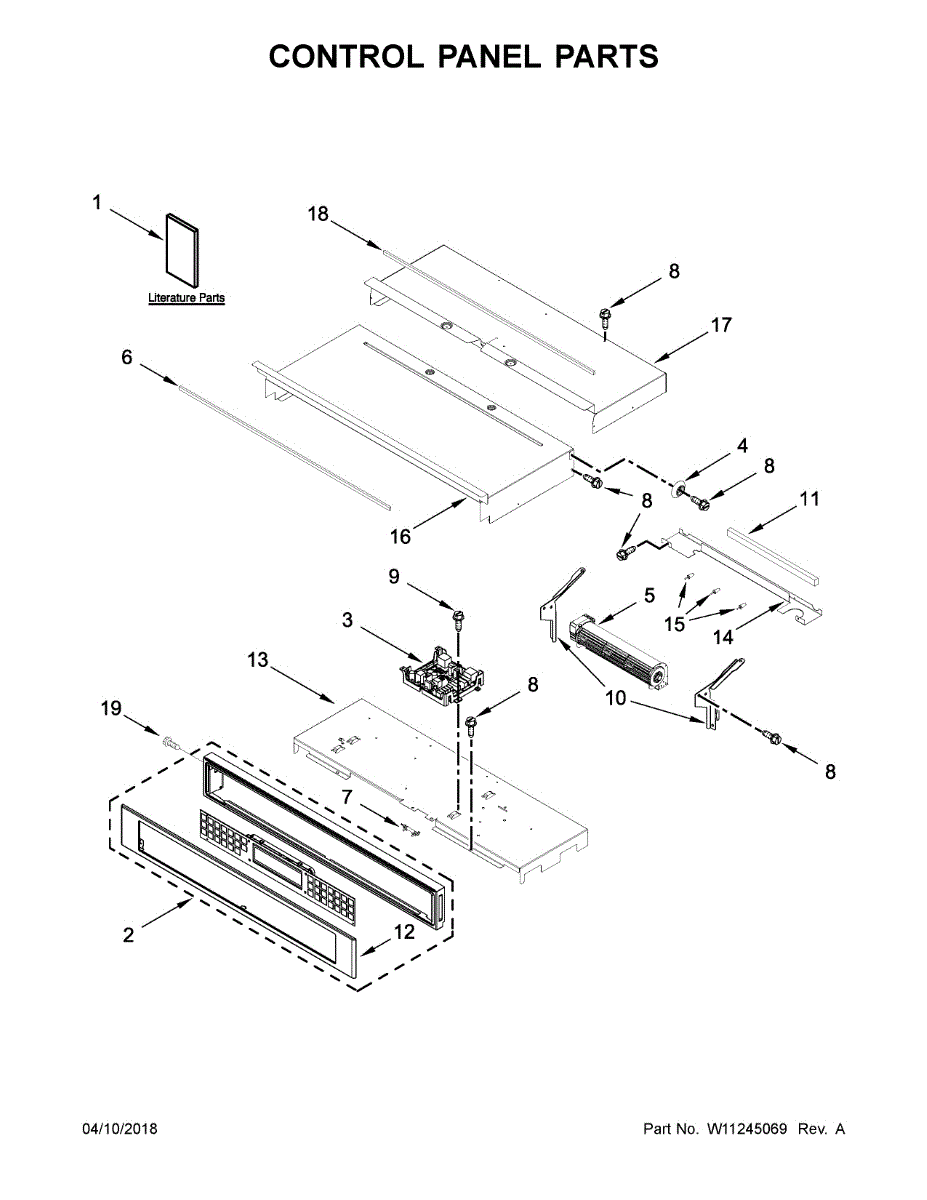

Parts for Kitchenaid KODE500ESS04: Control Panel Parts

This console is the outer control panel housing that holds the user interface and protects the controls. It restores the washer/dryer front control area and provides a finished surface for buttons and display elements. What it does:

• Covers and secures the appliance's control buttons, knobs, and display
• Provides the mounting surface for the control board and user interface components
• Replaces cracked, warped, or cosmetically damaged control areas
• Helps prevent moisture and debris from reaching internal electronics
• Can resolve issues where buttons don't seat or the panel is physically damaged

• Disconnect power and water supply before starting any repair to avoid shock or damage
• Removal may require detaching trim, screws, or clips; keep all fasteners for reassembly
• Handle with care to avoid damaging mounting tabs or connected wiring
• If the control board or user interface is attached, confirm connections before removing and consider having a service manual or diagrams available

The Console is an OEM replacement part for Whirlpool wall ovens. It is responsible for covering and protecting the control panel, providing a clear and organized interface for you to operate and control your oven. It features clearly labeled buttons and indicators that allow you to set the desired cooking temperature, select cooking modes, and control various oven functions.

A bad wall oven control panel overlay console assembly can occur due to wear and tear, physical damage, or malfunctioning electronic components. If you notice symptoms such as unresponsive buttons, a cracked or damaged overlay, or difficulty in selecting or adjusting settings, it may be time to replace the assembly.

Symptoms of a bad console include:

• Unresponsive buttons
• Cracked or damaged overlay
• Difficulty in selecting or adjusting settings

Repair your wall oven by replacing the faulty or damaged control panel overlay console assembly with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This control panel is the cabinet-mounted user interface that lets you select cycles and options and read status information, restoring normal control of your appliance. It replaces a damaged, cracked, or unresponsive front control surface. What it does:

• Houses the buttons, touchpads, and display used to select settings and start cycles
• Transmits user selections to the appliance control board so operations begin as commanded
• Common symptom fix: unresponsive or sticky buttons, missing/displayed characters, or visible damage to the panel
• Helps restore reliable routine operation when the original panel is cracked, burned, or otherwise faulty

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the panel and any glass/trim carefully to avoid damage; some fasteners may be hidden under trim pieces.
• Some models require removing the cabinet or front fascia to access mounting screws and electrical connectors.

This electronic control board is the brain of the appliance, coordinating power and communication between sensors, switches, and electrical loads. Replacing a failed board can restore proper start-up, cycle timing, and responsive controls. What it does:

• Manages program logic and cycle sequencing
• Distributes power to motors, valves, heaters, and fans as commanded
• Interfaces with the user controls/display and monitors sensors and switches
• Common failure symptoms: won't power on or start, unresponsive buttons, cycle won't advance or ends immediately, erratic lights/display, or recurring error codes

• 1 electronic control board

• Disconnect power at the breaker or unplug before servicing; if the appliance uses gas, shut off the gas supply
• Use ESD protection; handle the board by the edges and avoid touching circuitry
• Photograph wiring and move connectors one at a time to the matching terminals
• On some models, post-install programming/model code entry may be required—follow the unit's tech sheet or service instructions

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermal Fuse is an OEM part for Whirlpool electric wall ovens and ranges. It acts as a safety cutoff switch if excessive internal temperatures are reached.

Causes of a bad thermal fuse can involve repeated heating and cooling cycles degrading internal wiring contacts and insulation over many years. Physical damage during cleaning may also crack casing components.

Symptoms of a bad thermal fuse include:

• Inability to heat or maintain set temperatures
• Circuit breakers that trip unexpectedly
• Visible burn marks near internal wiring
• Electronic displays or clocks that no longer function

Replacing with a Whirlpool OEM thermal fuse safeguards cooking elements from overheating while preserving appliance dependability. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore wall oven models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: White

Color: Black Stainless

This control panel is the user-facing electronic interface that lets you operate your appliance's functions and settings. It replaces a damaged or unresponsive front control assembly so your appliance responds correctly to button presses and displays. What it does:

• Provides the touchpad/buttons and display used to select cycles, temperatures, and timers
• Relays user commands to the appliance's control board so functions start and stop as selected
• Common symptom fixes: unresponsive buttons, flickering or blank display, or intermittent command registration
• Restores normal control operation when the original panel is cracked, worn, or water-damaged

• One control panel assembly (user interface) as shown

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Handle the panel and display lens carefully to avoid scratches or damage
• Removal may require trim, bezels, or screws to be taken off; keep fasteners organized

Color: Stainless

Screw for side trim.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
