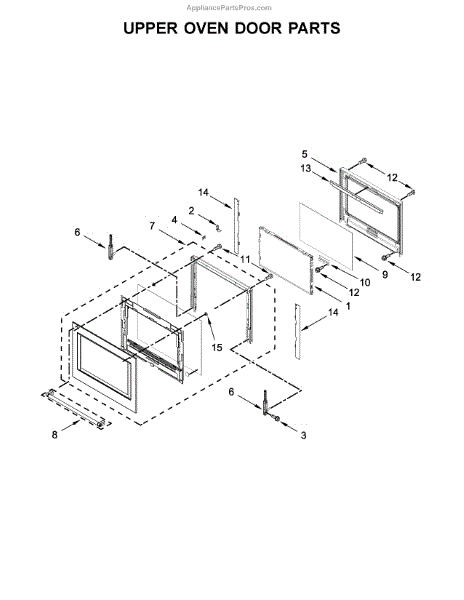

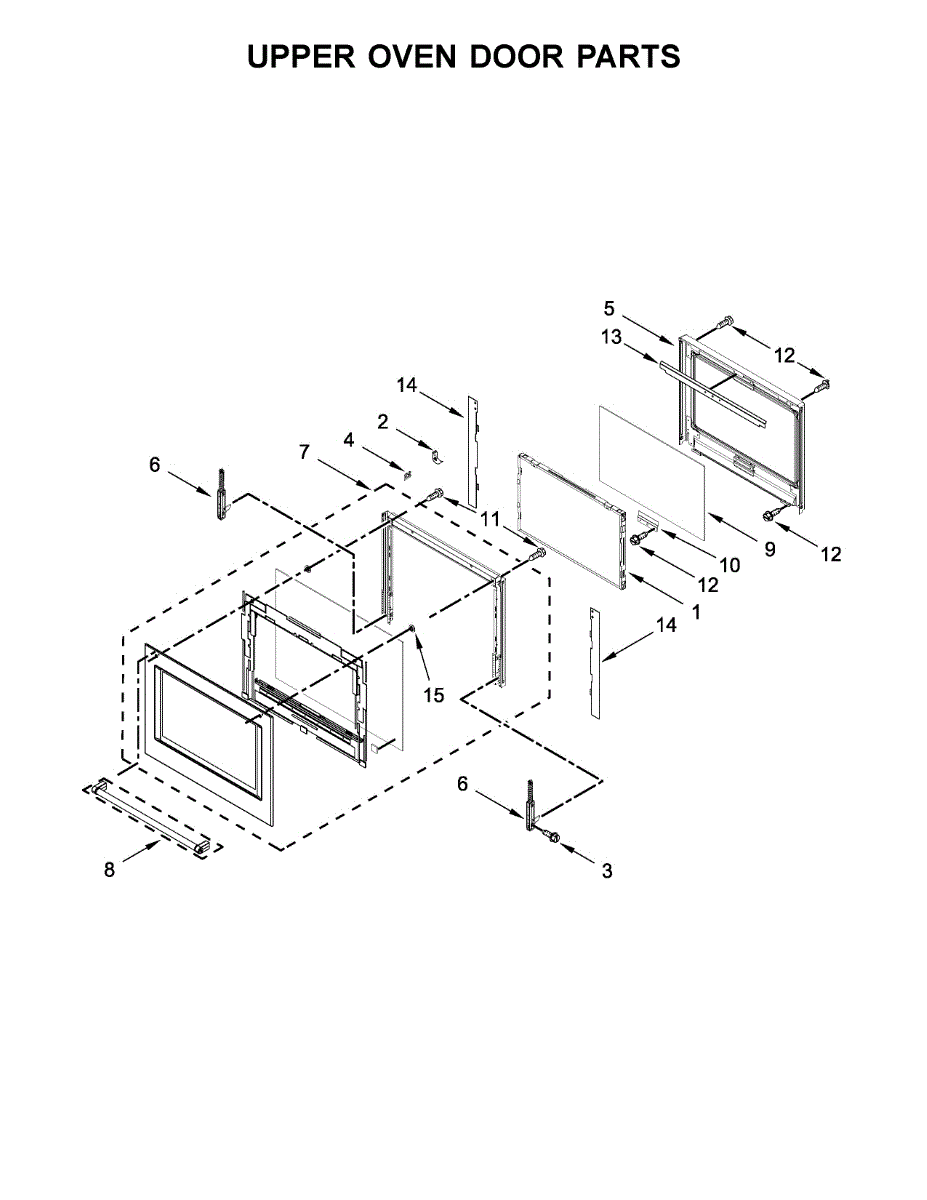

Parts for Kitchenaid KODE500ESS04: Upper Oven Door Parts

Replaces cracked, shattered, or discolored oven door glass. Restores clear viewing window and proper door seal. Includes frame assembly for easy install.

Secures oven glass panel in place and prevents movement or rattling. Replace this bracket if cracked, broken, or missing to stabilize glass and restore fit.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

Secures oven door glass to the door assembly, maintaining stability and proper seal. Replace if worn or broken to restore door alignment. Verify fit with your model.

Outer glass frame panel for wall oven doors. Replaces cracked, chipped, or broken door glass to restore appearance and visibility while maintaining heat.

This Door Hinge supports and pivots the appliance door for smooth operation and a square, reliable close. Replacing a worn hinge restores alignment so the door seals properly and opens and closes without binding or noise. What it does

• Supports door weight and provides the pivot point for opening and closing
• Maintains proper door alignment to help ensure an even gasket seal
• Restores smooth, consistent door movement
• Common symptoms: door droops or rubs, squeaks/grinds, or won't close flush

• Includes 1 door hinge

• Disconnect power before servicing
• Support the door and use a helper; remove contents as needed to reduce weight
• Mark hinge position and transfer any spacers/bushings in the same order
• Tighten mounting fasteners, then check alignment and gasket contact; adjust as needed

Color: White

Replacement black door glass for wall ovens. Installs on the front of the oven door. Order when your glass is shattered, cracked, or broken.

Door glass panel assembly for wall ovens. Replaces cracked, broken, or foggy outer door glass. Restores viewing window clarity and door appearance.

Replace your wall oven's cracked or broken door glass panel. This outer glass installs on the oven door frame, restoring appearance and safety.

Color: Stainless

The Door Handle is an OEM part for Whirlpool microwaves. It is an external component consumers interact with frequently for opening and closing access to the microwave interior.

Causes of a bad door handle can include normal wear and tear affecting functionality over thousands of uses. Thin plastics or loose hardware holding the handle can deteriorate more quickly.

Symptoms of a bad door handle include:

• The handle no longer latches the door securely
• Difficulty opening or closing the microwave door
• The handle coming loose or detaching completely
• Issues using locking/unlocking mechanisms

This OEM replacement Whirlpool door handle ensures smooth, dependable performance for the lifespan of the microwave. Its sturdy construction and precise fit maintain usability. This OEM part is also compatible with Maytag, Roper, Jenn-Air, Admiral, KitchenAid, and Frigidaire microwaves.


Inner door glass panel for wall ovens and ranges. Replace if cracked, scratched, broken, or missing. Installs between outer door layers for visibility.

Mounting bracket that secures the glass panel in your wall oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place.

Fastens panels, brackets, trim, and hardware in your oven or range. Replace missing, stripped, or damaged screws to eliminate rattles and secure components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Secures and aligns the glass panel in your oven door assembly. Replace this bracket if it's cracked, broken, or missing to restore proper door fit.

Secures the glass panel to your wall oven door frame. Replace this bracket if it's cracked, broken, or missing to properly support the door glass.

Replacement glass door bracket for wall ovens. Secures the glass panel to the door frame. Replace if bracket is cracked, broken, or missing parts.

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer
