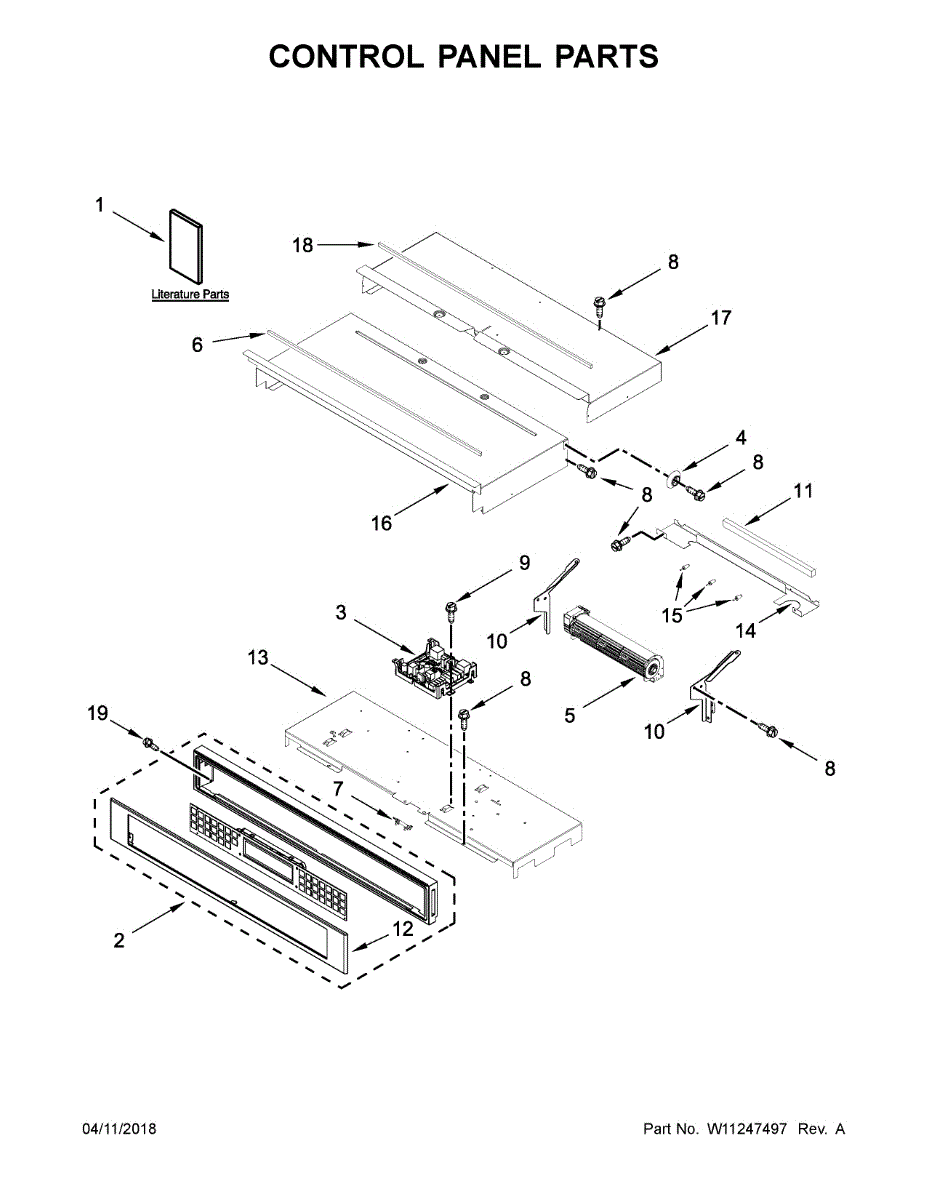

Parts for Kitchenaid KODE507EBL04: Control Panel Parts

This membrane switch touchpad is the user interface for the appliance control panel, restoring responsive button/soft-touch control and visible labels for operating oven features. It replaces a worn, unresponsive, or damaged control overlay to regain normal panel input. What it does:

• Provides the touch-sensitive buttons and labeled overlay for the range/oven control board
• Sends user commands to the control module when pressed; fixes unresponsive or intermittent button input
• Restores worn or faded button graphics so controls are readable
• Helps resolve errors caused by stuck or damaged touchpad contacts (when used with a tested control board)

• Disconnect power before servicing to avoid electrical shock or damage
• Replace only after confirming the control board and ribbon connector are intact and compatible
• Handle the switch carefully; avoid bending or creasing the membrane and keep contacts clean

This electronic control board is the brain of the appliance, coordinating power and communication between sensors, switches, and electrical loads. Replacing a failed board can restore proper start-up, cycle timing, and responsive controls. What it does:

• Manages program logic and cycle sequencing
• Distributes power to motors, valves, heaters, and fans as commanded
• Interfaces with the user controls/display and monitors sensors and switches
• Common failure symptoms: won't power on or start, unresponsive buttons, cycle won't advance or ends immediately, erratic lights/display, or recurring error codes

• 1 electronic control board

• Disconnect power at the breaker or unplug before servicing; if the appliance uses gas, shut off the gas supply
• Use ESD protection; handle the board by the edges and avoid touching circuitry
• Photograph wiring and move connectors one at a time to the matching terminals
• On some models, post-install programming/model code entry may be required—follow the unit's tech sheet or service instructions

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermal Fuse is an OEM part for Whirlpool electric wall ovens and ranges. It acts as a safety cutoff switch if excessive internal temperatures are reached.

Causes of a bad thermal fuse can involve repeated heating and cooling cycles degrading internal wiring contacts and insulation over many years. Physical damage during cleaning may also crack casing components.

Symptoms of a bad thermal fuse include:

• Inability to heat or maintain set temperatures
• Circuit breakers that trip unexpectedly
• Visible burn marks near internal wiring
• Electronic displays or clocks that no longer function

Replacing with a Whirlpool OEM thermal fuse safeguards cooking elements from overheating while preserving appliance dependability. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore wall oven models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
