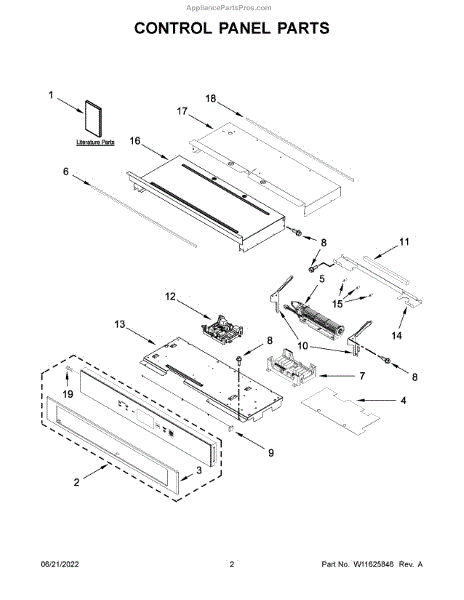

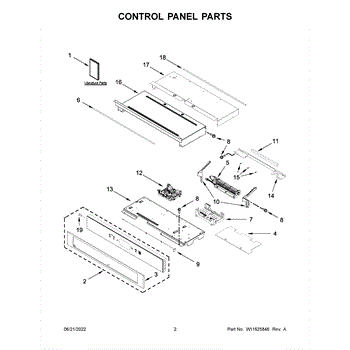

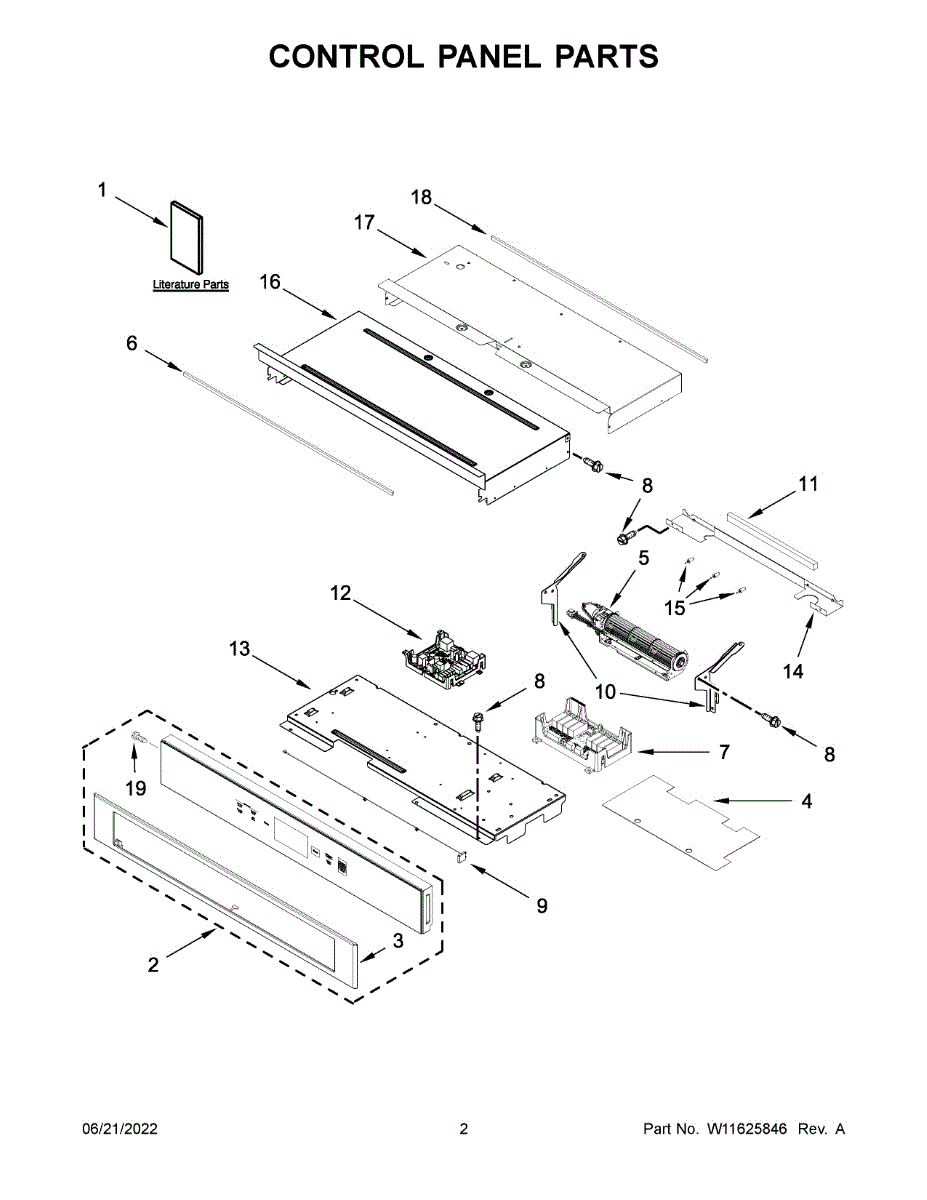

Parts for Kitchenaid KODE900HSS20: Control Panel Parts

Color: Black Stainless

Color: Stainless

This electronic control board is the main controller that manages a range of appliance functions and user inputs, restoring reliable electronic operation and helping the unit respond correctly to selected cycles and settings. What it does

• Receives input from the control panel and sends signals to motors, valves, heaters, and sensors
• Replaces a failed or unresponsive main controller that causes unresponsive buttons or dead controls
• Can correct intermittent or erratic operation caused by damaged circuitry or failed components
• May resolve error codes or cycle failures tied to control malfunctions

• One electronic control board

• Disconnect power before attempting any service to avoid electrical shock
• Handle board by edges and avoid touching component leads; use ESD protection if available
• Verify wiring harness connections and mounting orientation before reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This electronic control board assembly replaces the appliance's main control module to restore proper cycle selection and timed functions. It provides reliable control of user inputs and electronic signals for normal operation. What it does:

• Manages cycle selection, timing, and user-interface commands
• Processes sensor and switch signals for proper appliance operation
• Restores responsive touch/buttons and display-driven controls
• Helps stop erratic or non-starting behavior caused by a failed control board

• Disconnect power before starting; verify power is removed at the breaker or unplug the appliance
• Handle the board carefully and avoid touching circuitry; use ESD precautions when possible
• Installation typically requires removing the control panel and securing the board with existing fasteners

This wire harness is a factory-style main wiring assembly that delivers power and control signals between the appliance control and internal components, restoring proper electrical connections for reliable operation. What it does

• Carries power and control signals between the control board and motors, valves, heaters, sensors, or switches.
• Replaces damaged or frayed wiring that can cause intermittent operation or loss of function.
• Restores proper connector fit and routing to prevent shorts or connector overheating.
• Helps address symptoms like non-starting cycles, unresponsive controls, or components that do not run.

• Disconnect all power (unplug or shut off breaker) before starting any repair.
• Note or photograph the original routing and connector positions to ensure correct reinstallation.
• Disconnect and reconnect all connectors fully; avoid pulling on wires—use connector bodies.
• Inspect mating connectors and mounting points for damage before powering the appliance; test operation after reassembly.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
