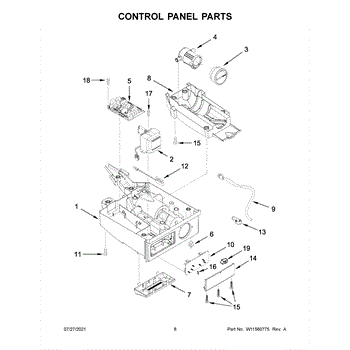

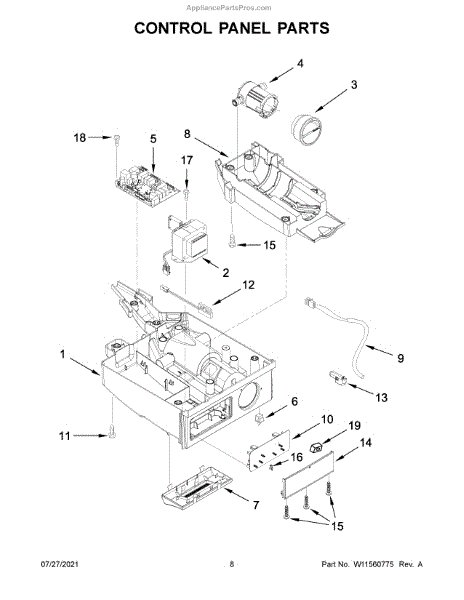

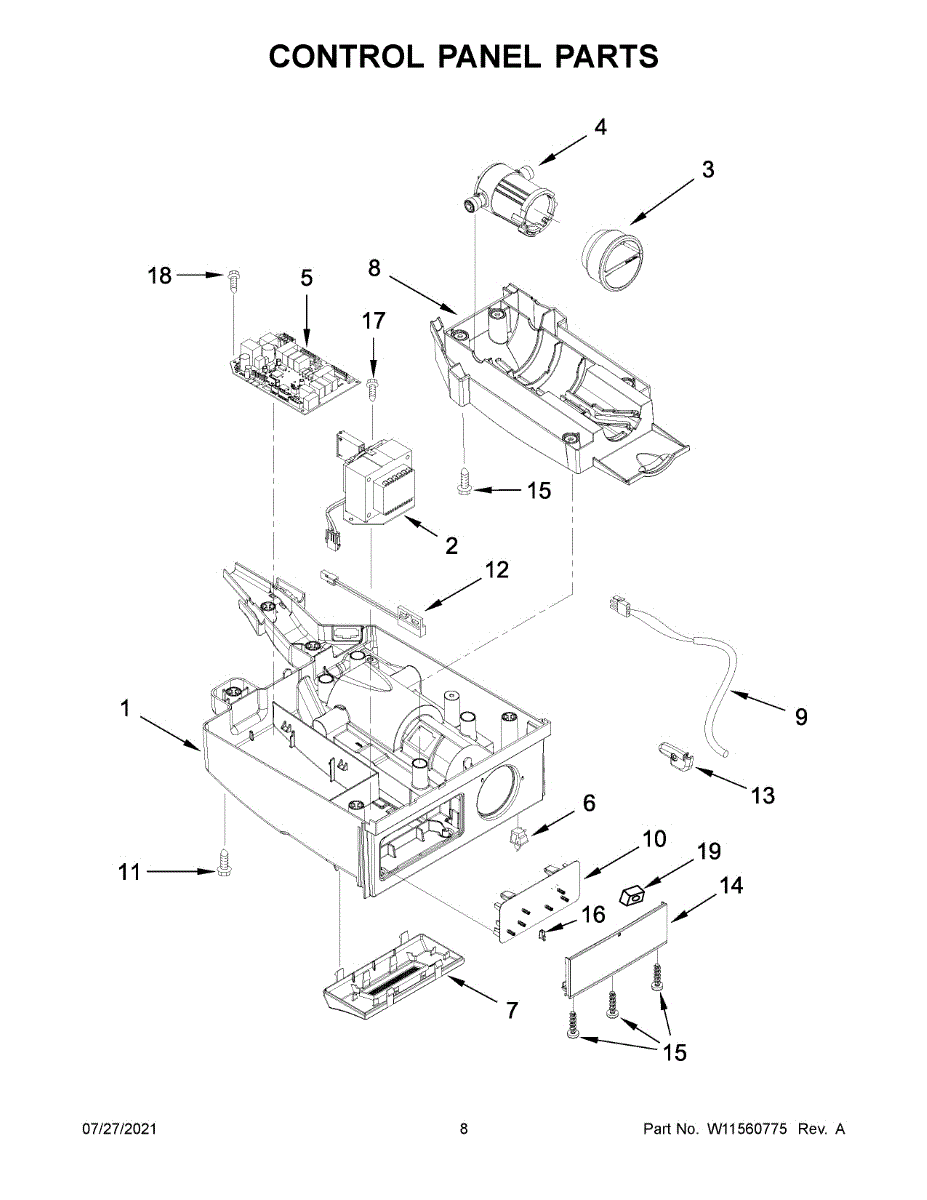

Parts for Kitchenaid KUIX335HPS01: Control Panel Parts

This transformer assembly converts household AC power to the specific voltage required by the appliance's internal circuits, helping restore stable operation of affected functions. Replace a failed transformer to resolve power delivery issues and prevent repeat fuse or breaker trips. What it does

• Steps voltage up or down to supply proper power to designated circuits
• Delivers stable power to components such as controls, relays, or other loads
• Failure symptoms may include: dead display or no operation, certain features not working, repeated fuse/breaker trips, electrical odor, or abnormal humming

• 1 transformer assembly

• Disconnect power before servicing; capacitors in the appliance can retain a dangerous charge—discharge per the service manual
• Label/photograph wiring and transfer one lead at a time to the new transformer
• Transfer the original mounting hardware/brackets from the old unit
• If a fuse opened, diagnose and correct the underlying cause before reapplying power

This replacement filter cap secures the refrigerator water-filter housing and helps maintain a tight seal for proper water flow. It restores safe operation after a damaged or missing cap so the filter stays locked in place. What it does:

• Secures the water-filter housing and holds the cartridge in position
• Helps maintain a watertight seal to prevent leaks around the filter area
• Ensures proper water flow through the filter housing
• Commonly replaced for visible damage, cracks, or when the filter won't lock in

• Disconnect water supply to the appliance before servicing
• Remove the old cap and inspect the housing for debris or damage
• Hand-tighten the new cap to engage the filter locking mechanism; avoid overtightening
• After installation, restore water and check for leaks around the cap

The Water Filter Housing is an OEM part for Whirlpool ice machines. It holds and secures the water filter, ensuring clean and filtered water for your ice machine. This water filter housing provides a tight seal to prevent leaks and maintain the filtration system.

A bad water filter housing can occur due to wear and tear over time or damage caused by improper installation or mishandling. If you notice symptoms such as water leaks around the filter housing, difficulty in installing or removing the water filter, or a loose or damaged housing, it may be time to replace this part.

Symptoms of a bad water filter housing include:

• Water leaks around the filter housing
• Difficulty in installing or removing the water filter
• Loose or damaged housing

Restore your ice machine by replacing the faulty or damaged water filter housing with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Control Board is an OEM replacement part for Whirlpool ice machines. It governs all electrical functions and ensures proper icemaking operation.

Causes of a bad control board include water damage shorting circuits, wear over time degrading electrical connections, and failures in sensor components.

Symptoms of a faulty control board include:

• Ice maker not operating or turning on at all
• Erratic operation with inconsistent ice production
• Fault or error codes displayed
• Electromechanical noises coming from the electronics

Compatible with additional brands like Maytag, KitchenAid, and Roper icemakers as well, it ensures reliable ice production for entertaining needs.

The Door Switch Assembly is an OEM replacement part for Whirlpool refrigerators. It is responsible for turning the light on when you open the refrigerator door and turning it off when the door is closed. It ensures that the light functions properly, allowing you to easily locate and retrieve items from your refrigerator.

Symptoms of a faulty door light switch include:

• Interior light not turning on when the door is opened
• Interior light staying on even when the door is closed

A bad door light switch can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as the interior light not turning on or off when you open or close the door, it may be time to replace the door light switch.

This Whirlpool replacement part is also compatible with Sears/Kenmore models.


This filter cover secures the appliance's water filter in its housing to help maintain a proper seal and direct water flow. It replaces a cracked, missing, or damaged cover so the filter can function correctly. What it does:

• Holds the water filter in place to ensure a reliable seal and prevent bypass
• Directs water flow through the filter for proper filtration
• Helps prevent leaks or drips at the filter housing when intact
• Replaces covers that are cracked, warped, or unable to latch securely

• Turn off water supply and unplug the appliance before replacing the cover.
• Remove the old cover by releasing any tabs or fasteners; align new cover and press until it snaps or latches.
• Use basic hand tools only; do not force parts—if it doesn't seat easily, check correct orientation.
• If you see ongoing leaks after installation, re-check the filter seating and housing for damage.

The Thermistor is an OEM replacement part for Whirlpool ice makers. It is a temperature sensor that plays a crucial role in the proper functioning of the ice maker.

Symptoms of a need to replace the ice maker thermistor:

• Ice maker not producing any ice or producing insufficient quantities
• Ice cubes freezing incompletely or with an irregular shape
• Error codes or warning lights related to the ice maker or temperature sensing

Causes of a faulty ice maker thermistor can include physical damage, moisture exposure, or general wear and tear over time, affecting its ability to accurately measure and report temperatures.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door switch completes the circuit that tells the appliance the door is closed so cycles can start or continue. It replaces a worn or non-responsive door switch to restore reliable door-sensing operation. What it does

• Detects when the door is closed and signals the control to start or resume a cycle.
• Stops operation or prevents cycle start when the door is open or the switch fails.
• Commonly replaces a switch that is stuck, intermittent, or not registering door closure.
• Helps resolve symptoms like appliances not starting, stopping mid-cycle, or failing to latch electronically.

• One door switch (single push-button style), exact OEM configuration as shown.

• Disconnect power (unplug or shut off breaker) before accessing the switch.
• Access may require removing a panel or inner door assembly.
• Handle connectors carefully; remove and reconnect wiring harnesses by the plug, not the wires.

This clamp secures a flexible appliance hose to prevent leaks and keep connections tight. It provides a simple, corrosion-resistant hold to restore proper water flow and stop drip points at hose joints. What it does:

• Secures a hose to a barb, nipple or fitting to prevent water leaks
• Keeps hose from slipping off during normal use or pressure changes
• Helps stop visible dripping or pooling at the hose connection
• Restores a proper seal when a worn or corroded clamp fails

• Turn off power and shut off water supply before servicing the appliance
• Slide clamp over hose, position on the fitting, then compress or tighten per clamp style
• Replace any hoses or fittings that are cracked or heavily corroded for a reliable repair

This escutcheon is the trim piece that surrounds and protects the appliance control panel, restoring a finished look and helping keep the controls free of spills and debris. It's a simple cosmetic and protective replacement part. What it does:

• Covers and protects the control area from splashes, crumbs and everyday wear
• Provides the finished aesthetic around buttons, displays and knobs
• Helps keep control components securely positioned and accessible
• Restores a worn, cracked or discolored control trim to like-new appearance

• Disconnect power to the appliance before beginning any work
• Remove any knobs or fascia pieces as needed to access mounting fasteners
• Handle trim carefully to avoid scratching; reinstall using original screws/clips when possible

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

This is a genuine replacement screw used to secure components and panels on compatible Whirlpool appliances, restoring a firm, vibration-free fit. It replaces worn or missing fasteners to help keep parts aligned and stable. What it does

• Secures panels, brackets, or internal components to prevent shifting or rattling
• Replaces stripped, rusted, or missing screws that cause loose parts or noise
• Helps maintain proper alignment of mounted components for safe operation
• Useful when reassembling repair work or after removing parts for service

• One replacement screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power before servicing electrical appliances; follow OEM safety guidance
• If screw threads or holes are damaged, replace both screw and mating hardware as needed

6 - 19 x .250

This damper controls airflow into the fresh-food section, helping maintain consistent refrigerator temperatures and improving cooling balance. It replaces a worn or broken air inlet damper to restore proper cold-air distribution. What it does:

• Regulates cold-air flow from the freezer to the fresh-food compartment
• Helps maintain even temperatures and prevent warm spots in the fridge
• Commonly replaced when damper sticks, is broken, or fails to open/close smoothly
• Works with the refrigerator's temperature control to modulate airflow

• Disconnect power to the appliance before beginning any service
• Access may require removing interior panels or shelving; follow the OEM service instructions
• Inspect surrounding seals and mounts; replace if cracked or damaged
