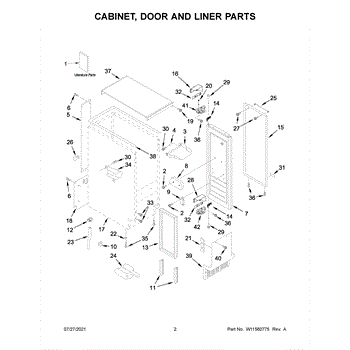

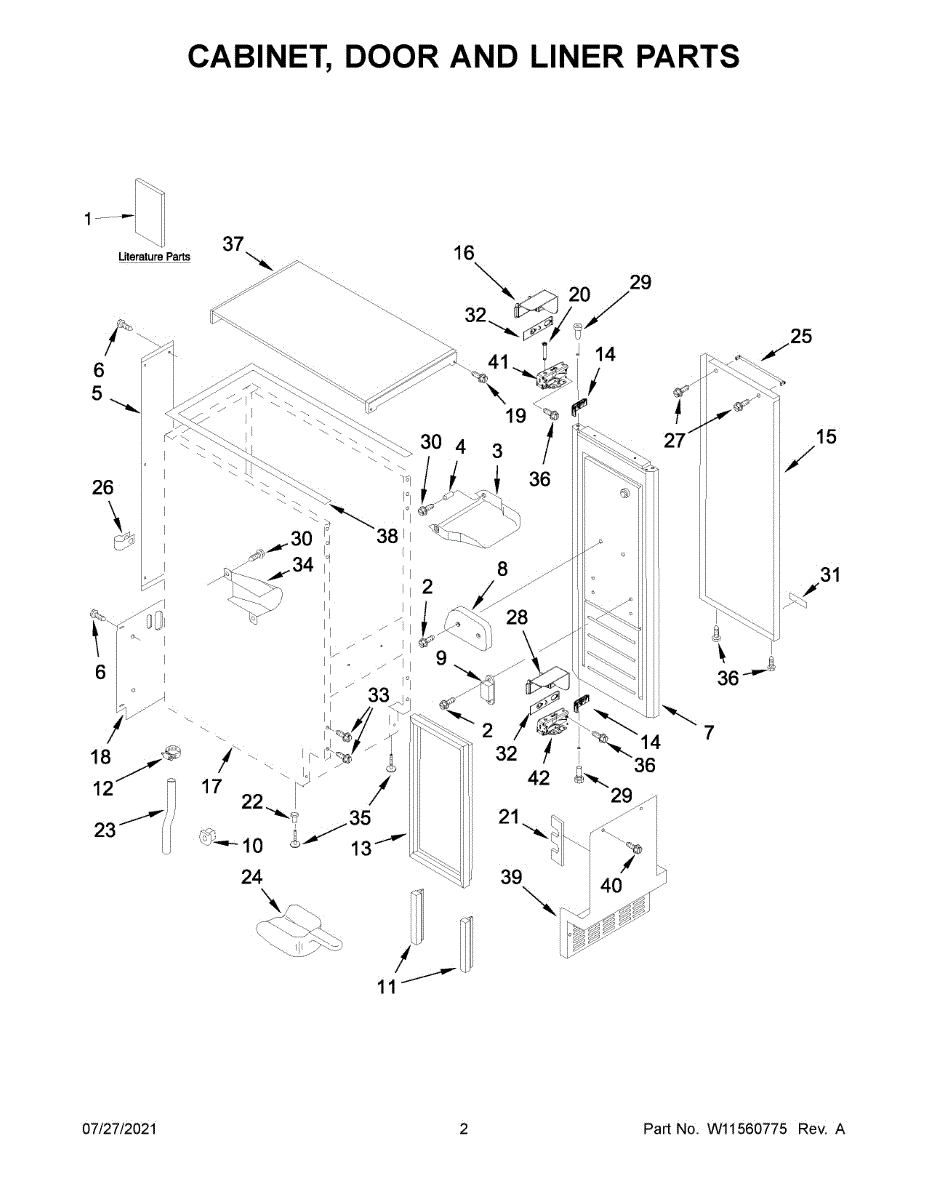

Parts for Kitchenaid KUIX335HPS01: Cabinet, Door And Liner Parts

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

This catch assembly secures the appliance door in the closed position, restoring proper latching and preventing unwanted openings. It's a direct-fit replacement designed to match the original OEM function. What it does

• Holds the door closed so seals stay engaged and the appliance maintains internal temperature
• Prevents the door from popping open or rattling during operation or transit
• Helps stop issues like airflow loss, frequent door alarms, or intermittent cycling caused by a loose latch
• Matches OEM fit and mounting points for straightforward replacement

• One catch assembly

• Disconnect power (and water if applicable) before starting any repair
• Remove the door panel or trim required to access the existing catch; keep screws and fasteners organized
• Compare the new part to the old part before installation to ensure fit and orientation
• After installation, cycle the door several times to ensure secure engagement and proper alignment

This 15-inch door gasket is a direct-replacement sealing gasket that restores a tight door seal to the appliance, helping reduce heat and air leaks for more consistent temperature control and improved efficiency. What it does:

• Seals the door edge to prevent loss of heat, steam, or cooled air during operation.
• Helps maintain consistent internal temperature for proper cooking/drying/operation.
• Common symptoms it can fix: visible cracks, tears, flattening, gaps, or a door that does not close flush.
• Reduces stray heat or moisture around the appliance that can indicate a worn seal.

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the old gasket carefully and inspect the sealing channel for debris or damage before installing the new gasket.
• Start installation at the top and press the gasket evenly into the channel, working around the door so the flange seats fully; replace any fasteners or clips as needed.
• Do not stretch, trim, or modify the gasket unless OEM instructions explicitly direct it; the appliance diagram for orientation.

This wrap door is the outer panel that restores the appliance's front appearance and protects internal door components. It replaces a dented, cracked, or cosmetically damaged door surface to make the appliance look and seal properly. What it does:

• Covers and protects the door frame and internal components from damage and wear
• Restores a smooth, finished exterior after dents, cracks, or peeling paint
• Helps maintain proper door alignment and contact with the cabinet trim
• Reduces air and moisture gaps caused by warped or damaged outer panels

• Remove power (and gas if applicable) before starting any door repair
• Handle the panel carefully to avoid scratching the finish during installation
• Follow the appliance manufacturer's service instructions for disassembly and reassembly
• If hinges, screws, or clips are damaged, replace them with the correct parts for a secure fit

The Hinge is an OEM component specifically designed for Whirlpool under-counter ice machines. Located internally at the join of the service door and ice bin compartment, the precisely calibrated hinge reliably mounts the access points.

Machined from corrosion-resistant stainless steel, each hinge incorporates dual raised spring-loaded pivot pins that oscillate within lube-filled bushings. Their consistent torque mechanism provides balanced movement to the heavy service door.

Symptoms of a bad hinge include:

• Binding or sluggish service door movement
• Excess vibration during opening/closing cycles
• Premature failure of door seals from misalignment

Replace with this authentic OEM Whirlpool hinge to maintain smooth access for maintenance. Rely on its sustain calibration to support the weight of large service panels and consistently produce crystalline ice. Compatible with additional undercounter brands including Manitowoc, Scotsman, and Follett.

This cover unit is the outer housing that protects internal components and keeps the appliance sealed and looking finished. It replaces a damaged or worn cover to restore proper protection and appliance appearance. What it does:

• Protects internal parts from dust, debris and incidental contact
• Helps maintain proper airflow and sealing where applicable
• Restores finished appearance of the appliance cabinet or control area
• Commonly replaced when the original cover is cracked, bent, or missing

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; support the appliance parts to prevent scratches or damage
• Handle edges carefully; some covers may have sharp edges or tabs
• Refer to OEM instructions for exact steps and fastener locations

This Tube-Drain is the replacement drain tube that routes and removes water from the appliance, helping restore proper drainage and reduce leaks. It replaces a damaged, cracked, or clogged drain tube to get your appliance back to normal operation. What it does:

• Channels wastewater away from the appliance to the drain system
• Replaces cracked, split, or deteriorated tubing that can cause leaks
• Helps resolve symptoms like water pooling under the appliance or poor drainage
• Restores a secure connection between internal drain components

• Disconnect power and shut off any water supply before beginning service
• Inspect adjacent hoses and clamps; replace any damaged hardware for a reliable seal
• Re-seat tubing fully onto fittings and secure with appropriate clamps to prevent leaks
• Run a water/drain test after installation and check for leaks before returning the appliance to service

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


This refrigerator door handle provides a reliable grip for opening and closing the fridge door and restores a finished look after the original handle is cracked, loose, or damaged. It's a direct-fit replacement designed for easy swap-out. What it does:

• Restores secure, comfortable grip for normal door operation
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Helps prevent door damage from continued use of a compromised handle
• Matches original mounting points for proper alignment and function

• Turn off power to the appliance or unplug before starting any service that may expose wiring or lights
• Use basic hand tools; save original screws and hardware when possible
• Support the door while removing/installing the handle to avoid stress on hinges

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

Size: 8-18 x 3/4 inch.

Size: 8-18 x 5/8 inch.

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This scoop holder is a replacement freezer-door accessory that keeps the ice scoop secure, hygienic, and within easy reach. It restores the built-in storage location so your scoop stays put and ready when you need it. What it does:

• Provides a dedicated clip/mount to hold the ice scoop on the freezer door or bin
• Keeps the scoop off surfaces to reduce contamination and dripping
• Prevents the scoop from falling out when opening or closing the door/bin
• Restores proper storage when the original holder is cracked, broken, or missing

• Typically snaps into the designated slot on the freezer door or bin; no special tools required for most installs
• Align the holder and press firmly until it clicks into place; replace cracked or broken surrounding tabs if necessary
• Handle gently to avoid damaging door bins or trim during installation

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

This 10-32 x 1/2 inch machine screw (pan head) secures panels, brackets, and components on compatible appliances for a reliable mechanical connection. It replaces missing or damaged mounting screws to restore proper fit and reduce vibration. What it does:

• Fastens chassis panels, mounting brackets, and small components where a 10-32 thread is required
• Restores secure attachment to stop rattling, misalignment, or loose trim
• Provides the correct length and thread engagement for a stable mechanical joint
• Works with metal-to-metal or threaded-inserts commonly used in appliance assemblies

• One 10-32 x 1/2 in. pan-head machine screw (quantity: 1)

• Disconnect power to the appliance before accessing internal panels or components
• Use the correct Phillips or hex driver sized for the pan head to avoid stripping
• Thread carefully into existing threads or a compatible insert; do not force if resistance is unusual
• Tighten snugly but avoid over-torquing to prevent thread damage or strip-out

This is a replacement front door assembly that restores safe access and proper sealing for your appliance. It replaces a damaged, cracked or warped door so the appliance can open and close correctly and maintain temperature control. What it does:

• Replaces a cracked, dented or otherwise damaged front door to restore proper closure
• Helps maintain internal temperature and prevent heat or moisture loss during operation
• Restores a secure fit so the latch and hinges can engage correctly
• Eliminates rattling or loose movement caused by bent or broken door components

• One complete front door assembly as shown

• Disconnect power and, if applicable, water before starting any repair
• Door assemblies can be heavy or awkward—use a second person to help prevent drops or injury
• Handle glass panels carefully; wear gloves and eye protection
• Retain all screws and brackets from the old door to ensure proper fit

The Grille is an OEM part for Whirlpool standalone ice makers. It is the outer covering that protects and secures the entire ice making assembly.

Causes of a bad grille can include impact or handling damage over time. Punctures, dents, or cracks allow for potential leak points or entry of contaminants that can disrupt operations.

Symptoms of a bad grille include:

• Water or moisture inside the ice maker assembly
• Decreased ice production or output over time
• Loose or improper fitting of the grille on the unit
• Rattling or noises from an improperly secured grille

This OEM part is also compatible with models made by Kenmore, Frigidaire, and KitchenAid.

This replacement screw secures appliance panels and small components, restoring proper fit and stability. Use it to replace a missing or damaged fastener so doors, panels, or brackets stay aligned and rattle less. What it does

• Fastens panels, brackets, or trim pieces to the appliance frame
• Stops loose or rattling panels caused by a missing or stripped screw
• Helps restore secure mounting for switches, controls, or trim
• Suitable as a direct replacement when the original screw is lost or damaged

• Disconnect power before working on any electrical appliance
• Use the correct driver bit to avoid stripping the head
• Align parts before tightening and snug—do not overtighten to prevent damage
• Keep any removed hardware organized for reassembly

This articulated bottom hinge assembly replaces a worn or damaged refrigerator hinge to restore smooth door movement and alignment. It helps doors open and close reliably, reducing sagging and uneven sealing. What it does:

• Supports the lower corner of the refrigerator door and enables smooth pivoting motion
• Restores proper door alignment to help maintain an even freezer/refrigerator seal
• Commonly replaced when doors sag, bind, or make grinding/noisy movement
• Works as the mechanical pivot point that transfers door weight to the cabinet

• One articulated bottom hinge assembly

• High-level replacement; disconnect power and empty or secure the door before starting
• Use appropriate tools and handle ties or springs with care to avoid pinching
