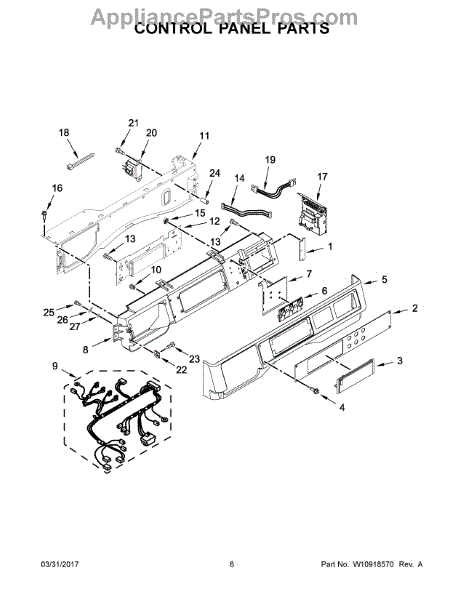

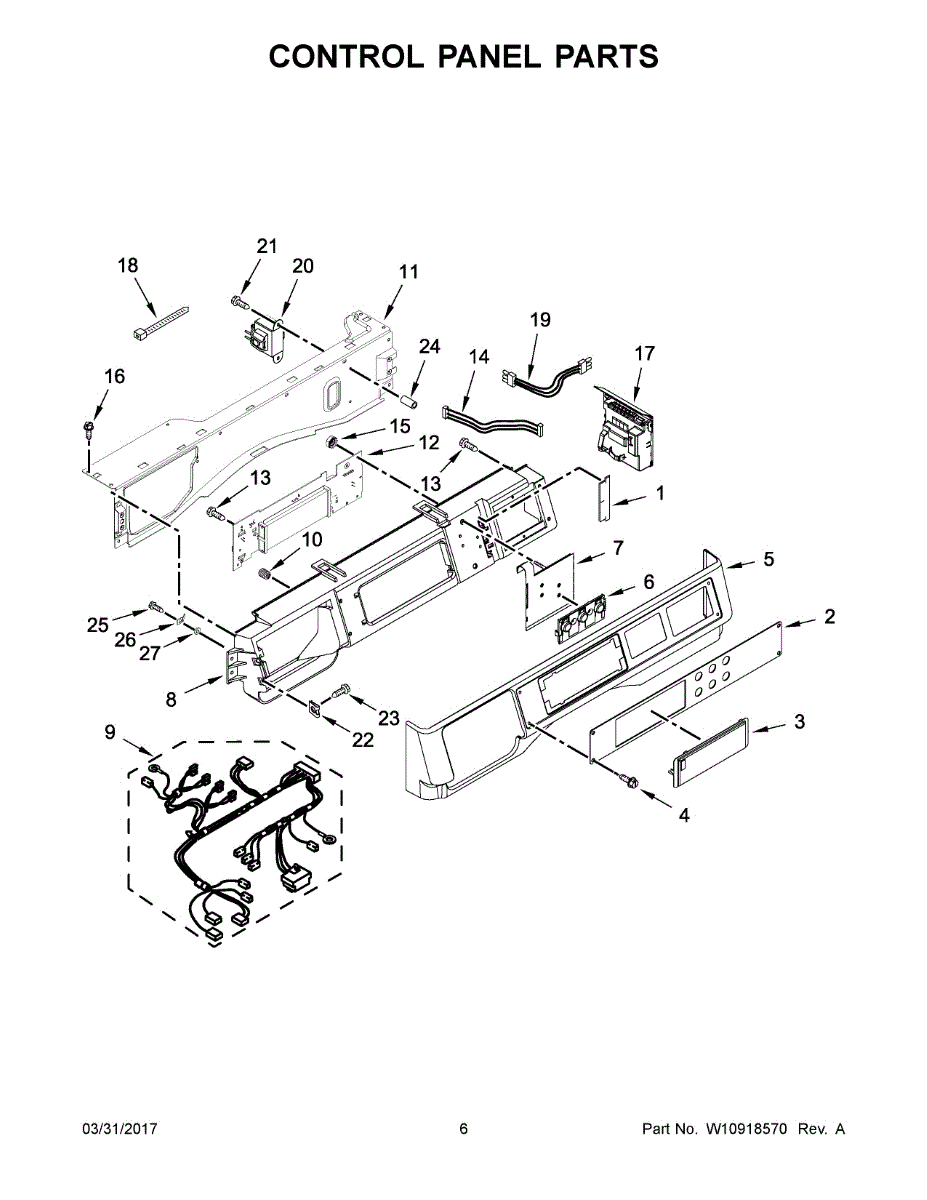

Parts for Whirlpool CHW9150GW0: 04 - Control Panel Parts

This replacement commercial cover protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded from debris and accidental contact so the unit operates safely and looks finished. What it does:

• Shields internal controls and wiring from dust, spills, and accidental contact
• Restores damaged or missing exterior panels for a clean, professional appearance
• Helps prevent short circuits and component exposure caused by cracked or broken covers
• Useful when the original cover is dented, cracked, or no longer secures properly

• One commercial cover

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic hand tools are typically required; follow the service manual for fastener locations and order
• Inspect mounting tabs and surrounding components; replace any broken fasteners for a secure fit

This commercial-grade screw secures appliance panels and components to restore proper fit and reduce vibration. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned for safe, stable operation. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Prevents rattling or movement caused by loose or missing screws
• Restores secure attachment of control housings and access panels
• Helps maintain proper alignment of parts to avoid wear or interference

• Use the matching driver and do not overtighten to avoid stripping threads
• Replace only with the same screw type and size for secure fit
• Disconnect power and follow appliance safety precautions before servicing
• If threads are damaged, replace the mating nut or insert as needed

This replacement button restores a clean, responsive press on your appliance's control. Replace a cracked, worn, or missing button cap so the underlying switch or mechanism can be activated reliably again.

• Provides the user-facing actuator for a specific control or feature
• Transfers your press to the switch behind the console or panel
• Helps correct sticking, binding, or inconsistent feel when pressed
• Typical signs include a cracked or missing cap, loose fit, or difficulty engaging the function

• Disconnect power to the appliance before servicing
• Access the control area; release retaining tabs or fasteners and note orientation
• Transfer any reusable hardware from the original part
• Reassemble and test the button for proper travel and function before finalizing

This replacement switch restores dependable on/off control for the specific function it serves in your appliance. It helps resolve unresponsive, stuck-on, or intermittent operation of the associated light, fan, motor, or heating element.

• Opens and closes the circuit to start or stop the designated component in your model
• Failure can cause the function to not turn on, stay on, or work only intermittently
• Address issues like a loose/broken actuator or burnt internal contacts
• Direct-fit replacement designed to accept the original wiring and mounting

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Ensure terminals are fully seated and the switch is securely mounted
• Restore power and test operation before final reassembly

The Console is an OEM part for Whirlpool washing machines. It is responsible for housing the control buttons and display that allow users to select wash cycles and settings. Proper operation of the washing machine relies on communication between the console panel and the washer's internal components through electronic components located within the panel.

Causes of a bad console include damage such as cracks or chips in the material, non-responsive or malfunctioning buttons, or a dysfunctional display. It is important to pay attention to any warning signs as continued use could potentially put more stress on the washer's electronic control board.

Symptoms of a bad console are:

• Unresponsive or sticking buttons
• Faded, pixelated, or blank display
• Physical damage visible on the surface

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board replaces the appliance's main control board to restore control panel functions and cycle management. It provides the logic and user-interface connections the appliance needs to operate correctly. What it does:

• Receives and processes user inputs from the control panel so settings and cycles run as selected
• Controls timing, relay outputs and cycle sequencing for proper operation
• Can cause unresponsive buttons, no display, or incorrect cycles when faulty
• Stops intermittent starts or unexpected shutdowns tied to control board failure

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the board by its edges and avoid touching components; use ESD protection when available
• Remove necessary panels and disconnect wiring harnesses carefully; note connector locations before removal

This wire harness connects the dryer's control panel and internal components, restoring reliable signal and power routing for normal operation. It replaces a damaged or worn harness to help resolve control failures and intermittent function. What it does:

• Transfers power and control signals between the control/console and internal components
• Commonly used when buttons, lights, or display do not respond or operate intermittently
• Replaces harnesses with broken wires, frayed insulation, or melted connectors
• Helps stop shorting or erratic behavior caused by damaged wiring

• One replacement wire harness as shown

• Disconnect all power (unplug appliance or switch off circuit breaker) before starting
• Label or photograph connector locations before removal to ensure correct reconnection
• Route harness carefully to avoid sharp edges and pinch points; secure with existing clips
• If connectors are damaged, replace them rather than reusing to avoid poor electrical contact

Size: 8-18 x 1/2 inch.

Control transformer that provides stable low-voltage power to the washer's control and user interface, ensuring reliable electrical signaling so cycles start and the machine operates correctly. What it does:

• Supplies the control board and user controls with the required control voltage.
• Restores power to displays, timers, and electronic controls when the transformer has failed.
• Common symptom: machine is dead, display is blank, or cycles won't start.
• Can cause intermittent power or control glitches before full failure.

• Disconnect power before servicing to avoid shock—follow lockout/tagout if required.
• Compare part number and mounting style to the original before installation.
• Handle terminals and wiring carefully; secure all connections and mounting hardware.

Size: 8-32 x 1/4 inch.
