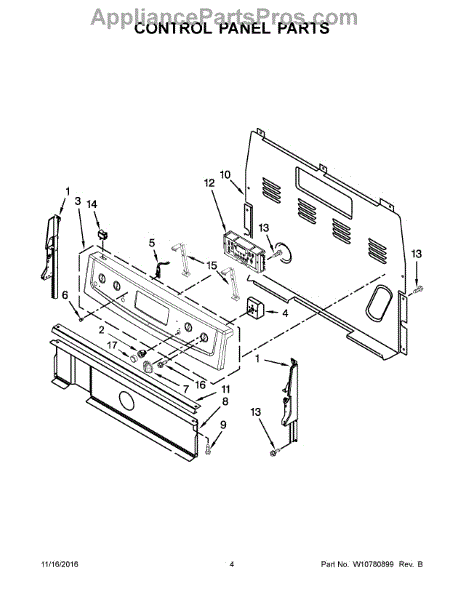

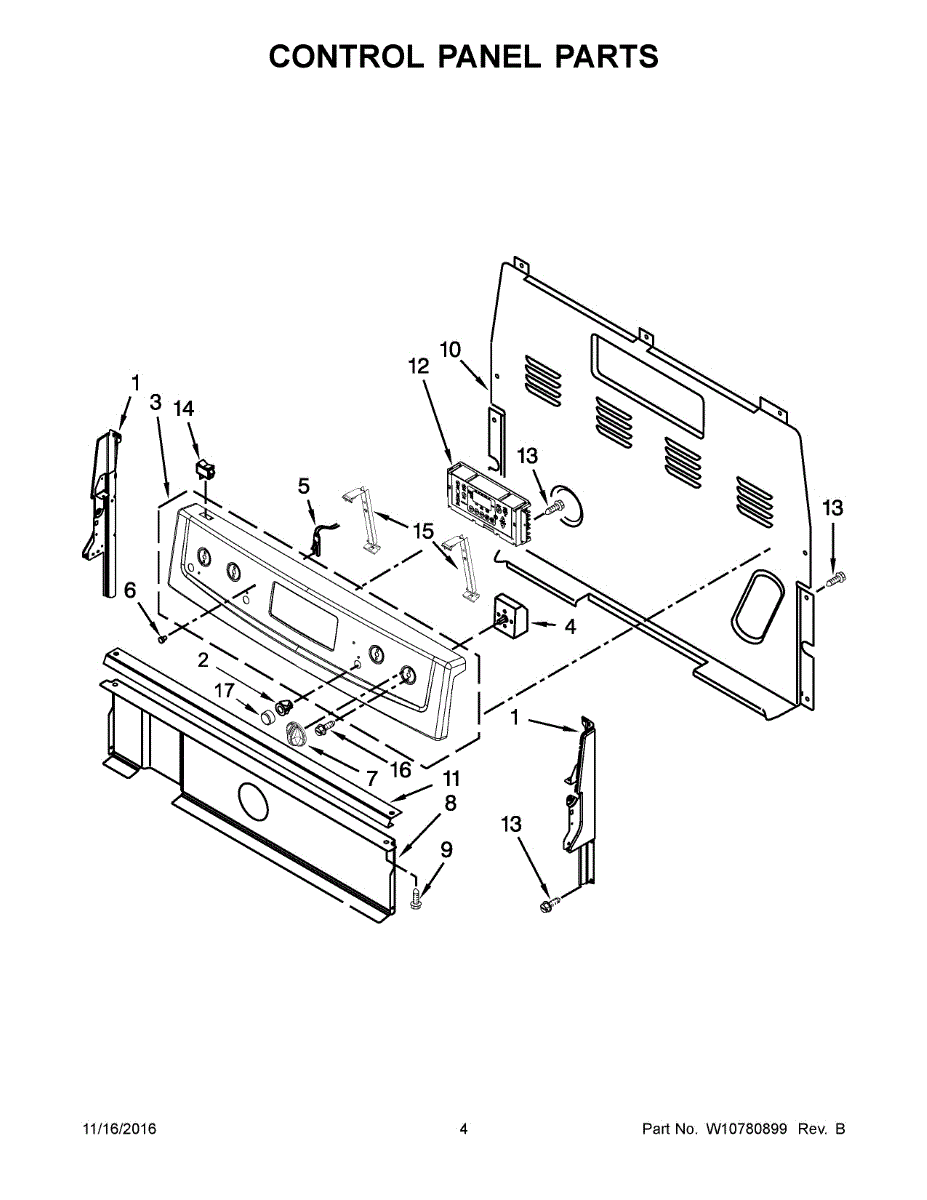

Parts for Whirlpool WFE530C0EW0: 03 - Control Panel Parts

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Left side endcap

Color: White  Note: Right side endcap

Color: White

Color: Stainless

Color: Black

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dual Element Control Switch is an OEM part for Whirlpool ranges and cooktops. This control switch is designed for models with dual heating elements, allowing you to adjust the size of the heat output on the LF element depending on whether you are using the inner or outer element.

Causes of a bad Dual Element Control Switch can include electrical issues such as short circuits or worn contacts, physical damage to the knob or switch mechanism, or problems with the internal components that regulate power.

Symptoms of a failing Dual Element Control Switch include:

• Inability to change between the inner and outer elements
• Irregular heating or lack of response when adjusting the temperature
• The switch feeling loose or not engaging properly
• Burner not heating even though the switch is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Surface unit indicactor light.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This replacement surface burner control knob restores smooth, accurate control of your range or cooktop. Replace cracked, stripped, or missing knobs so you can reliably turn burners on/off and adjust heat to the desired setting.

• Attaches to the valve or switch shaft to power the surface burner on/off and set the heat level
• Replaces knobs that are cracked, stripped, loose, or missing
• Restores proper indexing so Off/Low/High markings align correctly
• Common symptoms include a knob that spins freely, wobbles, falls off, or won't engage the stem

• Allow all cooking surfaces to cool and turn controls off; disconnect power if servicing near internal controls
• Pull the old knob straight off the stem—avoid prying tools that could damage surrounding trim
• Align the new knob with the shaft (match the flat/D-shape) and press straight on until fully seated

This control knob replaces a damaged or missing knob on your appliance, restoring a clean look and smooth, accurate selection of settings. It lets you turn the control shaft confidently for everyday, reliable operation.

• Presses onto the control shaft to operate the switch or valve
• Allows you to adjust settings such as heat, temperature, or function
• Common symptoms include cracking, stripped insert, loose/wobbly fit, or the knob not gripping the shaft
• A worn knob can make the control hard to turn or prevent it from turning on/off

• Pull the old knob straight off; avoid prying or side pressure to prevent stem damage
• Align the knob with the shaft orientation (flat/D-shaped as applicable) and press straight on until fully seated
• Confirm the indicator aligns with Off after installation
• Disconnect power and/or shut off gas; verify model-specific fit before installation

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White

Color: Black. Instruction sheet included.

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Color: White. For black use 9758491.

Color: Stainless

Color: Black. For white use 9758491
