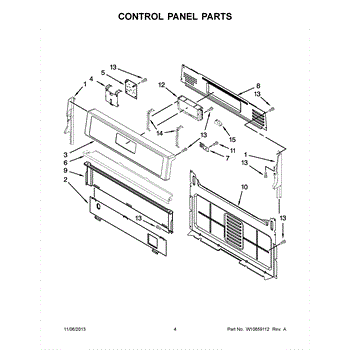

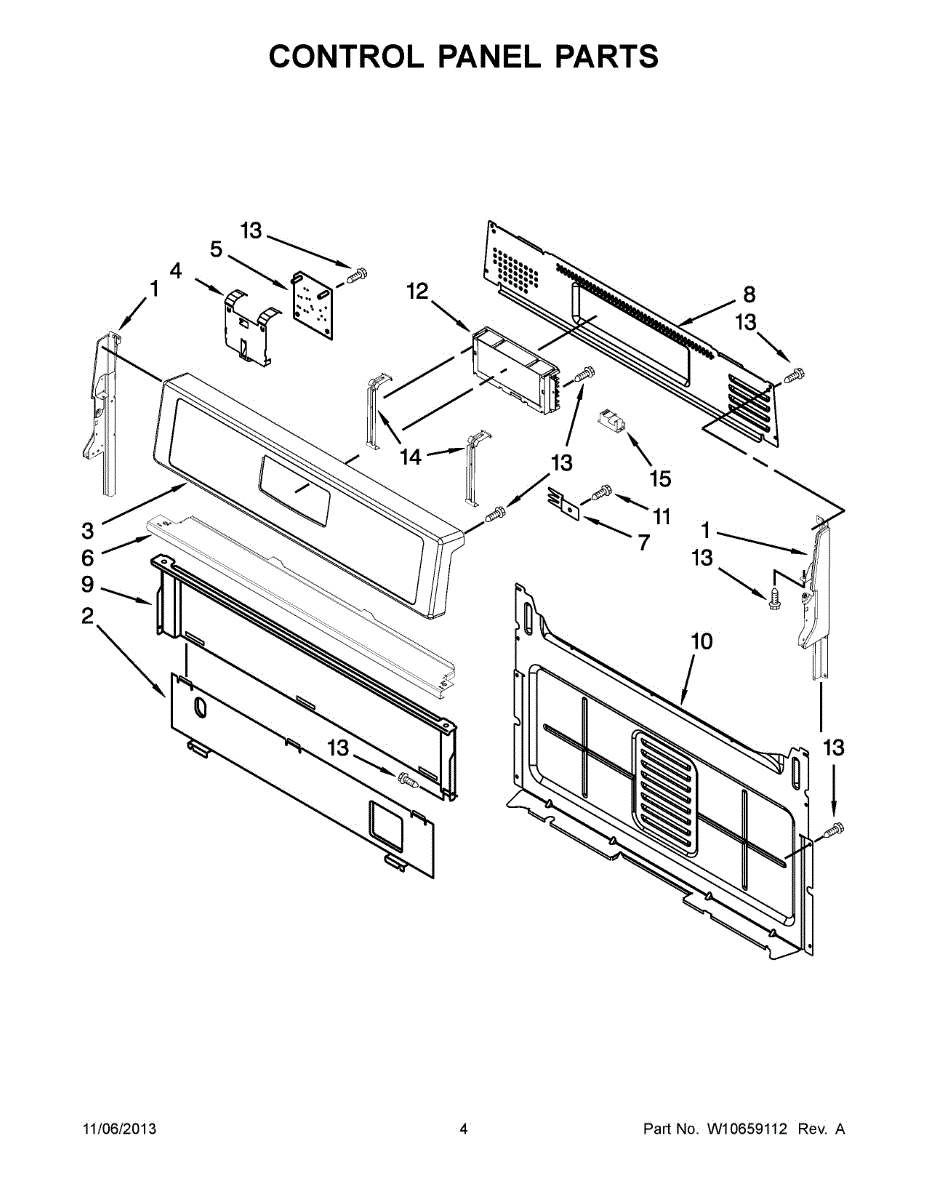

Parts for Whirlpool WFG524SLAB2: 03 - Control Panel Parts

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Left side endcap

Color: White  Note: Right side endcap

This control panel is the user-facing console that houses the oven/surface controls and display, restoring clear button response and readable display for safe, reliable operation. It replaces a cracked, worn, or nonresponsive console. What it does:

• Holds the touchpads/buttons and display that let you select bake, broil, temps and timers.
• Sends user commands to the oven's control board so functions start and stop as intended.
• Commonly fixes symptoms like unresponsive buttons, faded or cracked overlays, and erratic or blank displays.
• Restores a clean, readable surface for accurate temperature and timer input.

• One control panel (console assembly).

• Disconnect power at the breaker before starting any work to avoid shock.
• Handle the panel and display carefully to avoid scratching or cracking the overlay.
• Some installations require access behind the range or removing trim; keep hardware organized for reassembly.

This control panel is the appliance's main electronic user interface, restoring access to cycle selection, settings, and status feedback so you can operate the unit normally. It replaces a cracked, unresponsive, or malfunctioning front control assembly. What it does:

• Provides the touchpad/buttons and display for selecting cycles and options
• Sends user commands to the appliance's main control for operation
• Common symptoms it resolves: unresponsive or stuck buttons, blank or unreadable display, incorrect or missing control feedback
• Restores normal user interaction when the front control has cosmetic damage or intermittent function

• Disconnect power to the appliance before starting any repair
• Handle the panel gently to avoid damaging the display, ribbon cable, or connectors
• Installation typically requires removing the front fascia or door trim; keep track of screws and clips

This control panel is the front fascia that houses the cycle buttons and indicators on your appliance. Replacing a damaged or unresponsive panel restores reliable selections and a clean, factory appearance.

• Provides the user interface for selecting cycles and options
• Communicates button presses to the control system to start and customize operation
• Covers and protects components while finishing the appliance's front
• Common symptoms: cracked/broken console, worn or sticky buttons, selections not registering, intermittent response

• Disconnect power at the breaker before servicing
• Remove mounting screws/clips to release the existing console; support it to avoid straining wiring
• Transfer the user interface module and any brackets from the old panel as needed; avoid pinching ribbon cables
• Reinstall hardware and verify button response before completing reassembly

This electronic control module generates and manages ignition spark for DSI-equipped gas ovens/ranges. Replacing a failed unit restores reliable burner lighting and can resolve issues such as no spark, repeated clicking, or the oven/broiler not igniting.

• Generates high-voltage pulses to ignite gas at the DSI electrodes
• Times and controls ignition cycles; energizes the gas valve only during commanded ignition
• Monitors flame presence through the sense circuit and may retry or lock out if ignition fails
• Common symptoms of failure: oven or broiler won't ignite/heat, no clicking/spark, intermittent ignition, or continuous clicking
• Intended for models that use direct-spark (DSI) ignition systems, not glow-bar/hot-surface igniters

• Disconnect power and shut off gas supply before servicing
• Handle the control as an electrostatic-sensitive device; avoid touching terminals
• Transfer wires one at a time and mount the module securely with a proper ground
• After reassembly, restore utilities and verify normal ignition operation

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Replacement electronic control board for the oven's main control. Restores display, clock and cycle control so bake, broil and self-clean functions respond correctly and controls accept user inputs. What it does:

• Manages oven functions and user interface so bake, broil, broiler, timer and self-clean cycles run as selected.
• Sends signals to heating elements and sensors to regulate temperature and cycle timing.
• Replaces a failed or erratic control that causes unresponsive buttons, incorrect display/clock behavior, or ovens that won't start cycles.
• Works with the oven's existing wiring and components to restore normal operation when the control is the confirmed fault.

• Disconnect power at the breaker before starting—this part is wired to live voltages.
• Note or photograph wiring connections before removal to ensure correct reassembly.
• Handle the board carefully to avoid static damage; mount and fasten in the original location.

This electronic control board coordinates the oven's heating modes and display. Replacing a failed board restores accurate temperature control and responsive controls so your wall oven or range operates reliably again.

• Regulates bake, broil, and convection outputs based on sensor feedback; failures can cause no heat, temperature swings, or cycles that won't start.
• Manages the display, clock, and keypad interface; faults may leave the controls unresponsive or the display blank or dim.
• Controls self-clean and door lock functions; issues here can prevent locking/unlocking or abort a clean cycle.
• Monitors inputs and relays and can trigger error codes when problems are detected.

• Disconnect power at the breaker before servicing.
• Use anti-static protection and handle the board by the edges.
• Access is typically behind the control panel; label/photograph wiring and move connectors one at a time to the new board.
• After installation, restore power, set the clock, and run a test bake to verify operation.

This electronic oven control board is the appliance's brain, directing heating cycles, temperature regulation, and the display. Replacing a failed board restores reliable operation, accurate temperatures, and responsive controls.

• Controls bake and broil through power relays—failure can cause no heat or cycles that won't start
• Regulates temperature using the oven sensor—can lead to erratic, inaccurate, or fluctuating oven temperatures
• Powers the clock/timer and status display—symptoms include a blank display, frozen time, or intermittent power to controls
• Interfaces with keypad and safety circuits—can cause unresponsive controls, beeping, or recurring error codes traced to the control
• Coordinates door lock during self-clean—self-clean won't start/finish or lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool before servicing
• Use anti-static protection and handle the board by its edges
• Photograph wiring and move connectors one at a time; transfer any mounting hardware from the original board
• Restore power and run a test bake; follow your model's user/service instructions for any calibration or settings steps

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter
