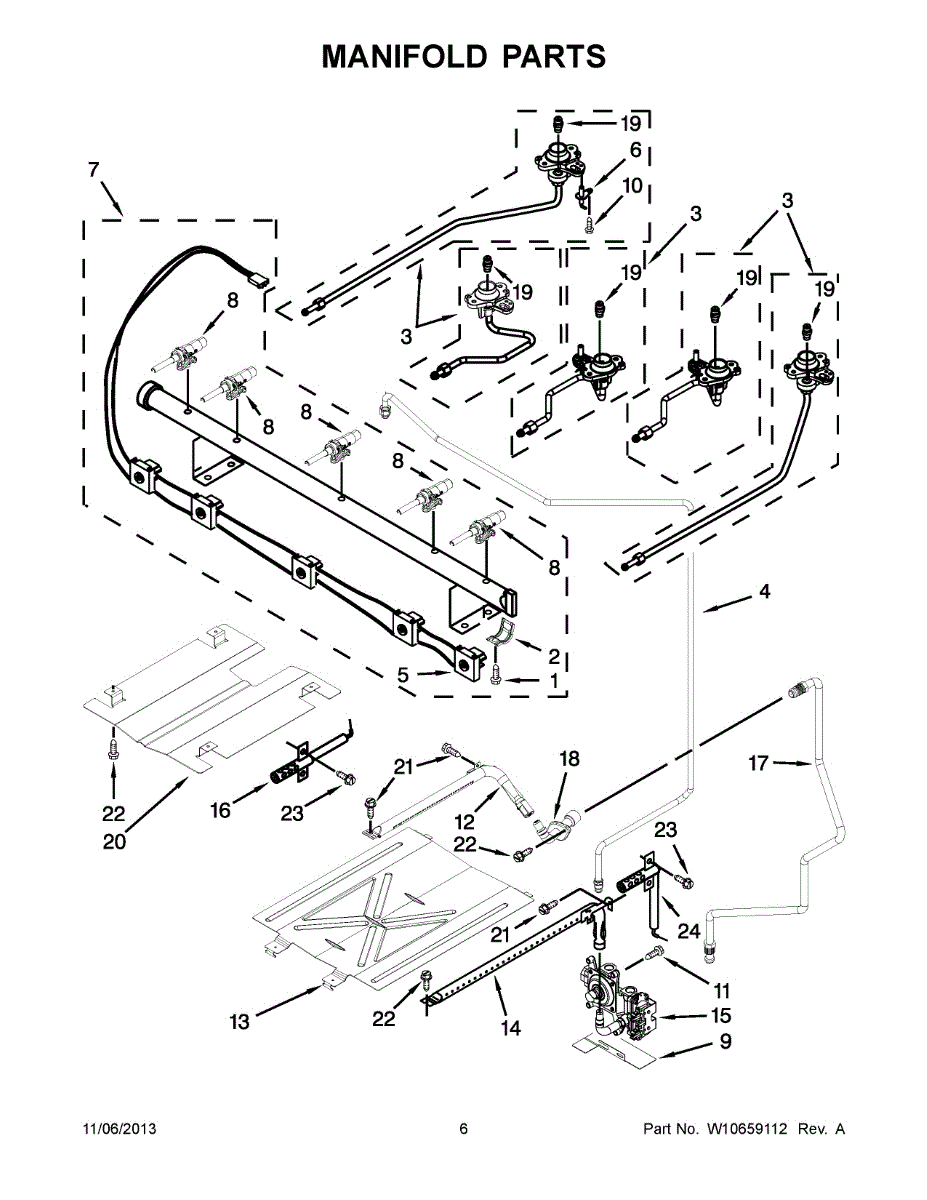

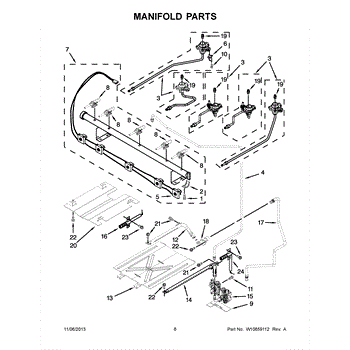

Parts for Whirlpool WFG524SLAB2: 04 - Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This orifice holder assembly secures the gas orifice for a surface burner, positioning it for proper gas flow and consistent ignition. Replacing a damaged holder helps restore stable flame performance and safe burner operation. What it does:

• Holds and aligns the burner orifice to direct gas into the burner tube
• Maintains correct spacing for reliable ignition and even flame
• Helps prevent gas leaks caused by cracked, bent, or loose holders
• Reduces symptoms like weak or uneven flames, delayed ignition, or burner misfiring

• Turn off gas supply and electrical power before inspecting or replacing the part
• Tighten fasteners securely but avoid overtightening; replace any damaged gaskets or seals
• After installation, check all gas connections for leaks with a soap solution or approved detector

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice \include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The Orifice Holder is an OEM part for Whirlpool ranges. This part secures the orifice through which gas flows into the range cooktop and oven burners.

Causes may include natural wear, cracks or damage incurred over years of use. Gas leaks are also a risk if the holder fails.

Symptoms of a bad orifice holder can manifest as:

• Unpredictable or intermittent burner ignition
• Flames that appear abnormally tall, yellow or noisy
• Cooktop that heats unevenly or inadequately

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Orifice Holder is an OEM part for Whirlpool gas ranges. It is a small but critical component responsible for securely holding the burner orifices in place on the stovetop. The orifice holder positions each burner orifice to ensure proper gas flow and optimum flame size during operation.

Causes of a bad orifice holder can include damage or wear over time due to heat exposure on the stovetop. The holder material degrading could allow orifices to shift position.

Symptoms of a bad orifice holder include:

• Improper or inconsistent burner flame size
• Difficulty achieving or maintaining desired flame height
• Gas smell or leaks around burner area
• Burners that do not light or ignite as expected

This OEM replacement is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas range models.

This wire harness connects the igniter/spark switch to the range's ignition system, restoring reliable spark transmission for gas burner ignition. It helps re-establish spark signals when the original harness is damaged or corroded. What it does:

• Routes electrical connections between the spark/igniter switch and the ignition module
• Enables consistent sparking at burner igniters for reliable ignition
• Common fix when burners won't ignite or sparking is intermittent
• Replaces frayed, burned, or loose wiring that can interrupt spark signals

• Disconnect power and shut off gas supply before starting any repair
• Inspect harness routing and connector seating; replace any damaged clips or retainers

The Electrode is an OEM part for Whirlpool gas ranges. This part ignites the gas in the surface burner, providing the flame necessary for cooking. The electrode generates a spark that lights the gas when the burner knob is turned on.

Causes of a bad electrode can include wear and tear from frequent use, buildup of food residue or grease, or physical damage from cleaning or accidental impact.

Symptoms of a bad electrode include:

• The burner not igniting
• Weak or intermittent sparking
• Clicking noises without the burner igniting
• Uneven or weak flame from the burner

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner valve is a direct-replacement valve that controls gas flow to a cooktop or range burner, restoring proper ignition and steady flame for safe cooking. What it does:

• Regulates gas flow to an individual burner for normal ignition and flame control
• Helps correct issues like burners that won't light or have weak/uneven flames
• Prevents continuous flow when the valve is in the off position (safety-related function)
• Works as the component between the appliance gas line/manifold and the burner port

• Always shut off the appliance gas supply and power before beginning service
• Check all connections for leaks after installation (soap-and-water test recommended) and follow local codes
• Do not test for leaks with an open flame; follow OEM instructions and safety precautions

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This gas valve controls the flow of gas to a burner, enabling safe ignition and a stable flame. Replace a sticking or failed valve to restore dependable lighting and consistent heat output from your cooking appliance.

• Regulates and shuts off gas flow from the manifold to the burner
• Supports clean ignition and steady flame during operation
• Common symptoms: burner won't light even with spark/igniter present, flame won't adjust or is erratic, control stem is stiff or stripped
• Can help resolve intermittent flame-out or weak flame caused by internal valve wear

• Disconnect power and shut off the gas supply before servicing
• Note tubing/orifice orientation and transfer fittings as required
• Apply gas-rated thread sealant to tapered pipe threads only
• After installation, open gas and leak-test all joints with an approved solution; verify ignition and proper flame height

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

This natural-gas burner orifice spud meters the correct fuel flow for a 15,000-BTU surface burner. Replacing a clogged, damaged, or wrong-size orifice restores proper flame size, cleaner combustion, and reliable cooktop performance. What it does:

• Meters gas through a calibrated opening to the burner head for correct flame height
• Sized for a 15,000-BTU surface burner using natural gas
• Installs in the orifice holder/valve body beneath the burner
• Typical symptoms of a faulty or mismatched orifice: weak/small flames, yellow/sooty flames, uneven heating, delayed ignition, burner won't reach high heat

• 1 natural-gas 15,000-BTU orifice spud

• Shut off gas supply and disconnect power; allow all burners to cool completely
• Remove grates, caps, and burner heads; lift the top or access the orifice holder as required
• Match each orifice to the correct burner location by BTU rating; do not overtighten
• After reassembly, check all connections for leaks with a non-corrosive soap solution and verify proper flame color/size

• For natural gas applications only; use the correct LP/propane orifice when converting fuel types

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas orifice is a direct replacement sized for 9K LP applications to restore correct gas flow to a burner. It helps maintain proper flame performance and consistent heating in compatible gas ranges. What it does:

• Regulates gas flow to a burner for correct flame size and heat output
• Helps resolve weak or low flames and difficulty lighting
• Can improve uneven heating or inconsistent burner performance
• Ensures proper operation after conversion to LP when the correct orifice is required

• Shut off gas supply and power to the appliance before starting work
• Replace the orifice using appropriate wrenches; avoid overtightening
• After installation, check all connections and test for gas leaks with a soapy water solution

This LP bake orifice meters propane to the oven's bake burner to deliver the specified BTU output. It helps ensure a stable, blue flame and consistent baking performance after LP conversion or when replacing a damaged or missing spud.

• Meters LP gas to the bake burner for the intended BTU output
• Promotes correct flame size and color for efficient, even baking
• Useful after LP conversion or when the original orifice is clogged, damaged, or missing
• Symptoms can include weak or unstable bake flame, oven not reaching temperature, or yellow/sooty flame

• For LP use only; verify the correct orifice for your model and gas type
• Disconnect power and shut off gas; allow the oven to cool completely before service
• Access the bake burner orifice holder; start threads by hand to avoid cross-threading and tighten snugly—do not overtighten brass
• After reassembly, leak-check all gas connections and verify proper flame/air-shutter adjustment.

The LP Orifice Kit is an OEM part for Whirlpool gas ranges. It contains a set of five orifices designed specifically for use with liquid propane (LP) gas. Note: For the oven orifices, on some models they are adjustable and some they are not. Refer to parts list for your model when oven orifices are needed. LP orifice kit includes 5 orifices.

Causes of a bad LP Orifice Kit may stem from incorrect orifice size for the specific LP gas supply, wear or damage to the orifices over time, or improper installation.

Symptoms of needing to replace the LP Orifice Kit can include:

• Uneven heating or incomplete combustion of the burners
• Yellow or flickering flames instead of a steady blue flame
• Reduced cooking performance or inefficient heating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
