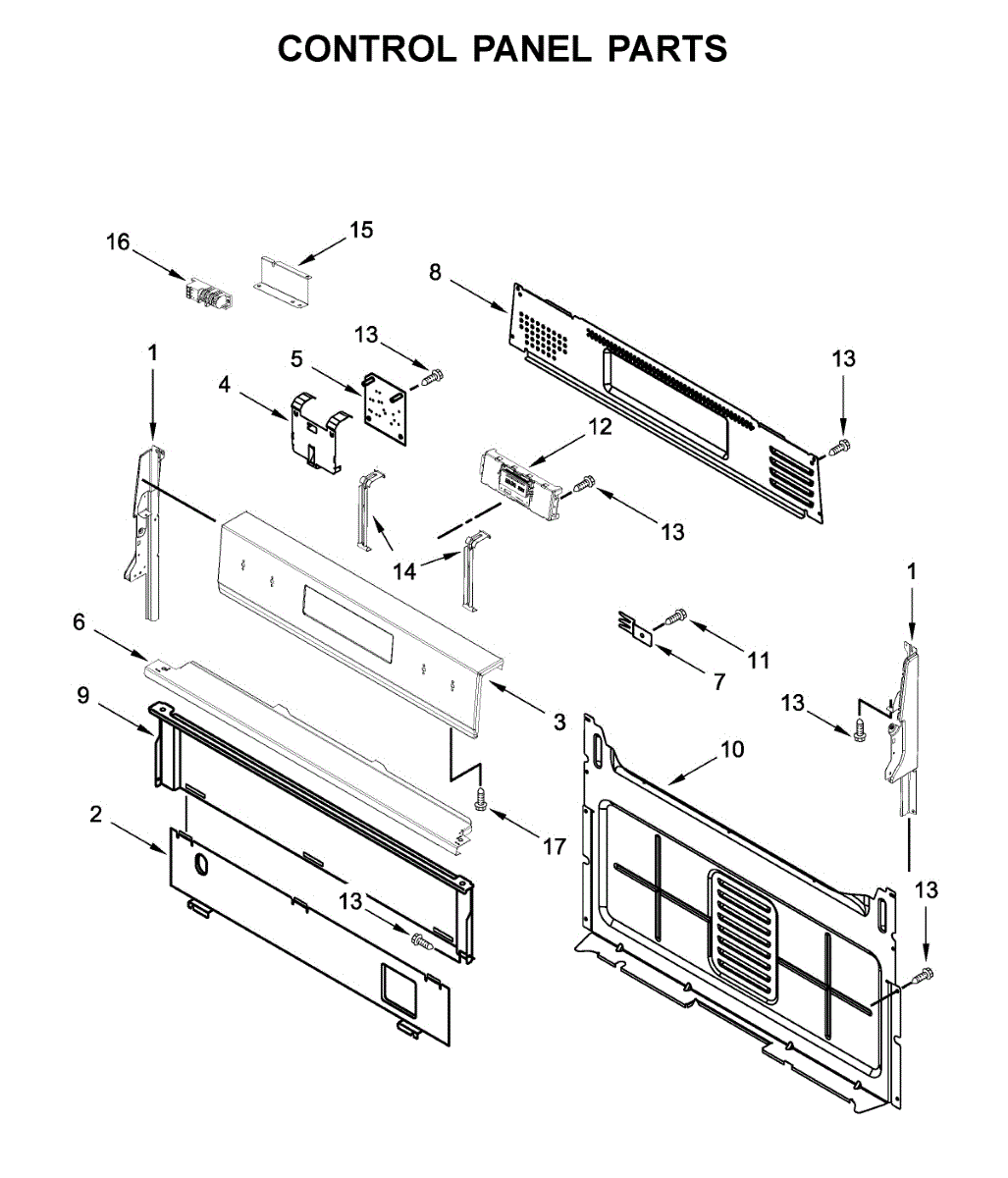

Parts for Whirlpool WFG535S0JS1: Control Panel Parts

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

The Control Panel is an OEM part for Whirlpool ranges. As the interface between the user and appliance, the control panel is responsible for housing all of the electronic controls and display that allow for selection and monitoring of oven functions like temperature, bake time, locks, and timers.

Causes of a bad control panel can include cracked or worn buttons or displays that no longer register touch input properly. Splashing liquids or steam exposure over time can cause internal circuitry issues as well.

Symptoms of a bad control panel include:

• Unresponsive or malfunctioning buttons
• Fading or inaccurate displays
• Error codes indicating electrical faults
• Inability to properly turn elements or functions on/off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spark Module is an OEM replacement part for Whirlpool gas ranges. It is responsible for generating the spark necessary to ignite the gas burners on your cooktop, ensuring reliable and consistent ignition every time. It controls the timing and distribution of the sparks, allowing for the proper ignition of each burner.

Symptoms of a faulty spark module include:

• No spark or ignition when turning on the burners
• Weak or intermittent sparks
• Difficulty in lighting the burners consistently

A bad spark module can occur due to electrical malfunctions, wear and tear over time, or exposure to moisture or grease. If you experience issues such as no spark at all, weak or intermittent sparks, or difficulty in igniting the burners, it may be time to replace the old or damaged spark module with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Cntrl-Elec (Control-Electric) is an OEM component specifically designed for Whirlpool gas ranges. It is the electric control board that regulates and monitors all burner and oven functions.

Causes of a bad control board can include moisture damage, thermal stress over time, or component failure due to normal electrical load.

Symptoms of a bad control board include:

• Unresponsive or intermittent burners that will not ignite
• Inability to properly regulate oven temperature
• Erratic or unpredictable oven and burner operation
• Constant error codes or failure indications

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

Size: 8-18 x 1/2 inch.
