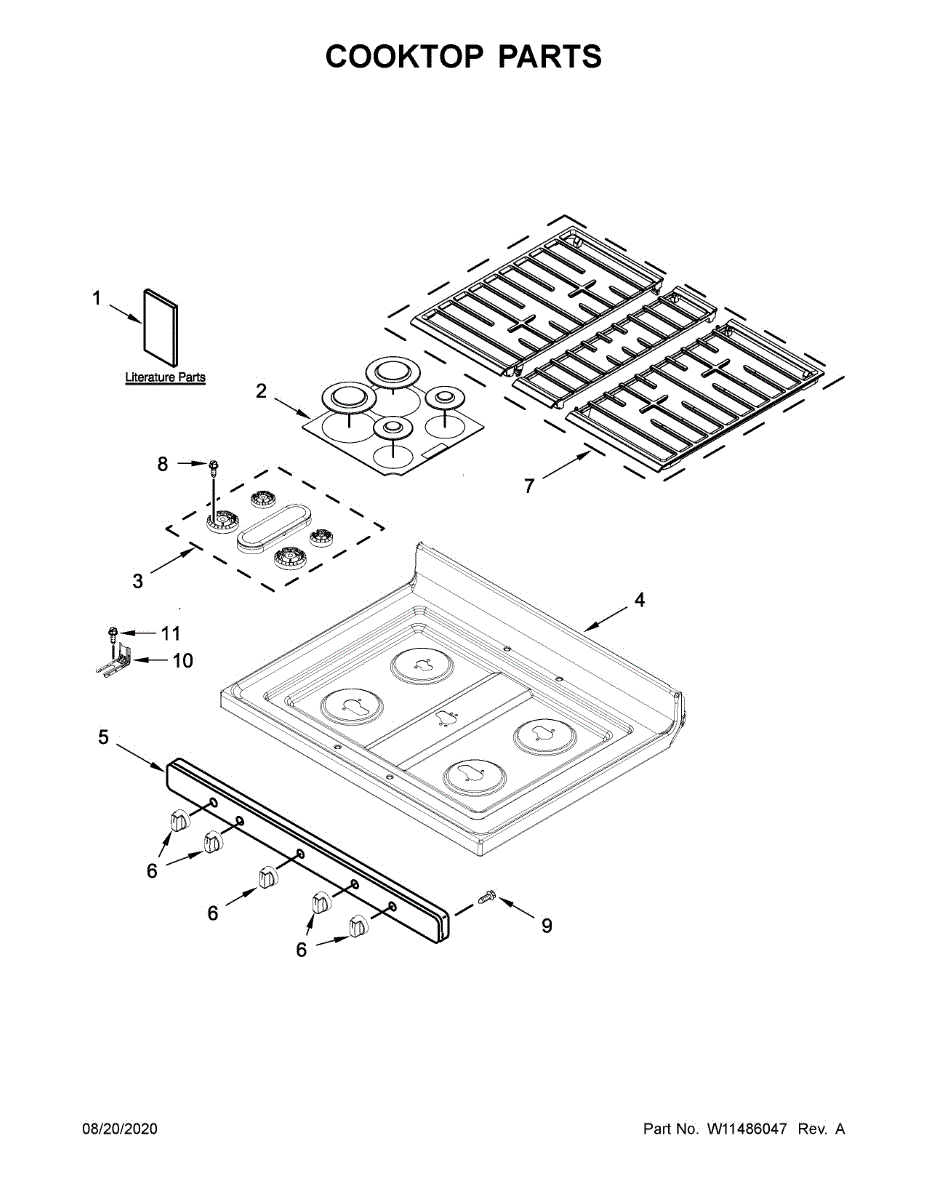

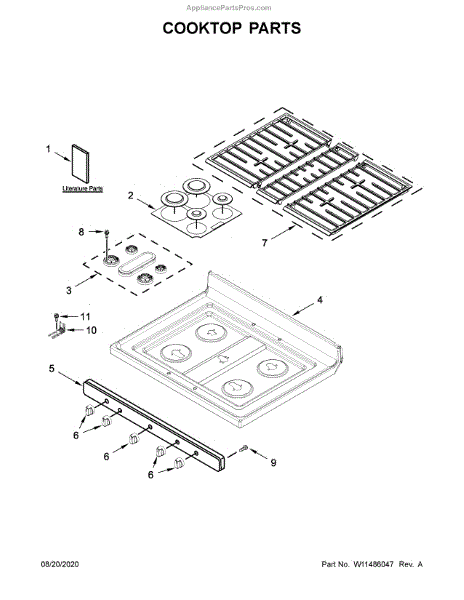

Parts for Whirlpool WFG535S0JS1: Cooktop Parts

The Burner Head is an OEM component specifically designed for Whirlpool gas ranges. Located beneath each cooking surface, it allows precise flame control and heat delivery for safe food preparation.

Causes can be related to accumulated food or mineral deposits distorting gas/air mixing pathways. Normal aging effects like rusting also impact burner functionality.

Symptoms of a bad burner head include:

• Flames appear unusually high, low, or unstable
• Uneven cooking results occur on burner surfaces
• Singeing or burning odors develop during use
• Any ports that appear collapsed or restricted

This OEM Whirlpool replacement burner head restores consistent heat levels. Installed promptly to repair scorches or damage, it prevents continued surface and connection deteriorations to the manifold.

Compatible also with some GE and Frigidaire ranges, this part ensures safe, dependable cooking control.

The Knob (Stl) is an OEM part for Whirlpool ranges. It is used to control the various functions of the range, such as the burners and oven settings, by turning to the desired position.

You should replace the knob if it becomes worn out, cracked, or broken. Causes of a bad knob can include frequent use over time, accidental impact, or exposure to high heat which can cause the material to degrade.

Symptoms of a bad knob include:

• Difficulty turning the knob or selecting the correct settings
• The knob becoming loose or falling off
• Cracks or visible damage to the knob
• The knob not engaging with the control shaft properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Whirlpool Grate Kit is an OEM part for select Whirlpool range models. The kit includes grates that provide a stable and secure surface for your cookware on the stovetop.

Grates can deteriorate over time due to constant exposure to high heat, aggressive cleaning agents, or heavy cookware. Common problems include warping, chipping, or enamel coating degradation, which can compromise the stability of your pots and pans while cooking.

Symptoms of worn-out grates include:

• The grates wobble or are unstable when cookware is placed on them.
• Noticeable chips, cracks, or rust on the grates.
• Difficulty in cleaning, with food residues sticking persistently.
• Discoloration or deterioration of the grate's surface.
• Uneven heating of cookware due to warped grates.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly

The Wire Harness is an OEM part for Whirlpool ranges. It is an intricate network of electrical wires that distributes power to components like the oven control board, temperature sensor, displays, buttons, lights, and more. Proper operation of these systems relies on an intact and functioning wire harness.

Causes of a bad wire harness can include cracked insulation, and exposed or severed wires due to stress and movement over time. The harness may also develop shorts, abrasions, or disconnects in wiring due to normal wear and repeated use of the oven door.

Symptoms of a bad wire harness include:

• Sudden failure of control buttons, lights, or displays
• Unstable or fluctuating oven temperatures
• Electrical burning smells when the oven is in use
• Intermittent or complete lack of power to oven systems

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.
