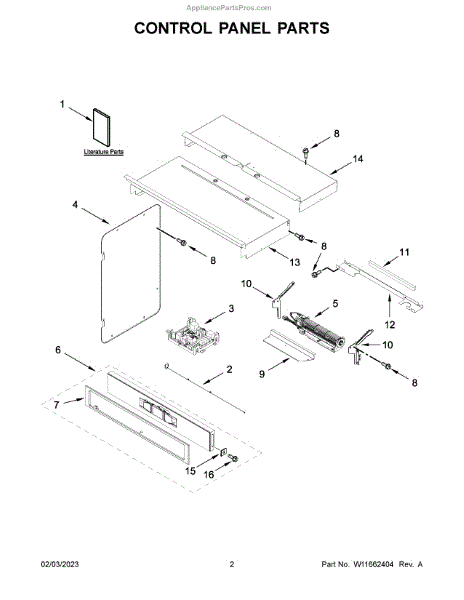

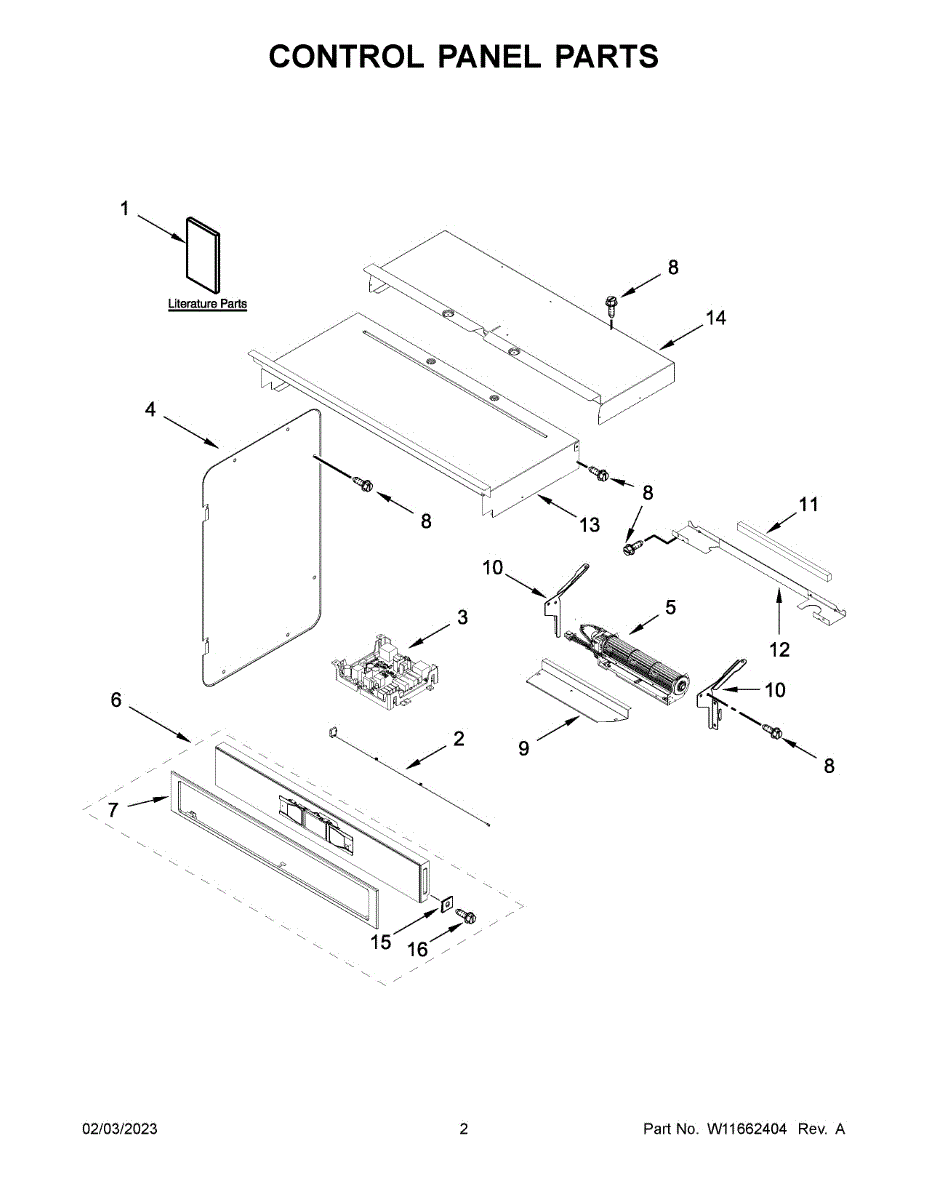

Parts for Whirlpool WOC75EC0HS22: Control Panel Parts

This replacement electronic control board manages the appliance's functions, user inputs and cycle timing so your unit runs the selected programs correctly. Use it to restore control responsiveness and normal cycle operation when the original board fails. What it does:

• Receives and processes user commands from the control panel and starts the appropriate cycles
• Controls timing, relays and communications between sensors and motors
• Commonly used when an appliance won't start, shows no display, displays error codes, or cycles improperly
• Works with associated relays and touch controls to regulate operation

• Always disconnect power before servicing; this part handles live voltages
• Handle the board carefully to avoid static discharge and physical damage
• May require removal of the console or control housing; keep track of screws and connectors

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

U-type clip

This wire harness routes electrical power and signals between appliance components to restore reliable connections and normal operation. It replaces a damaged or worn harness to help resolve intermittent power or control issues. What it does

• Provides organized wiring to connect controls, switches, sensors, and motors
• Restores interrupted power paths that can cause components to stop working
• Helps eliminate intermittent operation, blown fuses, or non-responsive controls due to damaged wiring
• Reduces risk of shorting from frayed or exposed conductors when properly installed

• Disconnect power at the breaker or unplug the appliance before starting
• Match connector shapes and colors; do not force connectors—ensure full seating
• Route and secure the harness along original clips and channels to avoid heat or moving-part contact
• If corrosion, burned connectors, or control damage are present, inspect related components and replace as needed

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
