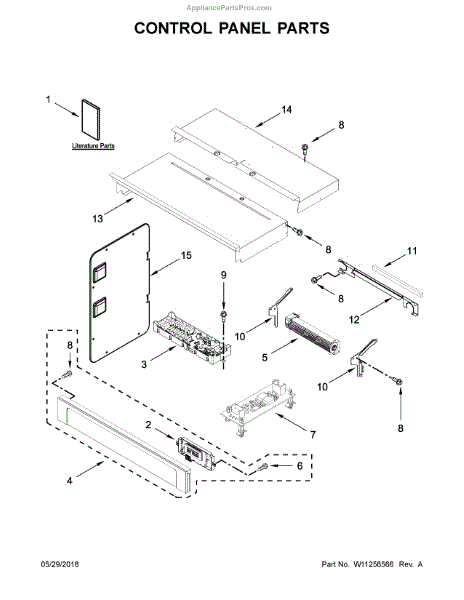

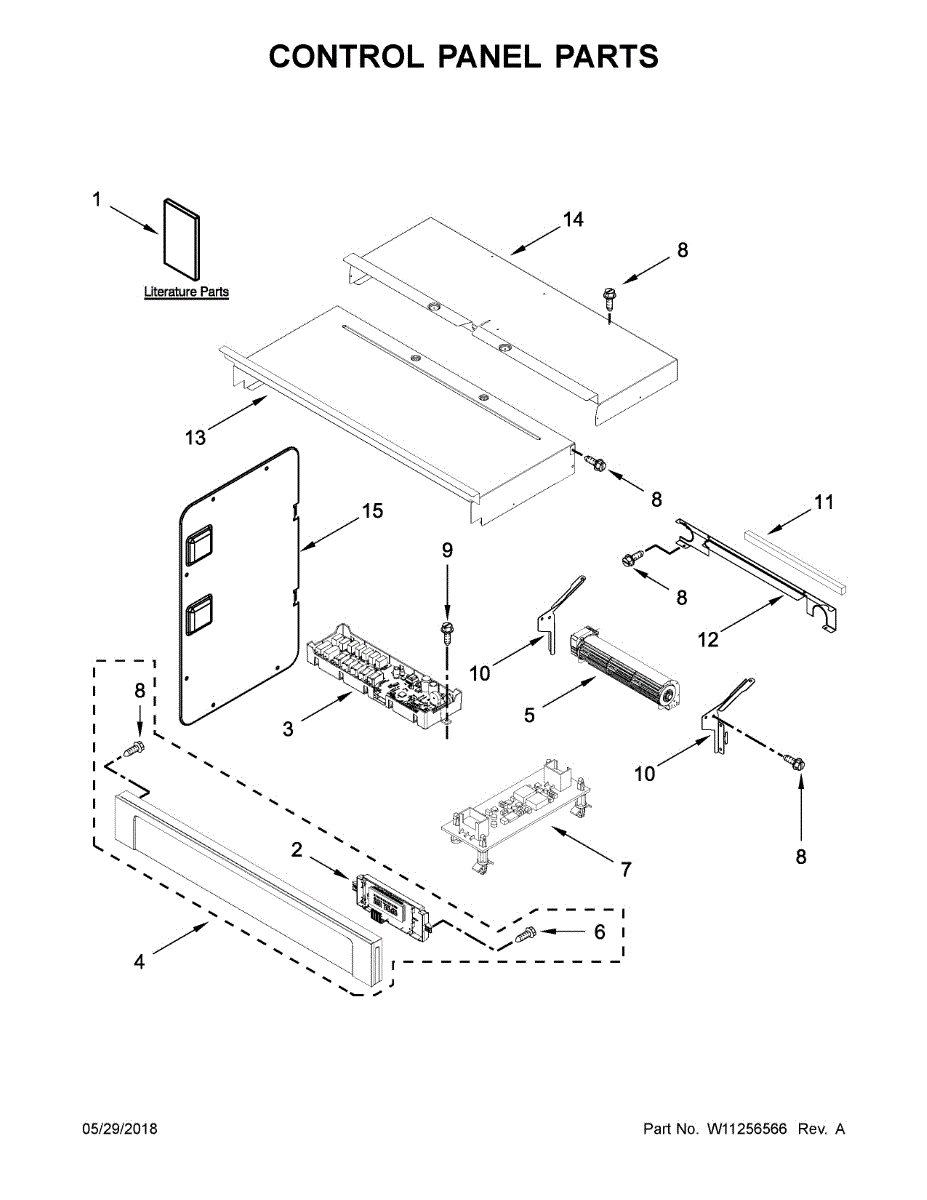

Parts for Whirlpool WOC95EC0AB05: Control Panel Parts

This is a replacement oven control board from Whirlpool. The control board's job is to take user inputs, display information, and monitor/manage the function of the oven. The display shows the user the time and/or temperature, as well as timer-related information. Over time, the oven control board can deteriorate due to the effects of heat, moisture, spills, and more. Signs that the oven control board might be failing or have failed include intermitting problems with the display or oven functions, or lack of functionality. Replacing the control board is the only way to fix the problem. First, unplug the oven. Next, remove the cowling/cover over the control board. Locate the four mounting screws and remove them. Disconnect the wiring from the old board. Install the new board by following these steps in reverse.This is a genuine OEM part. It's sold individually, and will fit Whirlpool, KitchenAid, and Maytag ovens.

This electronic control board regulates and coordinates appliance functions so your unit responds to user settings and cycles correctly. Replacing a faulty board restores reliable control and can stop erratic operation. What it does:

• Receives input from user controls and sends signals to components
• Manages cycle timing, display indicators, and system coordination
• Commonly related to symptoms like unresponsive controls, blank or erratic display, failure to start cycles, or intermittent operation
• Helps stop incorrect or frequent cycling when the control is the confirmed cause

• Disconnect power to the appliance before accessing internal electronics to avoid shock
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• Verify model and part number match your appliance before installing

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This wide interface board is the appliance's user-facing electronic control that receives touchpad/input signals and communicates with the main control to run cycles. Replacing a faulty board restores control responsiveness and display feedback. What it does:

• Controls user inputs from the console and relays commands to the appliance control system
• Manages display outputs and status indicators for cycle selection and time remaining
• Can resolve symptoms like unresponsive buttons, blank or erratic display, or incorrect cycle selections
• Works as the console-level communication link between the user interface and the main control board

• One wide interface electronic control board

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle the board by the edges and avoid contact with circuit traces or components; observe ESD precautions
• Verify connector seating and orientation during reassembly; do not force connectors

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
