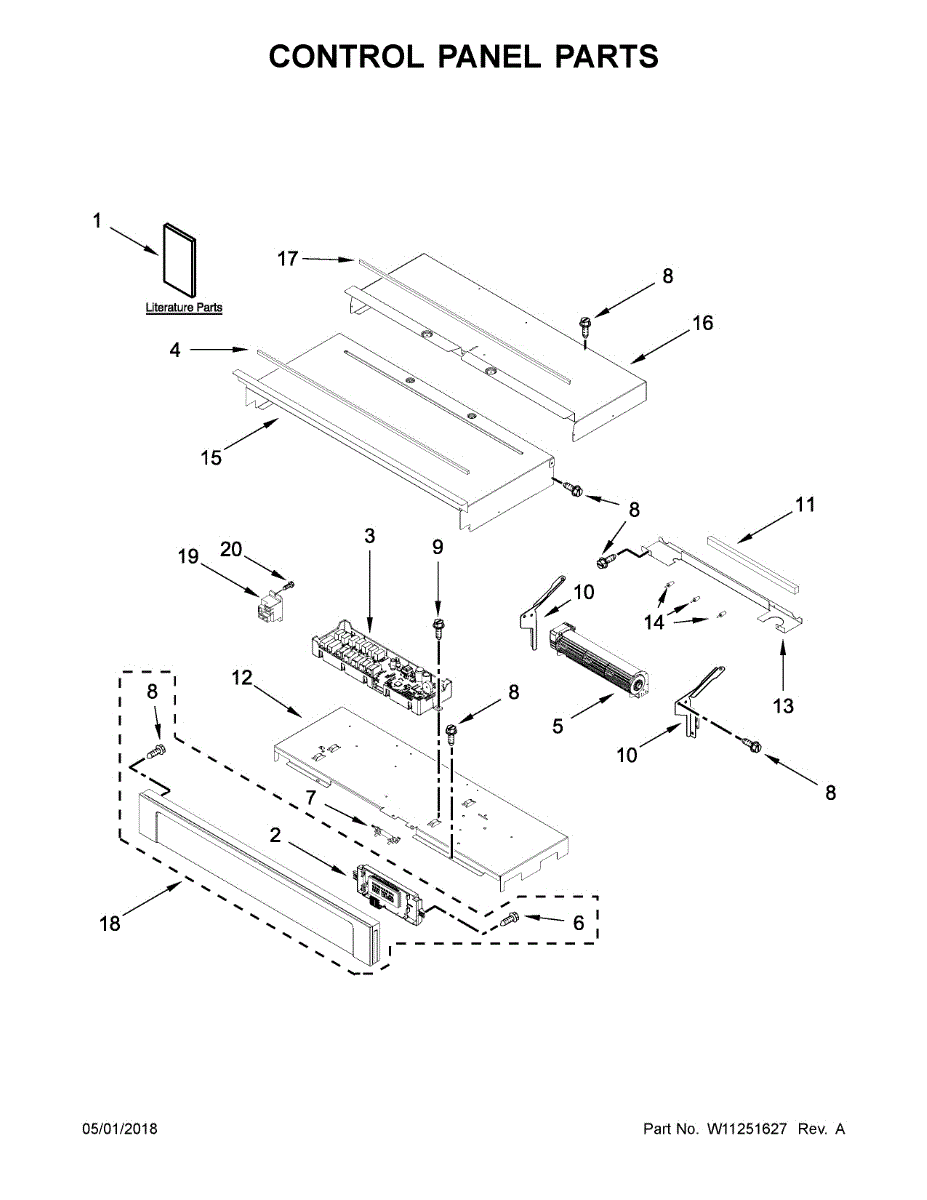

Parts for Whirlpool WOD93EC0AB06: Control Panel Parts

This is a replacement oven control board from Whirlpool. The control board's job is to take user inputs, display information, and monitor/manage the function of the oven. The display shows the user the time and/or temperature, as well as timer-related information. Over time, the oven control board can deteriorate due to the effects of heat, moisture, spills, and more. Signs that the oven control board might be failing or have failed include intermitting problems with the display or oven functions, or lack of functionality. Replacing the control board is the only way to fix the problem. First, unplug the oven. Next, remove the cowling/cover over the control board. Locate the four mounting screws and remove them. Disconnect the wiring from the old board. Install the new board by following these steps in reverse.This is a genuine OEM part. It's sold individually, and will fit Whirlpool, KitchenAid, and Maytag ovens.

This electronic control board manages the appliance's functions and cycle operations, restoring responsive controls and proper sequencing when the original board fails. Replacing a faulty board can resolve unresponsive buttons, incorrect cycles, or display/control errors. What it does:

• Acts as the appliance's main control, sending signals to motors, valves, and sensors
• Replaces malfunctioning logic that can cause unresponsive or intermittent controls
• Corrects control-related error codes, incorrect cycle behavior, or display issues
• Controls timing and coordination of automatic features and user selections

• 1 electronic control board

• Disconnect power to the appliance before replacing the control board to avoid shock
• Handle the board carefully; avoid touching contacts and protect against static discharge
• Use the OEM mounting and connector locations; ensure all wiring plugs are fully seated
• Test the appliance through a full cycle after installation to ensure proper operation

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Thermal Fuse is an OEM part for Whirlpool ovens. This part cuts off power to the oven if it detects excessively high temperatures, preventing potential overheating and ensuring safe operation.

Over time, the thermal fuse can fail due to regular use, exposure to high temperatures, or electrical issues.

Symptoms of a bad thermal fuse include:

• Oven not powering on
• Oven not heating up
• Interruption of cooking cycles
• No response from oven controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This is a control panel included in many stoves, ranges, and ovens. It is on top of the back of the stove. The purpose of this component is to control the oven when buttons are pressed to set the temperature of the oven. When the oven is experiencing problems, the screen on the control panel will show diagnostic codes to give insight into what is wrong. If the control panel is no longer working or damaged, it will need to be replaced.If the control panel on the oven is damaged, it might take longer to cook foods, create undercooked foods, or lead to an uneven cook. To replace this part, the oven should be unplugged from the wall. A set of tools will be needed and work gloves may be useful for the process. Use a screwdriver to loosen the control panel from the stove before unhooking the wires. Remove the component and install the new part. Hook the wires back up and plug the stove back in before use.This control panel is an authentic OEM replacement component directly sourced from the manufacturer. It is sold as a single part. The component is made to be used with ranges, stoves, and ovens created by Whirlpool.

This power relay is an electrical control component that routes high-current power to key appliance systems, helping the unit start and run reliably. It replaces a failed relay to restore normal electrical switching. What it does:

• Switches power to the appliance's motor/compressor or control circuits when commanded
• Prevents direct exposure of control board circuits to high starting currents
• Commonly linked to symptoms like failure to start, intermittent operation, or humming motors
• Acts as a replaceable electrical switching device used in start/run control sequences

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Compare terminals and mounting to the old relay to ensure correct replacement
• Handle the relay and terminals carefully; avoid bending blades or pulling wires roughly

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
