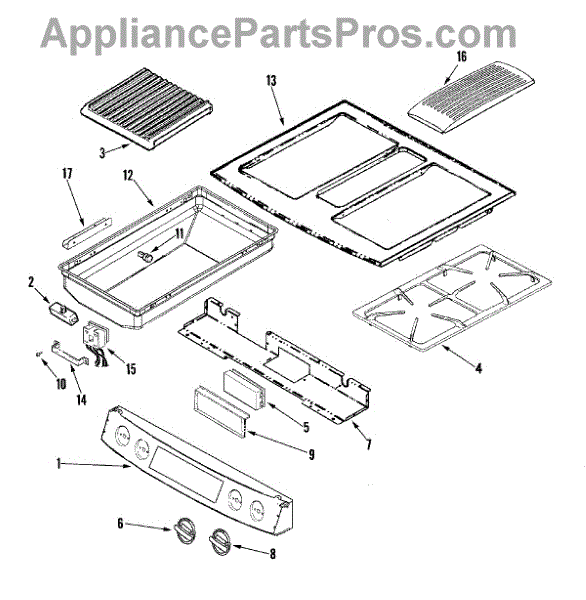

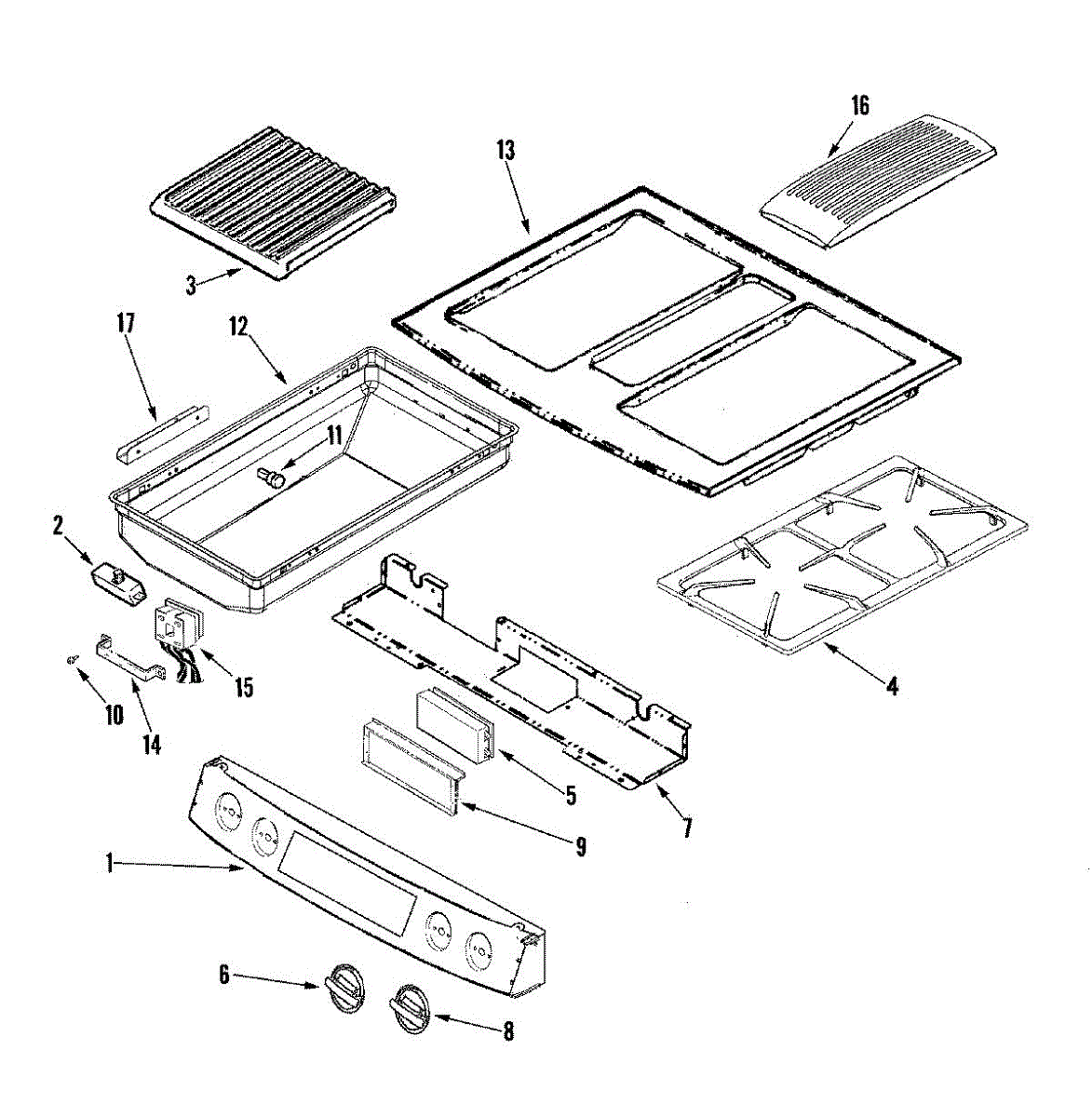

Parts for Jenn-Air JDS9860BDB: 03 - Control Panel / Top Assembly Parts

Color: Black

A replacement SN switch that restores the appliance's control function so selections and features respond reliably. Installs in the original switch location to return consistent on/off or selector operation after a switch failure. What it does:

• Opens and closes the electrical circuit to control the associated function or component.
• Replaces a worn or failed switch to stop intermittent operation or loss of control.
• Common symptoms it can fix: appliance not responding to a selector/setting, intermittent power to a component, or a component that won't turn on.
• Functions as the user-facing or internal control switch depending on the model application.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• May require removing an access or control panel; use basic hand tools and note wire locations before disconnecting.

Color: Black.

Color: Black. Dual.

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This electronic control board manages your oven's display, keypad inputs, and heating functions. Replacing a failed board can restore responsive controls, proper bake/broil operation, and reliable timing so your range or wall oven works as designed. What it does:

• Interprets keypad inputs and updates the clock/temperature display
• Controls bake and broil circuits via onboard relays
• Monitors the oven temperature sensor to regulate heat
• Runs cooking modes and timers

• 1 electronic control board assembly

• Disconnect power at the breaker before servicing; verify no power is present
• Handle the board by the edges and use ESD precautions
• Note/photograph wire locations; transfer any brackets or supports from the original board
• After installation, restore power and test bake/broil functions to confirm operation

Replacement control knob that restores reliable manual control of your appliance's settings. Fits the original shaft to provide a secure grip and accurate selection when the original knob is cracked, loose, or missing. What it does:

• Replaces a damaged or worn control knob so you can select temperature or burner settings with confidence.
• Provides a clear indicator alignment for correct setting selection and tactile feedback while turning.
• Helps resolve symptoms such as a cracked, loose, stiff, or missing knob that makes adjustments difficult or imprecise.
• Matches OEM geometry for a factory-like fit and operation when installed on the correct shaft.

• Always disconnect power to the appliance before servicing to avoid electrical shock.
• Remove the old knob by pulling it straight off the shaft; align the new knob with the indicator and push firmly until seated.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This surface burner control knob replaces a worn gas knob on your range or cooktop, restoring a solid feel and precise flame adjustment so you can reliably turn burners on, set heat, and shut them off.

• Mounts on the surface burner valve stem to control gas flow and heat level
• Addresses cracked, stripped, or missing knobs
• Helps when a knob spins without engaging the valve or feels loose
• Restores clear, consistent control of burner on/off and flame settings

• Turn all burner controls to Off, unplug or disconnect power, and allow the surface to cool
• Pull the old knob straight off the valve stem; avoid prying with tools that could damage the panel
• Align the new knob with the stem and press straight on until fully seated
• Verify smooth operation through Off, Ignite, and Low-to-High settings

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Screw: 8-16 x 3/8 inch.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part
