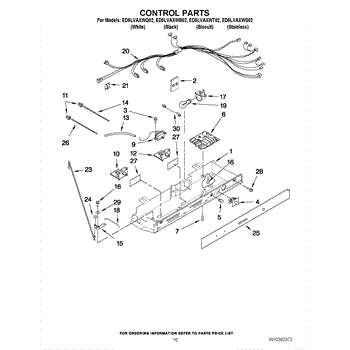

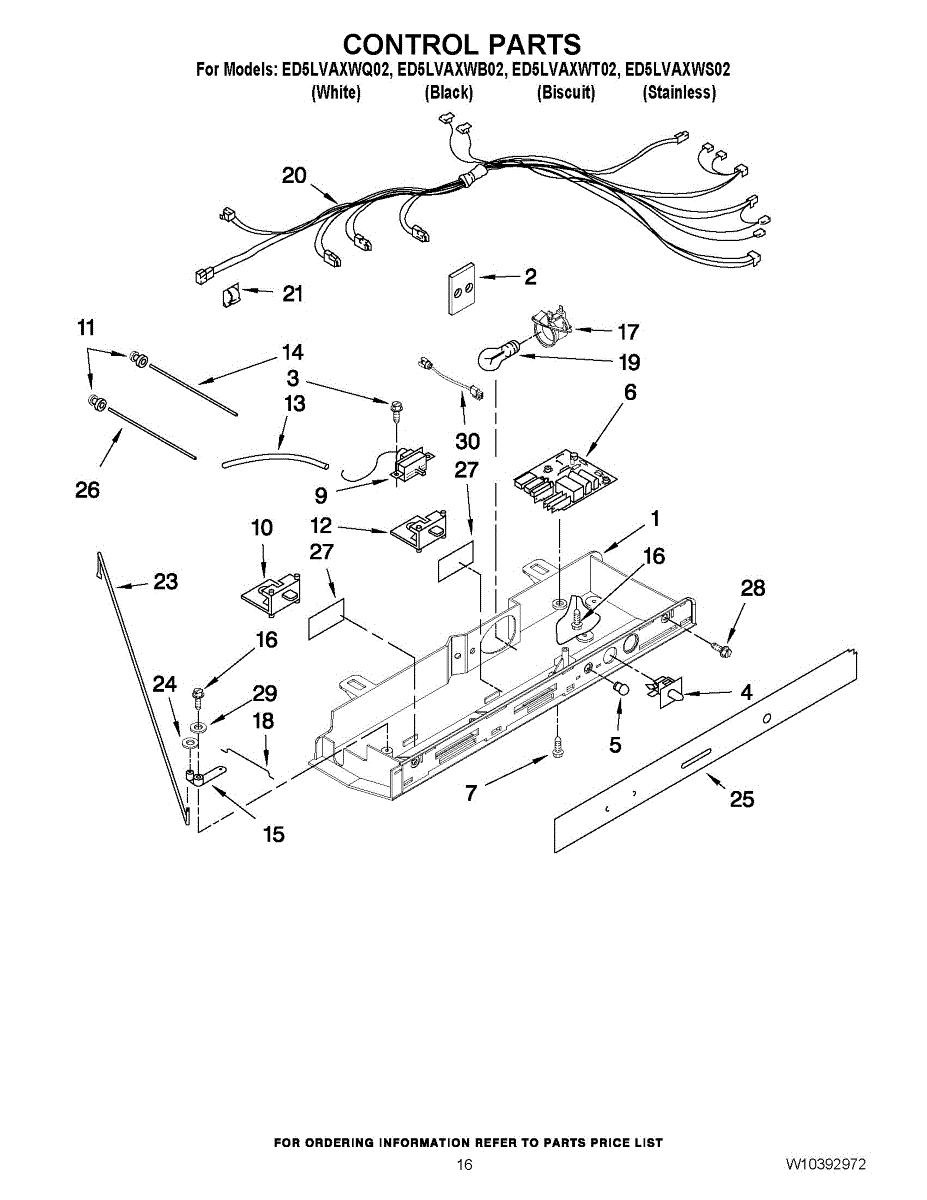

Parts for Whirlpool ED5LVAXWT02: 10 - Control Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

6 - 19 x .250

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator l

Freezer icing up or refrigerator too warm? This defrost control board coordinates defrost cycles to prevent frost buildup. DIY-friendly 15-30 min repair.

Replacement screw for securing appliance panels, mounting brackets, and internal assemblies. Restores tight connections when original screws are missing or damaged.

Refrigerator freezing food or not cooling? This temperature control thermostat regulates cooling cycles. DIY-friendly repair, takes 10-20 minutes.

Slide air control that regulates airflow between freezer and fresh food compartments. Replace if cracked, broken, or won't slide smoothly.

This slide is the support guide that helps a drawer or rack move smoothly and stay aligned, restoring dependable opening and closing. It replaces a worn or broken guide to improve fit and operation. What it does

• Guides and supports a drawer or r

Refrigerator not cooling consistently or compressor short cycling? This thermostat capillary tube shield protects temperature sensing. DIY repair.

This pivot arm is a direct-replacement lever that restores stable pivoting for the appliance door/assembly, helping the door open and close smoothly and reducing play or binding. It's a simple, durable part for reliable motion. What it does:

• Supports the door or related assembly and provides the pivot point for opening and closing
• Restores proper alignment and reduces excessive wobble or looseness at the hinge
• Eliminates binding, rubbing, or uneven movement that can cause noise or wear
• Works with the existing hinge hardware and mounting points to return smooth operation

• One pivot arm

• Disconnect power (and water if applicable) before beginning any repair
• Access may require opening the cabinet or removing the outer panel—use basic hand tools
• Reinstall using the original fasteners; ensure the arm is seated and moves freely after assembly

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Wire harness for refrigerators. Connects electrical components inside your unit. Replace if wires are frayed, connectors are damaged, or harness is broken.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order when original clip is broken, cracked, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Wire harness for side-by-side refrigerators. Connects electrical components like ice makers or dispensers. Replace if wires are damaged or frayed.
