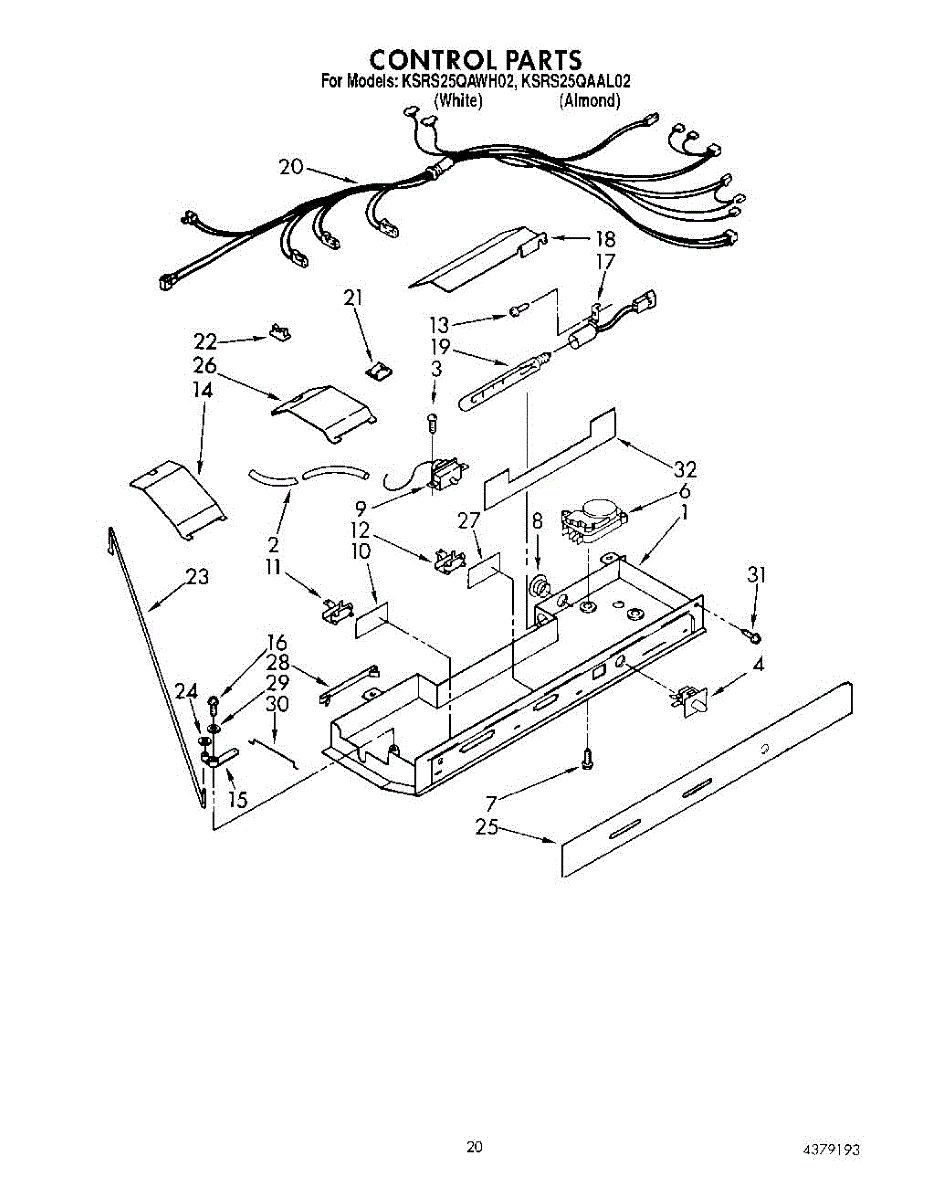

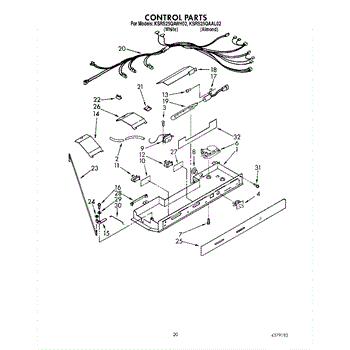

Parts for Kitchenaid KSRS25QAAL02: 12 - Control Parts

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

6 - 19 x .250

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

The Thermostat is an OEM part for Whirlpool refrigerators. This component is crucial for regulating the internal temperature of the refrigerator, ensuring that food and beverages are stored at the correct temperature for optimal freshness and safety. The thermostat monitors the temperature inside the refrigerator and signals the cooling system to turn on or off to maintain the desired temperature.

You should replace the thermostat if it becomes faulty or unresponsive. Causes of a bad thermostat can include regular wear and tear from frequent use, electrical issues, or exposure to extreme temperatures. Over time, these factors can lead to the thermostat failing to accurately monitor or control the refrigerator's temperature.

Symptoms of a bad thermostat include:

• The refrigerator not maintaining the correct temperature
• Food items freezing or spoiling faster than usual
• The refrigerator running constantly or not running at all
• Inconsistent temperature readings or fluctuations inside the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

This pivot arm is a direct-replacement lever that restores stable pivoting for the appliance door/assembly, helping the door open and close smoothly and reducing play or binding. It's a simple, durable part for reliable motion. What it does:

• Supports the door or related assembly and provides the pivot point for opening and closing
• Restores proper alignment and reduces excessive wobble or looseness at the hinge
• Eliminates binding, rubbing, or uneven movement that can cause noise or wear
• Works with the existing hinge hardware and mounting points to return smooth operation

• One pivot arm

• Disconnect power (and water if applicable) before beginning any repair
• Access may require opening the cabinet or removing the outer panel—use basic hand tools
• Reinstall using the original fasteners; ensure the arm is seated and moves freely after assembly

Color: Clear. This bulb is 40 watts and 120 volts.
