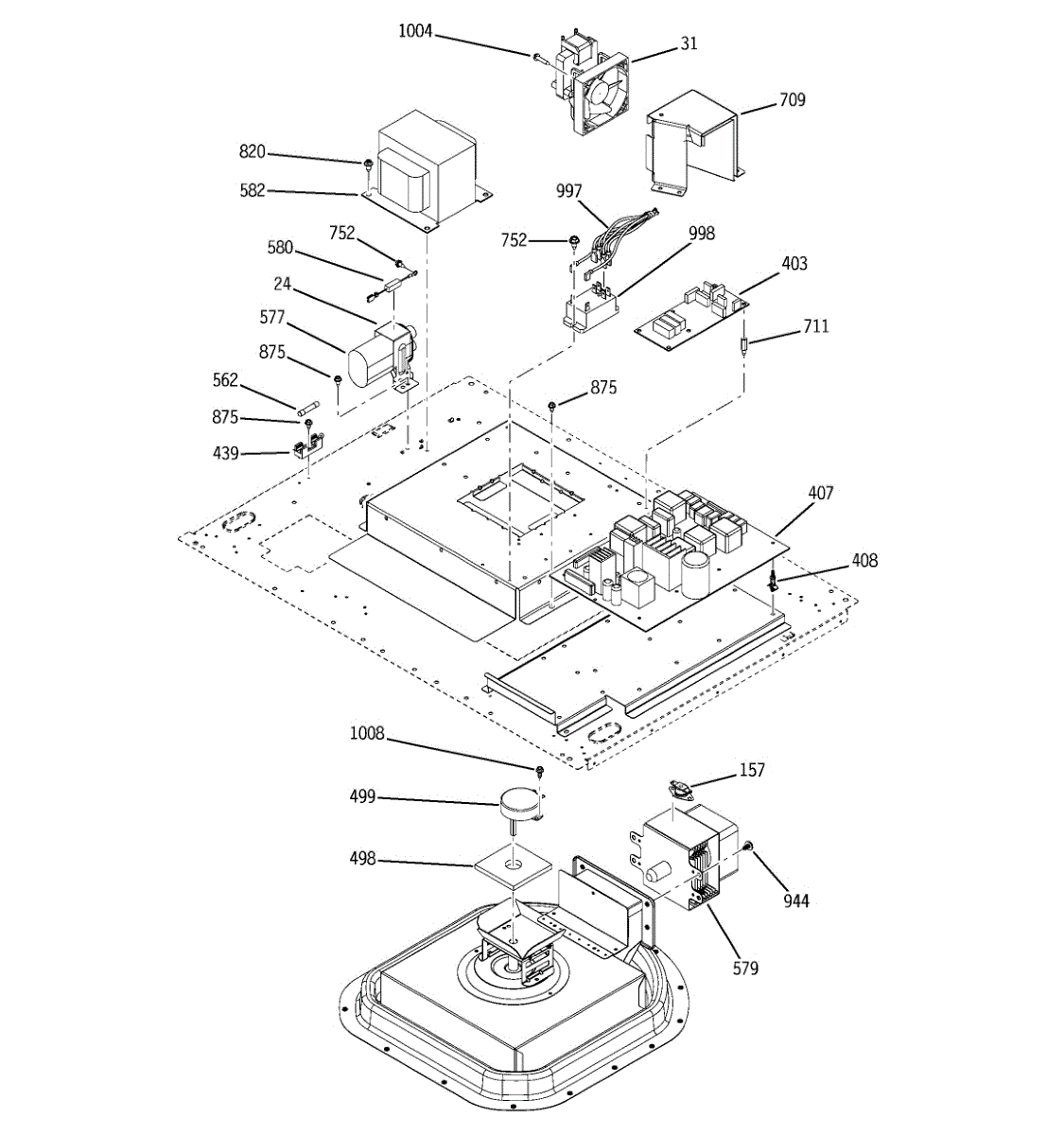

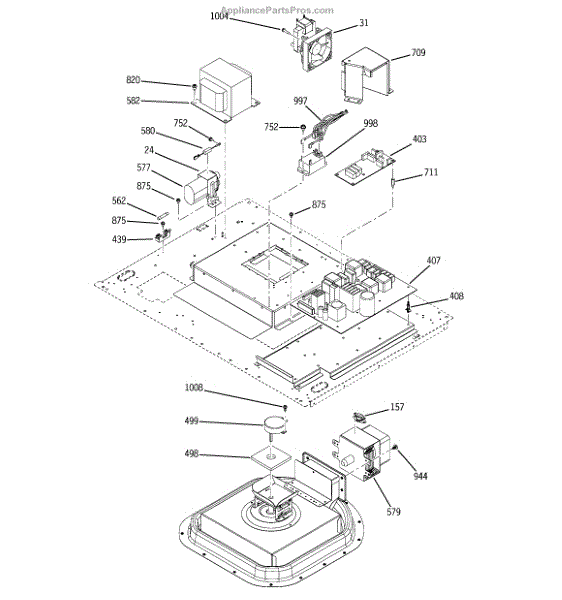

Parts for Kenmore 911.49224300 (91149224300, 911 49224300): Control Section Parts

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

Standoff bumper for ranges, ovens, and cooktops. Installs to provide spacing and support between components. Replace if cracked, broken, or missing.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

Microwave not heating? The magnetron generates the microwaves that heat food. Common repair for units that run but don't warm. DIY-friendly repair.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Package of 12

Black. 8-18 AB HXW 3/8
