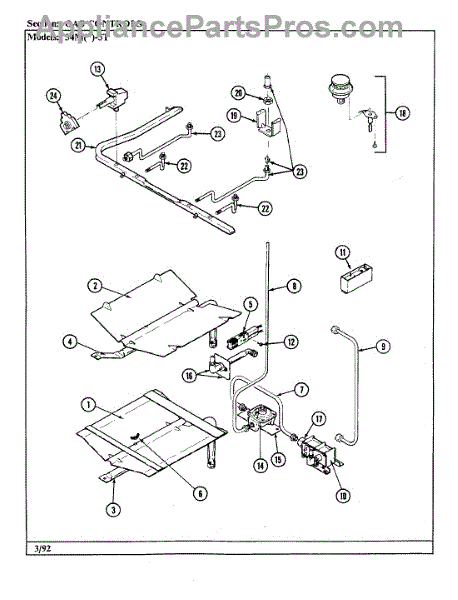

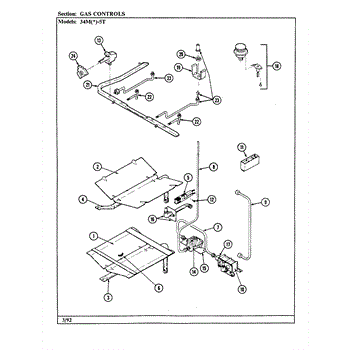

Parts for Magic Chef 34MK-5TKXW: 03 - Control System Parts

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

Size: 10-24X5/16-NI

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

To replace igniters complete burner heads must be replaced order by color: Black: WP3412D024-09 Grey: WP3412D024-26 Brown: WP3412D025-09 Matte Black: 12001495 Taupe: 3412D024-28.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-24X5/16-NI

This part has been discontinued and is no longer available.

This surface burner igniter switch mounts on the gas valve shaft and signals the spark module to ignite when you turn the knob. Replacing a worn or stuck switch restores consistent clicking and dependable lighting of the cooktop burners.

• Closes the ignition circuit as the knob is turned from OFF, triggering spark at the surface burners
• Typical symptoms: no spark/click at a burner, intermittent ignition, or continuous clicking when knobs are off
• Fits over the valve stem and connects to the spark harness

• Disconnect electrical power and shut off gas before servicing
• Remove the knob and access the control panel/top to reach the valve switch
• Note wire positions; transfer connectors one at a time and align the switch correctly on the valve shaft
• Test for proper spark at each burner before reassembly
