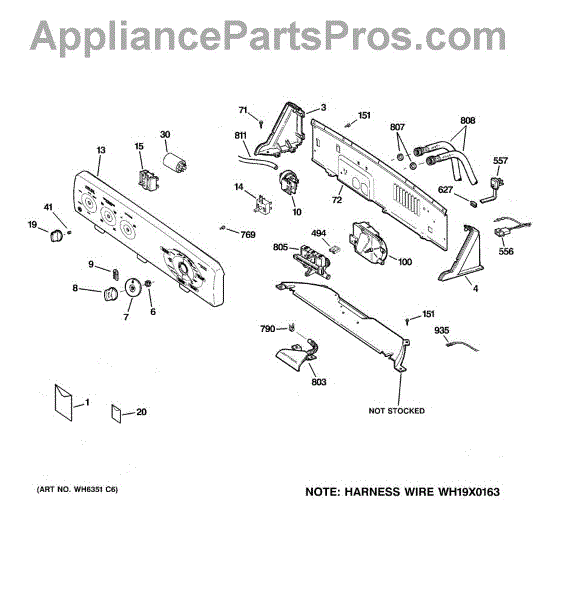

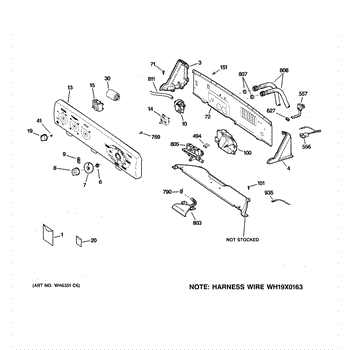

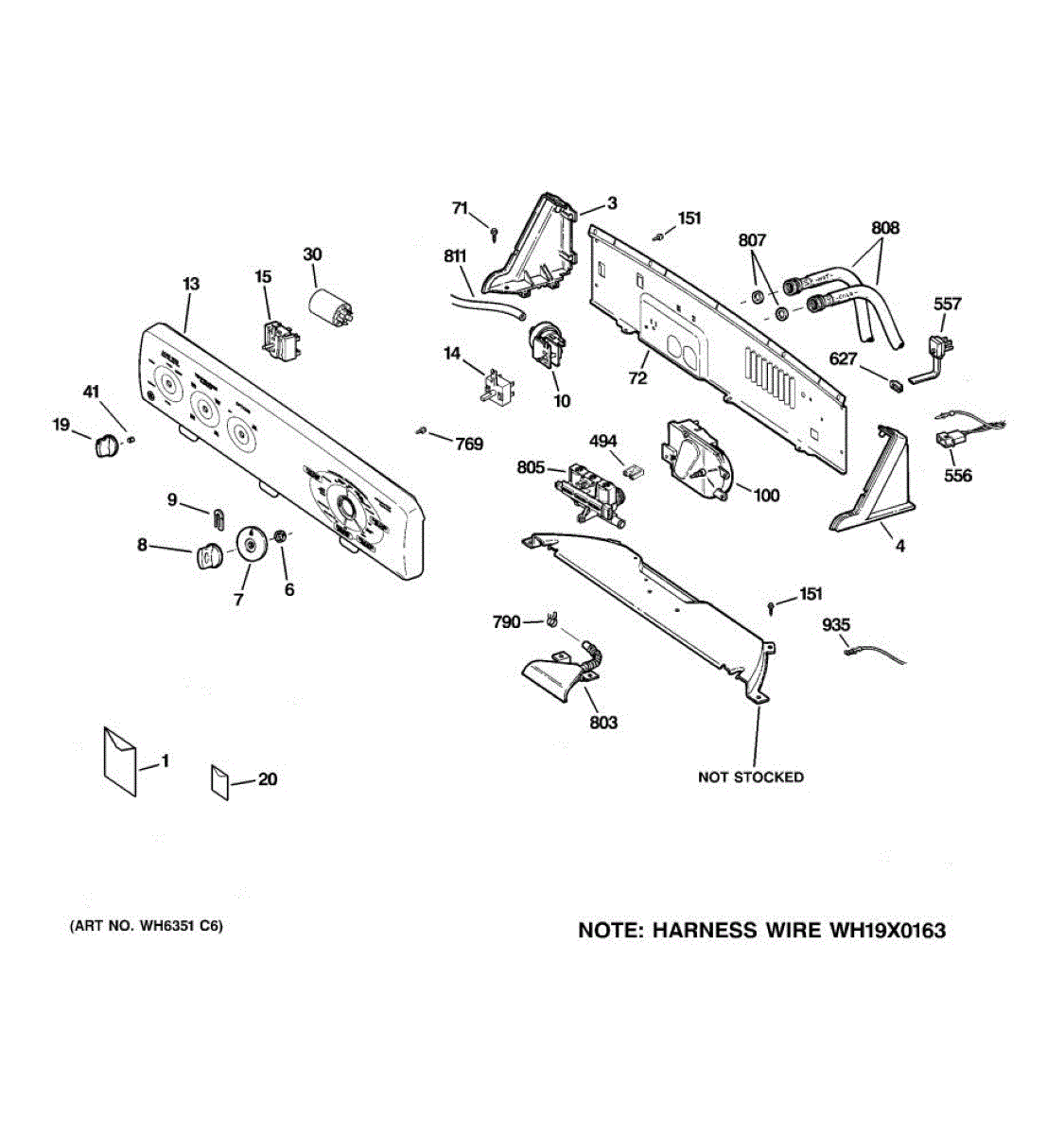

Parts for Ge WCSR4170G0CC: 01 - Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dial assembly replaces a worn, cracked, or missing rotary control dial and restores a clear, tactile control for selecting settings. It provides a direct, user-facing interface so you can change cycles, temperatures, or power levels with confidence. What it does:

• Replaces a damaged or broken dial so the control knob turns smoothly and stays in position
• Restores the pointer/indicator used to select settings on the control panel
• Helps resolve symptoms like a loose, cracked, missing, or hard-to-turn dial
• Works as the user interface component that transmits rotation to the underlying control mechanism

• One dial assembly

• Disconnect power or unplug the appliance before beginning work
• Remove the existing dial by pulling straight off or following the appliance disassembly steps for your model
• Handle the new dial carefully to avoid scratching or damaging the indicator surface

Color: Bisque. For white order WH01X10310. This knob includes the push on clip that attaches the knob to the switch. Removal can be done by pushing the clip under the knob with a very small flat head screw driver.

The Timer Knob Clip is an OEM part for GE washing machines. It secures the timer knob to the timer shaft, allowing users to set and adjust the washing cycle duration accurately.

You should replace the timer knob clip if it becomes worn out, broken, or lost. Common causes of a bad timer knob clip include regular use leading to wear and tear, physical damage from excessive force, or accidental breakage during maintenance or operation.

Symptoms of a bad timer knob clip include:

• The timer knob spinning freely without engaging
• Difficulty in setting or adjusting the timer
• The timer knob falling off or feeling loose
• The washing machine not starting or stopping cycles correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water level pressure switch monitors tub water height via air pressure and signals the controls to stop filling and move the cycle forward, helping prevent overfilling or underfilling for accurate load-size operation.

• Detects water level through the attached air hose and internal diaphragm contacts
• Signals the control to close inlet valves at the selected level and allows agitation/spin only when safe
• Common symptoms: continuous filling/overfilling, stops filling too early/low water level, or no agitate/spin because the tub is sensed as "full"
• May cause inconsistent or incorrect water levels across settings

• Disconnect power and turn off water supply before servicing
• Note or photograph wire positions and transfer to the new switch one-for-one
• Inspect the pressure hose for cracks, kinks, or blockages; ensure an airtight fit on the switch port
• Mount securely in the original location and test with a small load to verify proper fill and operation

This replacement control knob in bisque restores smooth, reliable control of your dryer's settings. It attaches to the control shaft so you can choose cycles and options when the original knob is cracked, stripped, or missing.

• Mounts to the D-shaped control/timer shaft to select dryer cycles and settings
• Replaces damaged or missing knob for proper engagement and feel
• Helps resolve knobs that spin freely, won't turn the shaft, feel loose, or fall off
• Refreshes the console with a matching bisque finish

• Disconnect power before servicing
• Pull the old knob straight off; remove any broken insert pieces from the shaft
• Align the flat side of the shaft with the knob insert and press on until fully seated
• Do not force; address that before installing the new knob

2 Pack

This power line filter sits between household AC and the washer's internal wiring to reduce electrical interference and help stabilize control operation. Replacing a failed filter may restore power and prevent nuisance breaker or GFCI trips.

• Filters incoming AC power to reduce electromagnetic interference reaching the control and motor circuits
• Helps prevent interference-related issues like erratic controls or random resets
• Failure may present as no power/blank display, intermittent power loss, or tripping a breaker/GFCI
• Visual clues of failure can include scorching, swelling, or a cracked housing

• Unplug the washer or switch off the circuit breaker before servicing; allow a few minutes for internal components to discharge
• Access the filter location (often near the control area or rear panel) per your model's service information
• Note wire locations (LINE, LOAD, and GROUND) and move one lead at a time to avoid miswiring
• Mount securely and ensure the ground connection to the cabinet is tight for proper operation

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

This is the drain solenoid housing for a dishwasher. It secures and aligns the drain solenoid on the pump assembly so the drain valve actuates consistently and the tub can empty at the right time.

• Positions and insulates the drain solenoid on the pump/drain mechanism
• Maintains proper alignment for reliable drain-valve actuation
• Common symptoms of a failed housing: won't drain or drains intermittently
• May present as loud humming from the solenoid or visible cracks/heat damage on the housing

• Disconnect power and water supply before servicing
• Access the pump area beneath the tub; note solenoid, lever, and linkage orientation
• Transfer the existing solenoid and any clips/brackets to the new housing; reuse fasteners
• Run a short cycle to ensure proper draining after reassembly

Harness to corset & shifter

8-18 hi/lo 5/8

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Water Inlet Fill Spout is an OEM replacement part for GE washing machines. It guides water from the inlet valve to the wash tub for a controlled flow. The fill spout is designed to reduce splashing and ensure that water is evenly distributed within the washing machine.

A bad Water Inlet Fill Spout can be due to cracks or damage from material wear, blockages caused by debris or mineral buildup, or issues with its connection to the inlet valve.

Symptoms of a malfunctioning Water Inlet Fill Spout include:

• Water splashing or leaking during the fill cycle
• Inefficient filling of the washing machine
• Visible damage or cracks in the spout
• Restricted water flow into the wash tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Inlet Valve is an OEM replacement part for GE washing machines. As the valve responsible for regulating water flow into the washer, it plays an important role in allowing cycles to run properly.

Causes may involve mineral buildup clogging the valve over time, damage to internal components, or deterioration of valve seals. Replacing with this genuine GE part ensures optimal water input for thorough, effective cleaning cycles.

Symptoms of a bad water inlet valve include:

• Inconsistent or interrupted water fill during cycles
• Prolonged fill times or inability to reach proper water levels
• Dripping or leaking from the inlet area of the washer
• Cycles failing to start or complete normally due to water issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

The Washer Fill Hoses are OEM parts for various washing machines, specifically designed to transport hot and cold water from the home's supply lines to the washer. These hoses are essential for the proper functioning of the washing machine, ensuring a steady and reliable flow of water during the wash and rinse cycles. Coming in packs of 2, each hose measures 5 ft.

Causes of bad washer fill hoses can include wear and tear over time, exposure to high water pressure, or damage from kinks and bends. Additionally, hoses can deteriorate due to exposure to harsh water conditions or chemical buildup.

Symptoms of bad washer fill hoses include:

• Leaks or puddles around the washing machine
• Reduced water flow into the washer
• Visible cracks or bulges in the hoses
• The washer taking longer than usual to fill with water

These washer fill hoses are compatible with a variety of washing machine brands and models, ensuring a secure and efficient water supply.

The Pressure Switch Hose is an OEM part for GE washing machines. It connects the pressure switch to the tub, allowing the switch to monitor the water level within the washing machine. This ensures the proper amount of water is used during each cycle for efficient washing and rinsing.

You should replace this pressure switch hose if it becomes cracked, clogged, or otherwise damaged. Common causes of a bad hose include wear and tear from repeated use, buildup of detergent or debris, and damage from improper handling or installation.

Symptoms of a bad pressure switch hose include:

• Washing machine not filling with water
• Overfilling or underfilling of the tub
• Inaccurate water level detection
• Error codes related to water level issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 terminals.
