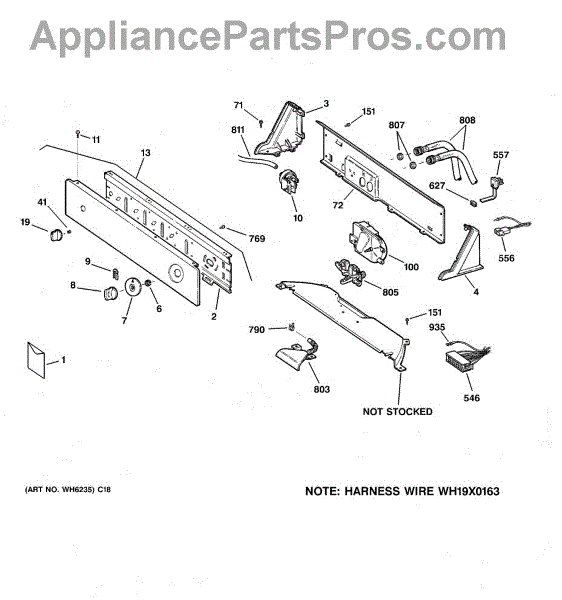

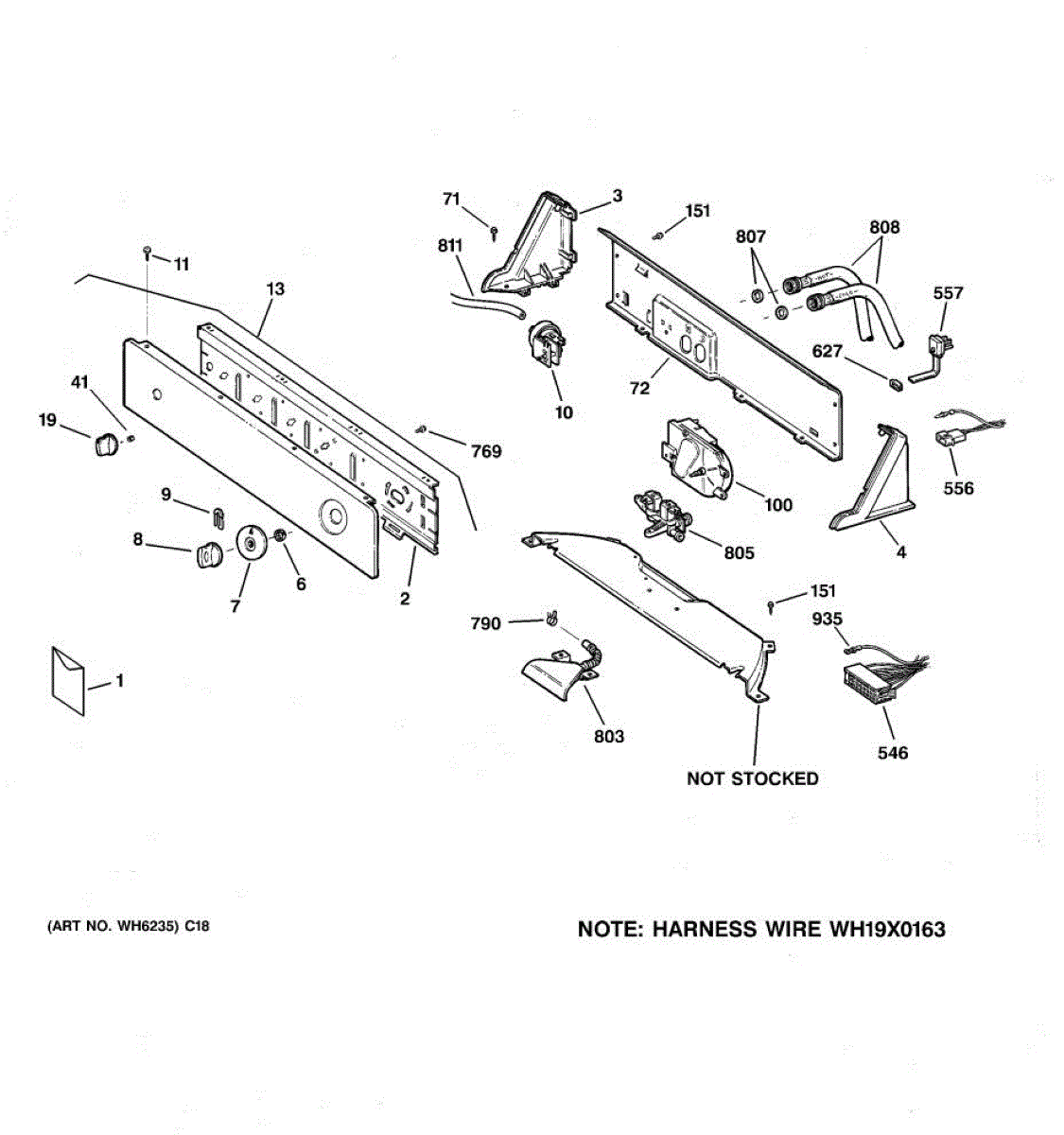

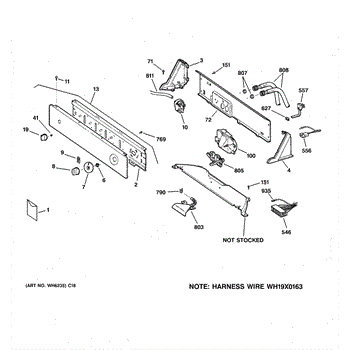

Parts for Ge WHDSR209D4WW: 01 - Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

White. Left hand side

White. Right had side

Compression ring for dial.

The Dial Assembly is an OEM part for GE washing machines. This component is used to select different wash cycles and settings on the control panel. It provides users with a tactile interface to customize their laundry experience according to their needs.

Common causes of a bad dial assembly include frequent use leading to wear and tear, physical damage from accidental impacts, or internal mechanical failure.

Symptoms of a bad dial assembly include:

• Difficulty in turning the dial
• The dial not staying in the selected position
• Unresponsive or erratic cycle selection
• Visible cracks or damage to the dial

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Knob Assembly is an OEM part for GE washing machines. This assembly includes the knob that users turn to select the washing machine's cycles and settings. It's a critical interface between the user and the appliance, allowing for easy operation and selection of the desired wash programs.

Over time, the control knob assembly can wear out or become damaged through regular use. This can lead to issues with selecting cycles or even prevent the machine from starting a cycle altogether.

Symptoms of a bad Control Knob Assembly include:

• The knob feels loose or does not engage with the settings
• Difficulty in selecting wash cycles
• The washing machine fails to start when the knob is turned
• Visible cracks or damage to the knob or its housing

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Timer Knob Clip is an OEM part for GE washing machines. It secures the timer knob to the timer shaft, allowing users to set and adjust the washing cycle duration accurately.

You should replace the timer knob clip if it becomes worn out, broken, or lost. Common causes of a bad timer knob clip include regular use leading to wear and tear, physical damage from excessive force, or accidental breakage during maintenance or operation.

Symptoms of a bad timer knob clip include:

• The timer knob spinning freely without engaging
• Difficulty in setting or adjusting the timer
• The timer knob falling off or feeling loose
• The washing machine not starting or stopping cycles correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water level pressure switch monitors tub water height via air pressure and signals the controls to stop filling and move the cycle forward, helping prevent overfilling or underfilling for accurate load-size operation.

• Detects water level through the attached air hose and internal diaphragm contacts
• Signals the control to close inlet valves at the selected level and allows agitation/spin only when safe
• Common symptoms: continuous filling/overfilling, stops filling too early/low water level, or no agitate/spin because the tub is sensed as "full"
• May cause inconsistent or incorrect water levels across settings

• Disconnect power and turn off water supply before servicing
• Note or photograph wire positions and transfer to the new switch one-for-one
• Inspect the pressure hose for cracks, kinks, or blockages; ensure an airtight fit on the switch port
• Mount securely in the original location and test with a small load to verify proper fill and operation

Size: 8-18 ab.

The Selector Knob is an OEM part for GE washing machines. This knob is used to choose different wash cycles and settings on the control panel, allowing users to customize their laundry preferences. It is designed to fit securely onto the control shaft and provide smooth operation for selecting various options.

Over time, selector knobs can wear out or become damaged due to frequent use or accidental impacts. Causes of a bad selector knob can include cracked or broken plastic, stripped or worn-out internal components, or a loose fit on the control shaft.

Symptoms of a bad selector knob include:

• Difficulty in turning the knob or selecting settings
• Knob spinning freely without changing settings
• Knob falling off or feeling loose
• Visible cracks or damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

Harness to corset & shifter

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Water Inlet Fill Spout is an OEM replacement part for GE washing machines. It guides water from the inlet valve to the wash tub for a controlled flow. The fill spout is designed to reduce splashing and ensure that water is evenly distributed within the washing machine.

A bad Water Inlet Fill Spout can be due to cracks or damage from material wear, blockages caused by debris or mineral buildup, or issues with its connection to the inlet valve.

Symptoms of a malfunctioning Water Inlet Fill Spout include:

• Water splashing or leaking during the fill cycle
• Inefficient filling of the washing machine
• Visible damage or cracks in the spout
• Restricted water flow into the wash tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Inlet Valve is an OEM part for GE washing machines. This component is crucial for controlling the flow of water into the washer during the wash and rinse cycles. It works by opening and closing the solenoids to allow the appropriate amount of hot or cold water to enter the washing machine, based on the selected settings.

Symptoms of a failing Water Inlet Valve include:

• The washing machine not filling with water or filling very slowly
• The washer filling with water even when it is turned off
• Water leaking from the valve area
• The washing machine displaying error codes related to water supply issues
• Inconsistent water temperatures during cycles

Causes of a bad water inlet valve can include mineral deposits or debris clogging the valve, wear and tear on the solenoid coils, or electrical issues such as faulty wiring or connections.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.

Includes 12 washers.

The Washer Fill Hoses are OEM parts for various washing machines, specifically designed to transport hot and cold water from the home's supply lines to the washer. These hoses are essential for the proper functioning of the washing machine, ensuring a steady and reliable flow of water during the wash and rinse cycles. Coming in packs of 2, each hose measures 5 ft.

Causes of bad washer fill hoses can include wear and tear over time, exposure to high water pressure, or damage from kinks and bends. Additionally, hoses can deteriorate due to exposure to harsh water conditions or chemical buildup.

Symptoms of bad washer fill hoses include:

• Leaks or puddles around the washing machine
• Reduced water flow into the washer
• Visible cracks or bulges in the hoses
• The washer taking longer than usual to fill with water

These washer fill hoses are compatible with a variety of washing machine brands and models, ensuring a secure and efficient water supply.

The Pressure Switch Hose is an OEM part for GE washing machines. It connects the pressure switch to the tub, allowing the switch to monitor the water level within the washing machine. This ensures the proper amount of water is used during each cycle for efficient washing and rinsing.

You should replace this pressure switch hose if it becomes cracked, clogged, or otherwise damaged. Common causes of a bad hose include wear and tear from repeated use, buildup of detergent or debris, and damage from improper handling or installation.

Symptoms of a bad pressure switch hose include:

• Washing machine not filling with water
• Overfilling or underfilling of the tub
• Inaccurate water level detection
• Error codes related to water level issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 terminals.
