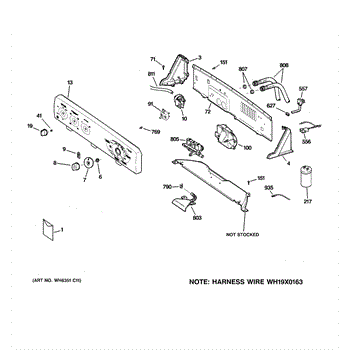

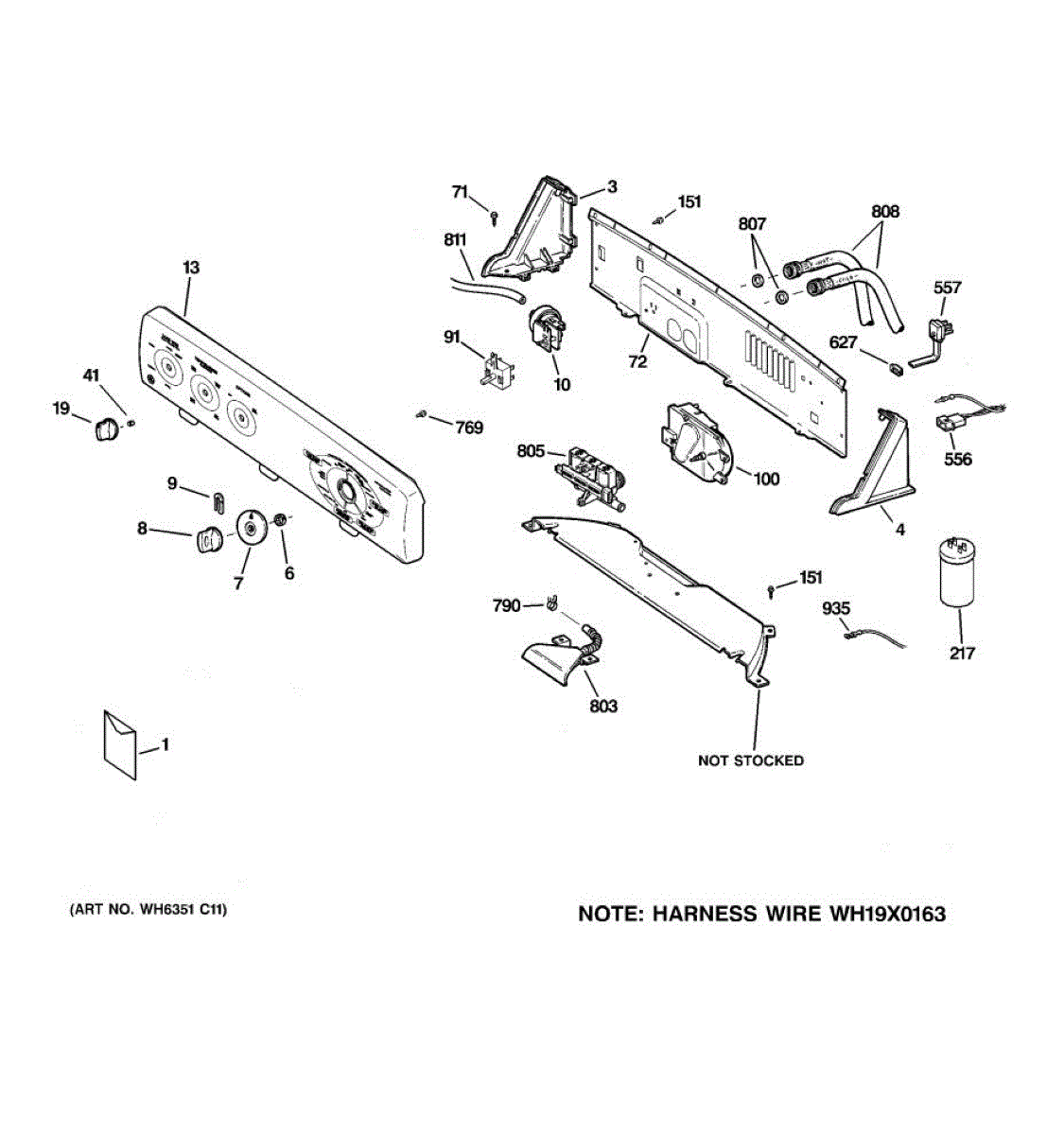

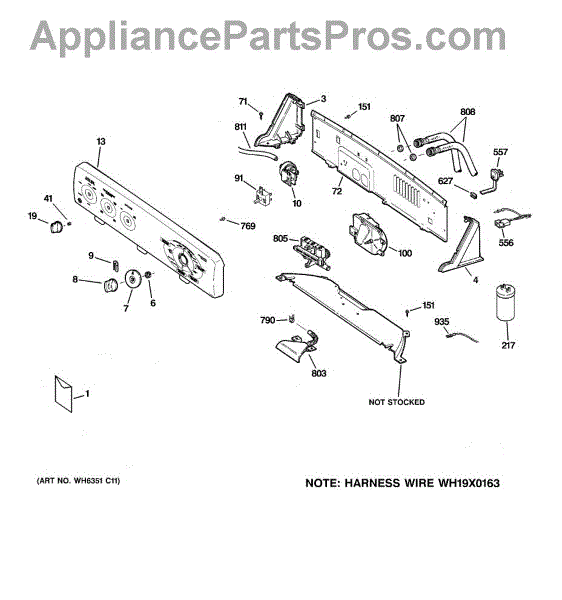

Parts for Ge WLSR2200J8WW: 01 - Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This left-hand end cap is a direct-fit replacement part that helps secure the washer's left-side assembly and restores proper cabinet/drum alignment for smoother operation and reduced vibration. What it does:

• Caps and protects the left-side end of the washer assembly to prevent wear and debris entry
• Helps maintain proper alignment of the washer drum/cabinet on the left side
• Reduces noise, rubbing, or wobbling caused by a damaged or missing end cap
• Matches OEM fit and mounting points for straightforward replacement

• Disconnect power and water to the washer before starting any repair
• Basic hand tools may be required; some disassembly of the cabinet or front panel could be needed
• Inspect adjacent components (gaskets, seals, fasteners) for wear while replacing the end cap

This right-side end cap is a replacement trim/closure piece designed for the washer cabinet to restore proper fit and finish and help keep internals protected from debris. It replaces a damaged, cracked or missing end cap. What it does:

• Covers and protects the washer's right-side edge or mounting area from dust and moisture
• Restores a flush appearance where the original end cap was cracked or broken
• Helps prevent snagging on clothing or towels from a damaged trim piece
• Can reduce rattles or vibration caused by a loose or missing end cap

• Disconnect power to the appliance before beginning any work
• Usually secured with screws or clips; basic hand tools are typically all that's required
• Align the part to the right-side mounting location and fasten securely without over-tightening

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Timer Dial is an OEM part for GE washing machines. It allows the user to set and control the various wash cycles by turning the dial to the desired position. This component interfaces with the timer mechanism, enabling precise control over the wash, rinse, and spin cycles.

The timer dial may need to be replaced if it becomes cracked, stripped, or otherwise damaged. Causes of a bad timer dial can include frequent use, accidental impacts, or exposure to harsh cleaning chemicals that can weaken the plastic.

Symptoms of a bad timer dial include:

• Difficulty turning the dial or selecting the correct cycle
• The dial not staying in place or slipping
• The washing machine not starting or progressing through cycles properly
• Visible cracks or damage to the dial

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Knob Assembly is an OEM part for GE washing machines. This assembly includes the knob that users turn to select the washing machine's cycles and settings. It's a critical interface between the user and the appliance, allowing for easy operation and selection of the desired wash programs.

Over time, the control knob assembly can wear out or become damaged through regular use. This can lead to issues with selecting cycles or even prevent the machine from starting a cycle altogether.

Symptoms of a bad Control Knob Assembly include:

• The knob feels loose or does not engage with the settings
• Difficulty in selecting wash cycles
• The washing machine fails to start when the knob is turned
• Visible cracks or damage to the knob or its housing

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Timer Knob Clip is an OEM part for GE washing machines. It secures the timer knob to the timer shaft, allowing users to set and adjust the washing cycle duration accurately.

You should replace the timer knob clip if it becomes worn out, broken, or lost. Common causes of a bad timer knob clip include regular use leading to wear and tear, physical damage from excessive force, or accidental breakage during maintenance or operation.

Symptoms of a bad timer knob clip include:

• The timer knob spinning freely without engaging
• Difficulty in setting or adjusting the timer
• The timer knob falling off or feeling loose
• The washing machine not starting or stopping cycles correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water level pressure switch monitors the tub's fill level and tells the washer when to stop filling and move to the next step. Replace it to restore accurate water levels and dependable cycle progress.

• Monitors air pressure from the tub to determine the selected water level
• Signals the control to open/close the inlet valves for proper fill
• Allows agitation and spin only after the correct level is reached
• Typical symptoms: overfilling or continuous filling, underfilling/low water level, cycle won't start or advance to wash/spin

What's included: 1 pressure switch Install notes:

• Unplug the washer and turn off the water supply before servicing
• Access the control console; note wire positions or take a photo and transfer connectors one at a time
• Move the pressure hose to the new switch; ensure the hose is clear, undamaged, and fully seated
• Secure the switch, reassemble, and run a fill test to confirm proper shutoff

The Control Knob is an OEM replacement part for GE washing machines. This component allows you to select and control the various cycles, settings, and functions of your washer.

Symptoms that may indicate the need to replace the control knob include:

• The knob becoming loose, difficult to turn, or falling off entirely
• Cracks, damage, or excessive wear to the knob itself
• Inability to properly select or change wash cycles and settings

Causes of a faulty control knob can include physical impact or mishandling, general wear and tear over extended use, or issues with the internal mechanisms that connect the knob to the washer controls.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore washer models.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

The Rotary Temperature Switch is an OEM replacement part for GE washers. This switch controls the temperature setting during wash cycles, accommodating various fabric types.

Causes of a bad rotary temperature switch can include wear and tear from frequent use, electrical failures, or damage due to moisture exposure. Over time, the internal components of the switch may degrade, leading to incorrect temperature settings or unresponsive controls.

Symptoms of a bad temperature switch include:

• Inability to select temperature settings
• Wash cycles running at an unexpected temperature
• Fluctuations in water temperature during the wash
• Constantly running hot or cold water into the tub

This OEM GE replacement part is compatible with Hotpoint, RCA, and some Kenmore branded washers as well.

This electronic control board manages key washer operations so cycles start, run, and finish as designed. Replacing a faulty board can restore proper agitation and spin performance and resolve intermittent or no-run behavior. What it does:

• Regulates drive motor operation for agitation and spin
• Processes inputs from sensors/switches to carry out selected cycles
• Coordinates start/stop, speed, and direction commands to the motor
• Common symptoms of failure: won't agitate or spin, intermittent stopping, motor won't run, visible damage on the board, or related error codes

What's included:

• 1 electronic control board

Install notes:

• Disconnect power before servicing; observe ESD precautions and handle the board by the edges
• Note/photograph wiring; transfer any jumpers, brackets, or mounting hardware from the old board if applicable
• Ensure all connectors are fully seated and harnesses are undamaged before powering up
• Run diagnostics or recalibration if required by the model's service/tech sheet after installation

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

The Capacitor is an OEM part for GE washing machines. It stores and releases electrical energy to help start the motor and regulate its speed, ensuring the washer operates efficiently and reliably. This component is crucial for maintaining the performance and longevity of the washing machine.

Causes of a bad capacitor can include electrical surges, wear and tear from regular use, or physical damage due to impact. Over time, capacitors can degrade, leading to reduced functionality or complete failure. Regular inspection can help identify potential issues early.

Symptoms of a bad capacitor include:

• The washer not starting or struggling to start
• Motor running inconsistently or not at full speed
• Unusual noises during operation
• Error codes related to motor function

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Harness to corset & shifter

8-18 hi/lo 5/8

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Water Inlet Fill Spout is an OEM replacement part for GE washing machines. It guides water from the inlet valve to the wash tub for a controlled flow. The fill spout is designed to reduce splashing and ensure that water is evenly distributed within the washing machine.

A bad Water Inlet Fill Spout can be due to cracks or damage from material wear, blockages caused by debris or mineral buildup, or issues with its connection to the inlet valve.

Symptoms of a malfunctioning Water Inlet Fill Spout include:

• Water splashing or leaking during the fill cycle
• Inefficient filling of the washing machine
• Visible damage or cracks in the spout
• Restricted water flow into the wash tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Water Valve is an OEM part for GE washing machines. This valve controls the flow of hot, cold, and warm water into the washing machine, ensuring the proper temperature and water level for each wash cycle. It is a critical component for the accurate filling and rinsing functions of the washer.

Replace the triple water valve if it becomes faulty due to mineral buildup, wear and tear, or electrical issues.

Symptoms of a bad triple water valve include:

• The washer not filling with water
• Incorrect water temperatures during cycles
• Water leaking from the valve
• Slow or uneven water flow into the machine

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

The Washer Fill Hoses are OEM parts for various washing machines, specifically designed to transport hot and cold water from the home's supply lines to the washer. These hoses are essential for the proper functioning of the washing machine, ensuring a steady and reliable flow of water during the wash and rinse cycles. Coming in packs of 2, each hose measures 5 ft.

Causes of bad washer fill hoses can include wear and tear over time, exposure to high water pressure, or damage from kinks and bends. Additionally, hoses can deteriorate due to exposure to harsh water conditions or chemical buildup.

Symptoms of bad washer fill hoses include:

• Leaks or puddles around the washing machine
• Reduced water flow into the washer
• Visible cracks or bulges in the hoses
• The washer taking longer than usual to fill with water

These washer fill hoses are compatible with a variety of washing machine brands and models, ensuring a secure and efficient water supply.

The Pressure Switch Hose is an OEM part for GE washing machines. It connects the pressure switch to the tub, allowing the switch to monitor the water level within the washing machine. This ensures the proper amount of water is used during each cycle for efficient washing and rinsing.

You should replace this pressure switch hose if it becomes cracked, clogged, or otherwise damaged. Common causes of a bad hose include wear and tear from repeated use, buildup of detergent or debris, and damage from improper handling or installation.

Symptoms of a bad pressure switch hose include:

• Washing machine not filling with water
• Overfilling or underfilling of the tub
• Inaccurate water level detection
• Error codes related to water level issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 terminals.
