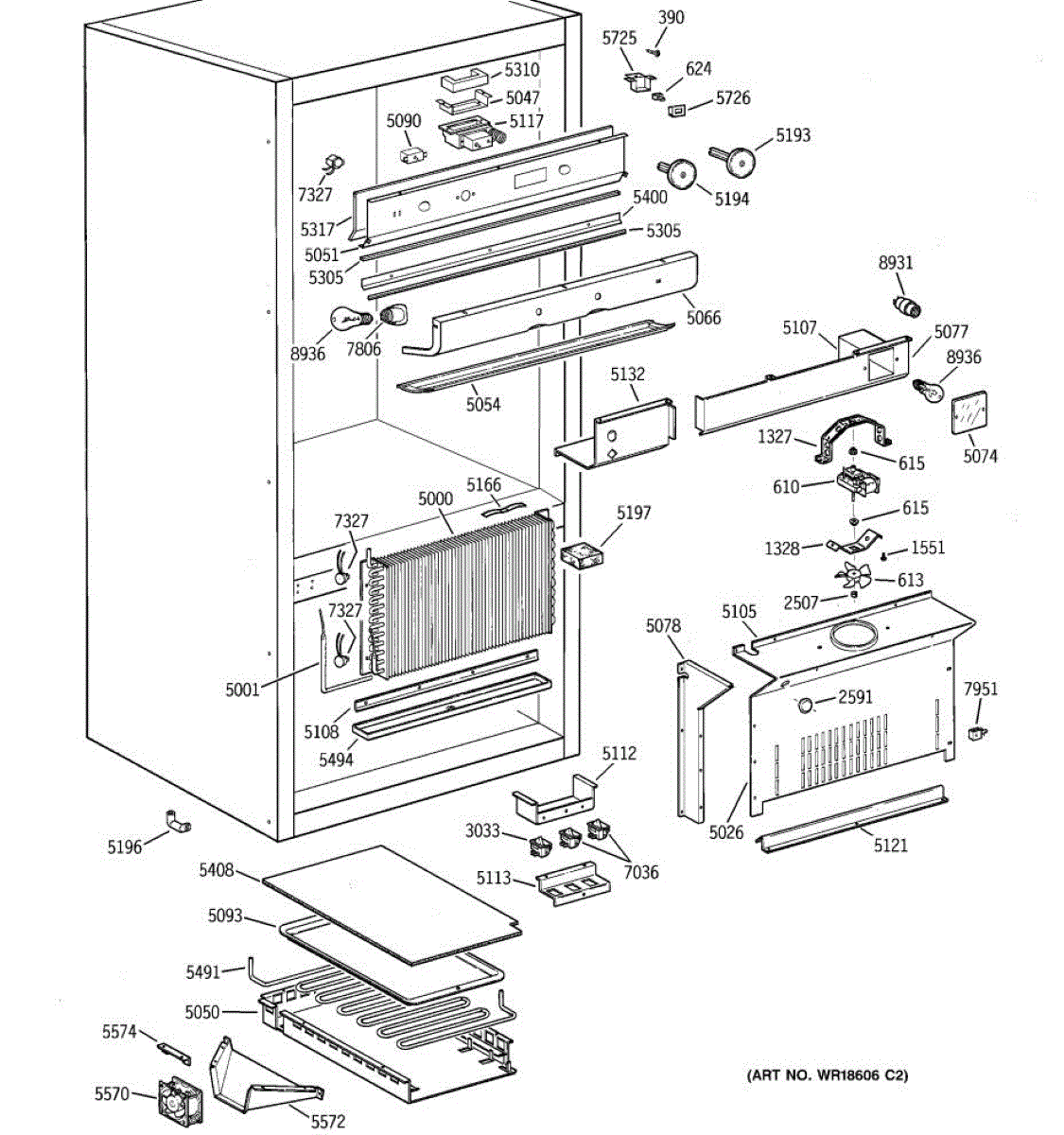

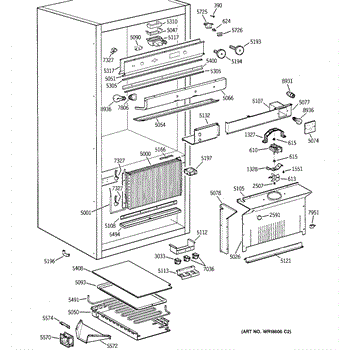

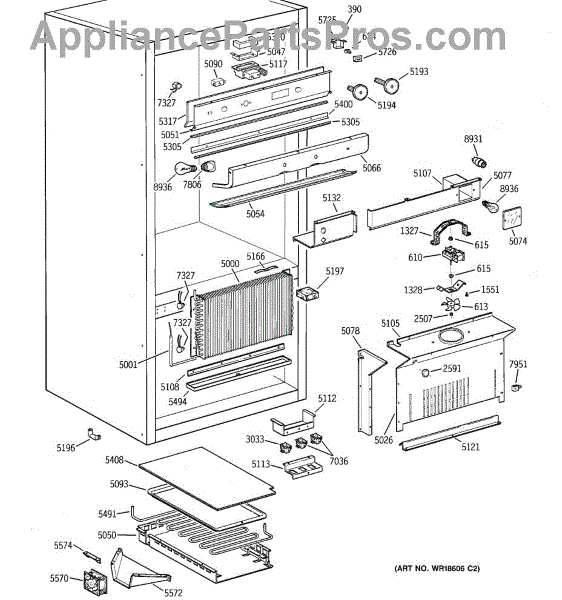

Parts for Ge ZICS36NABSSLH: 02 - Controls & Components Parts

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

This is the rear fan bracket. For front bracket use WR2X7137.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost heater warms the evaporator coils during the automatic defrost cycle to melt frost and keep air moving. When it fails, ice builds up, airflow drops, and temperatures rise in the fresh food compartment.

• Heats the evaporator to clear frost/ice so the fan can circulate air
• Helps maintain stable temperatures and normal airflow between freezer and refrigerator sections
• Common signs of failure: heavy frost on the back freezer panel, warm refrigerator/cool freezer, fan noise from ice contact, long run times
• Works with the defrost thermostat and control to complete defrost cycles

• Unplug the refrigerator before service; use caution around sharp evaporator fins
• Access the evaporator behind the freezer's rear panel and fully defrost ice before replacement
• Route wiring exactly as original; avoid kinking or stressing the heating element
• After reassembly, restore power and verify a successful defrost cycle per service procedures

This evaporator cover replaces the bottom refrigerator/freezer evaporator housing to protect internal components and help direct airflow for consistent cooling. Restores proper airflow paths and shields the evaporator from debris. What it does:

• Covers and protects the evaporator coil and associated components in the lower section
• Directs cold airflow through the evaporator chamber to support even cooling
• Helps prevent frost and ice buildup by maintaining correct airflow patterns
• Can reduce intermittent temperature issues or moisture accumulating inside the compartment

• Disconnect power to the appliance before starting any repair
• Remove surrounding panels or shelving to access the evaporator area; support the cover while unfastening mounting hardware
• Inspect and replace any damaged mounting clips or insulation as needed
• If the evaporator area is iced, fully defrost and dry the compartment before installing the new cover

This bracket damper secures the refrigerator air-damper assembly, keeping the damper aligned so the fridge can direct cold air where it's needed. A correctly mounted bracket helps maintain steady airflow and consistent cooling. What it does:

• Holds the air-damper or damper door assembly in place so the damper opens and closes smoothly
• Prevents the damper from sagging or binding, which can restrict airflow
• Helps reduce uneven temperatures caused by misaligned or loose damper components
• Can stop rattling or vibration noise when the damper is properly supported

• One bracket damper

• Disconnect power to the appliance before beginning work
• Handle plastic damper components carefully to avoid cracking or deformation
• Replace any damaged fasteners or clips with OEM-equivalent parts for secure mounting

This drain baffle guides defrost water into the refrigerator drain to prevent puddling and ice buildup, keeping the fresh food area dry and reducing odors. It fits into the freezer/refrigerator drain opening and channels meltwater safely away. What it does:

• Directs defrost and condensation water into the appliance drain to prevent pooling.
• Helps reduce ice formation and standing water inside the fresh food or freezer compartment.
• Minimizes odors by keeping water from collecting under shelves or liners.
• Works with the drain tube and heater to maintain proper drainage.

• Disconnect power before accessing interior panels or removing shelves.
• Remove shelves and the crisper/evaporator cover as needed to reach the drain area.
• Clear any ice or debris from the drain before installing the new baffle to ensure proper flow.

This evaporator trough catch secures the defrost/drip trough under the evaporator to guide melting water into the refrigerator drain, helping prevent water from pooling inside the freezer or cabinet. Fits as a direct replacement for the original part. What it does

• Holds the evaporator/drip trough in the correct position so defrost water flows to the drain.
• Helps prevent water from leaking or pooling inside the freezer compartment.
• Supports proper defrost drainage to reduce the chance of ice buildup around the evaporator area.
• Works with existing trough and drain components to restore normal water flow.

• 1 evaporator trough catch

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Access usually requires removing the evaporator cover or rear freezer liner; keep parts and fasteners organized.
• Handle evaporator and surrounding components carefully to avoid damage to fins, tubing, or gaskets.
• Replace any additional damaged or corroded parts found while servicing for reliable operation.

This small replacement wire retainer secures heater and sensor wiring to the evaporator area, preventing wire contact with sharp edges and maintaining proper routing for reliable defrost operation and safe airflow. What it does:

• Holds heater and thermostat/sensor wires in place near the evaporator assembly
• Prevents chafing, pinching, or accidental contact with moving or hot components
• Helps maintain correct wire routing for consistent defrost performance and temperature sensing
• Reduces risk of intermittent connections or short circuits caused by loose wiring

• Designed for a simple clip-in or screw-mount installation; inspect mounting point for clips or fasteners before replacing
• Disconnect power to the appliance before accessing the evaporator compartment
• Handle wiring gently and ensure secure seating of wires in the retainer before reassembling panels
• If any wiring or insulation is damaged, replace or repair the wiring harness per manufacturer guidance

This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged

Power saver switch housing cover.

This defrost thermostat senses evaporator temperature and shuts off the defrost heater once the coil warms, preventing overheating. Replacing a failed thermostat restores proper defrosting to stop ice buildup and stabilize refrigerator temperatures.

• Controls the defrost heater based on evaporator coil temperature
• Closes when cold to allow defrost; opens as the coil warms to end the cycle
• Protects against overheating during defrost
• Failure may cause frost/ice on the back wall or evaporator, poor cooling, or a heater that never energizes

• Disconnect power before service; evaporator fins and sheet metal are sharp
• Access the evaporator by removing the freezer rear panel; note wire routing and mounting
• Position the new thermostat in the same location for tight contact with the tubing; reconnect wires exactly as found
• Reassemble and monitor a defrost cycle to confirm heater operation

This part has been discontinued by the manufacturer and is no longer available.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.
