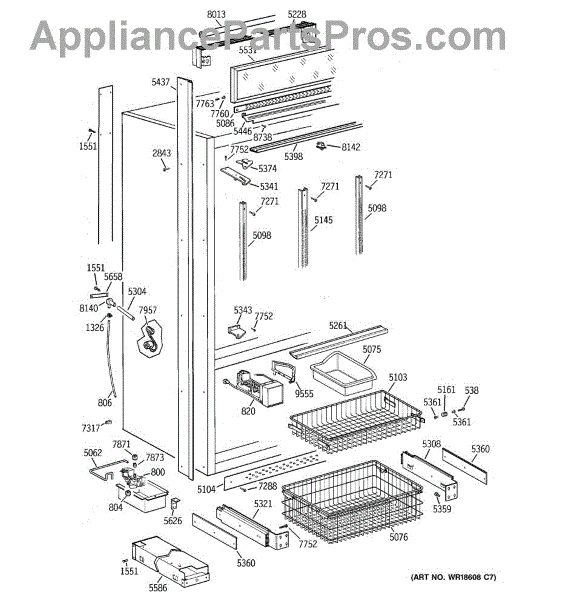

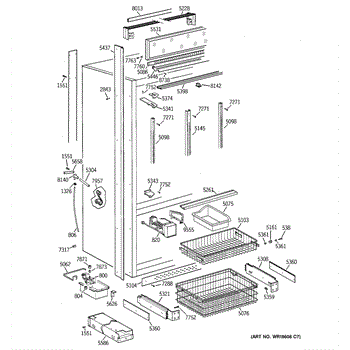

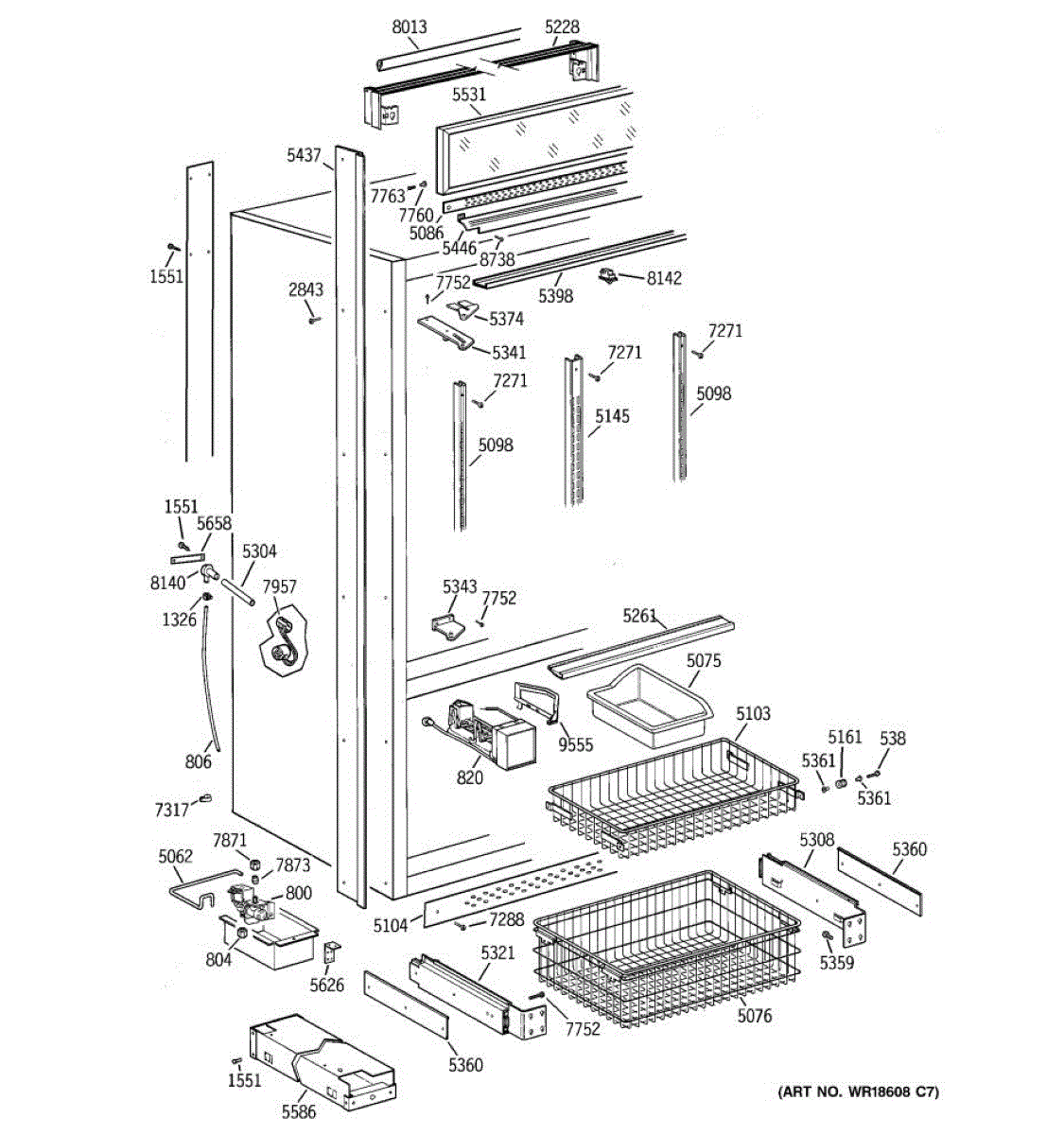

Parts for Ge ZICS36NABSSLH: 03 - Freezer Section, Trim & Components Parts

This is a #10-32 x 3/4 truss-head screw designed to fasten small appliance panels and components securely. It replaces missing or worn fasteners to restore stable mounting and reduce rattles or movement. What it does:

• Secures trim, control panels, brackets, and small assemblies
• Restores tight mounting to stop panel vibration or rattling
• Keeps electrical and mechanical components properly aligned
• Works where a #10-32 machine screw with a short 3/4" length and truss head is required

• Disconnect power before working on the appliance
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until secure; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized for reinstallation

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

This inlet tube routes water from the cabinet supply to the refrigerator's water valve, restoring proper flow for the ice maker and dispenser. It replaces a damaged, cracked, or corroded inlet connection to stop leaks and restore service. What it does:

• Carries incoming water to the refrigerator water valve assembly
• Stops leaks caused by cracks or corrosion in the original inlet tube
• Helps restore water delivery to the ice maker and dispenser when the inlet tube is the failure point
• Works with the valve mounting area to maintain a sealed water path

• One water valve inlet tube

• Shut off the household water supply and unplug the appliance before starting
• Inspect fittings and clamps; reuse only if undamaged or replace if corroded
• Hand-tighten fittings and check for leaks; avoid over-tightening plastic fittings

This ice bucket is the removable plastic bin that collects and stores ice from the ice maker, keeping cubes contained and easy to access. It restores proper ice storage and makes removing or pouring ice simple. What it does:

• Holds and stores ice produced by the freezer ice maker so cubes stay contained and sanitary.
• Guides ice from the ice maker into the storage bin to prevent spills and jams.
• Allows easy removal for scooping, pouring, or cleaning when ice build-up occurs.
• Commonly replaced when the bucket is cracked, warped, missing, or no longer seats properly.

• One ice bucket.

• Unplug or disconnect power to the appliance before servicing the ice maker area.
• Slide the bucket into the freezer compartment aligning tabs or guides; do not force.
• Handle plastic tabs and mounting points carefully to avoid breakage.
• Inspect the ice maker assembly and chute for ice buildup or damage.

This freezer drawer slide is installed on refrigerators with bottom drawer freezers. The slide makes it possible to open the drawer without any jamming.If there is noticeable difficulty opening the slide-out freezer, or it is unable to be opened at all, the problem is likely with the slide rail. Inspect the length of the slide rail and if there are any broken pieces or missing screws, this is the culprit. If the damage is unable to be fixed by replacing a few screws, a replacement will need to be ordered. Begin the installation by removing the old pieces of slide rail. Prepare the screws for the new installation. Fasten the new slide rail to the refrigerator by inserting the screws in their proper mounting. To reinsert the freezer drawer, tip at an angle and insert into the slide rail.This freezer drawer slide rail is a genuine OEM replacement part and is sourced directly from GE. The product listed is only available individually and is not included with any other parts or the original appliance. This part Is compatible with GE appliances.

This freezer slide support assembly stabilizes and guides a freezer drawer so it opens and closes smoothly and stays level. Replacing a worn or broken support restores proper drawer alignment and prevents sagging or catching. What it does:

• Supports the freezer drawer or slide to maintain proper alignment and smooth movement
• Keeps the drawer level to prevent binding, sagging, or accidental dropping
• Replaces cracked, worn, or missing support pieces that cause uneven operation
• Works as a direct-fit mounting/guide for the drawer slide mechanism

• One freezer slide support assembly

• Disconnect power before starting and remove the freezer drawer to access the support
• Inspect mating slide and mounting tabs; replace any damaged clips or hardware
• Typically installs by snapping or securing into the existing slide track—retain fasteners if present

A simple replacement mounting strap used to secure internal components and prevent movement or vibration. Replaces a worn or broken strap to restore proper support and reduce rattling or sagging inside the appliance. What it does:

• Secures panels, assemblies or harnesses to keep parts in place during operation
• Reduces vibration and rattling caused by loose or damaged straps
• Prevents chafing or movement that can lead to wiring or component wear
• Helps maintain correct alignment of the secured component for reliable performance

• Disconnect power to the appliance before beginning any repair
• Use appropriate hand tools; avoid over-tightening fasteners which may damage the strap or mounting points

Size: 1/4 inch diameter.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

This barrel nut secures screws in tight appliance assemblies to hold panels, brackets, or trim in place. It provides a reliable threaded anchor where a standard nut or tapped hole is not available. What it does:

• Serves as a captive threaded insert to fasten screws in thin or hollow components
• Prevents screw pull-through and keeps panels, handles or brackets firmly attached
• Common symptom: loose or wobbly trim, panel, or handle that won't stay tight
• Works where a blind or offset fastening point requires a compact threaded anchor

• One barrel nut

• Disconnect power and follow all safety steps before servicing the appliance
• Insert barrel nut into the hole or bracket opening, align mating screw, and tighten by hand before final trimming with a driver
• Use the correct screw size and thread engagement; avoid overtightening to prevent stripping
• If access is limited, use appropriate drivers or extension tools and support the mating part while fastening

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
