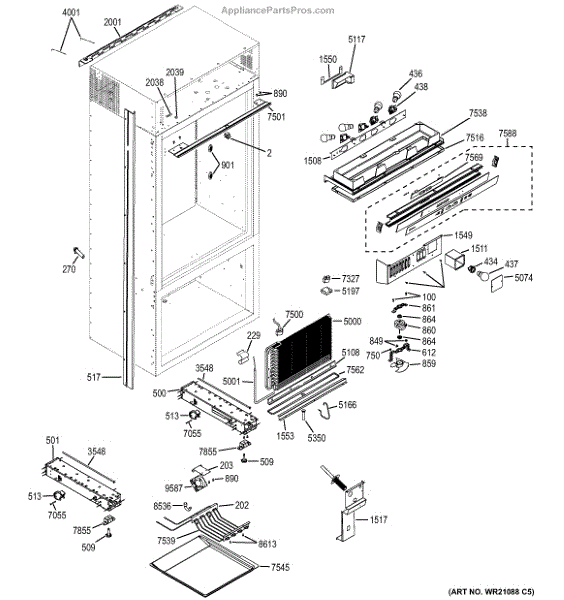

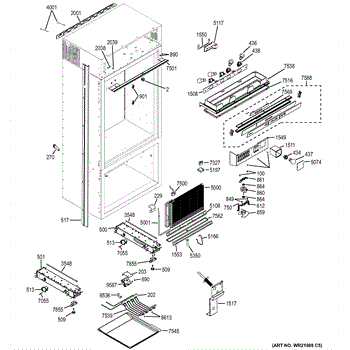

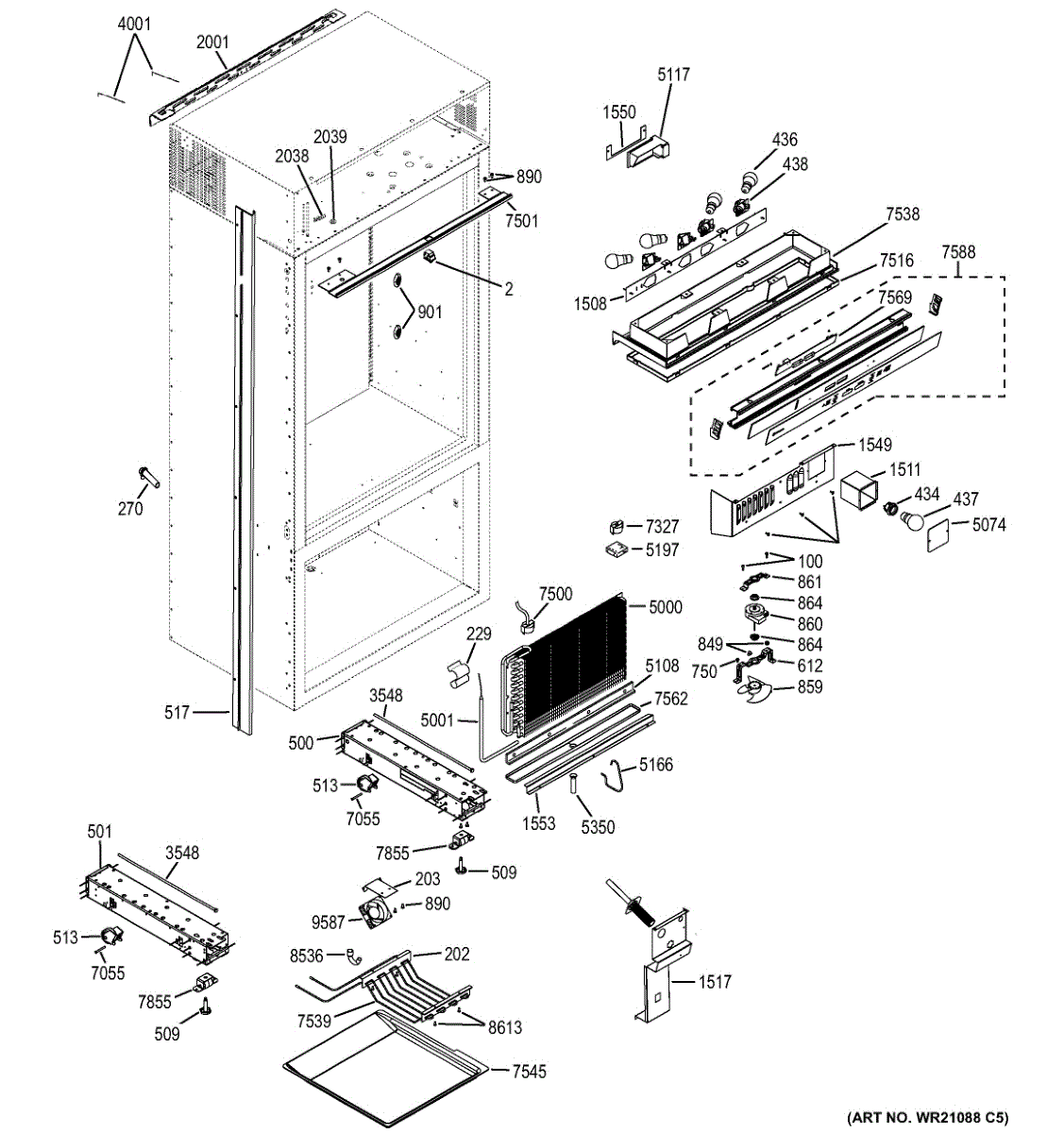

Parts for Ge ZICP360NXDRH: Controls & Components Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Rubber grommet that seals the water fill tube where it passes through the refrigerator liner. Replace if cracked, worn, or missing to prevent leaks.

Freezer light not working? This light socket connects the bulb to power. Common fix for interior lighting issues. Simple installation in most models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

Refrigerator light not working? This light bulb socket holds the bulb securely and provides electrical connection. Easy DIY repair with video guide.

Right-hand base channel provides lower structural support for refrigerator doors. Replace if bent, cracked, or missing to restore proper door alignment.

Left hand base channel provides lower cabinet support for your freezer. Replace if cracked, bent, or damaged to restore proper alignment and stability.

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

Secures the evaporator fan shroud to the rear compartment frame. Replace if rusted, cracked, or broken to properly support the fan assembly and alignment.

Mounting screw for refrigerators and freezers. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix loud fan noise and poor cooling with a new evaporator fan blade. Restores airflow across coils. Moderately difficult install in tight freezer space.

If your refrigerator compartment isn't cooling while the freezer stays cold, the evaporator fan motor likely failed. DIY-friendly repair with video guide.

Secures the evaporator fan motor to the refrigerator cabinet. Replace if your original bracket is bent, broken, or cracked to restore proper mounting.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Size: 8-16 x 2 inch ss.

Fixes uneven cooling in fresh food section. This air diffuser directs chilled air for consistent temperatures. Simple DIY repair restores airflow.

Mounting bracket that secures the damper assembly inside your refrigerator. Replace if cracked, broken, or missing to properly support the damper component.

Molded plastic water collector that directs ice maker water to prevent pooling and leaks. Replace if cracked, broken, or missing to restore drainage.

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

This 3/8-inch washer is used in refrigerators to secure components and prevent loosening. Replace if washer is missing, cracked, or worn out.

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This evaporator assembly circulates refrigerant and helps remove heat and humidity from the freezer compartment, restoring proper cold and frost control. Replaces the internal evaporator box to improve cooling performance and defrost function. What it does:

• Houses the evaporator coil to allow refrigerant evaporation and heat exchange
• Enables proper cold airflow and consistent freezer temperatures
• Supports the defrost cycle by routing meltwater to the drain system
• Commonly replaced for frost buildup, weak cooling, or abnormal freezer temperatures

• One evaporator assembly (evaporator box) as shown

• Requires access to the freezer interior; disconnect power before starting
• May require removal of shelving, panels, and the evaporator cover for access
• Follow OEM instructions for proper refrigerant and wiring handling; replace any damaged gaskets or seals

Refrigerator not cooling or freezing over? The defrost heater melts ice buildup on evaporator coils to restore proper airflow and temperature control.

Replace your refrigerator's freezer light shield to protect the bulb and restore proper illumination. Confirm fit with your model number before ordering.

Guides defrost water into the drain opening to prevent puddling and ice buildup. Replace if cracked, broken, or missing to keep water flowing properly.

Fix fresh food section freezing or not cooling issues with this air damper assembly. Controls airflow between freezer and refrigerator compartments.

Secures heater and sensor wiring to the evaporator area in your refrigerator. Replace if cracked, broken, or missing to maintain proper wire routing.

Left-side evaporator baffle directs cold air flow in the freezer compartment. Replaces cracked, broken, or missing baffles to restore proper airflow.

Routes defrost and condensation water from your refrigerator to the drain system. Replace if cracked, split, or clogged to prevent water pooling.

Replacement roller wheel for refrigerators and freezers. Installs on the base to support smooth movement. Replace if cracked, worn, or missing.

Fixes ice buildup in freezer and warm fresh food compartment. This bimetal defrost thermostat controls heater cycles to prevent frost accumulation.

Freezer getting too warm during defrost? This defrost thermostat regulates evaporator coil temperature. Moderate DIY repair with wire splicing.

Protects and directs fresh food compartment light. Replace if cracked or discolored to restore proper illumination. Verify fit with your model number.

Collects defrost water under your refrigerator. Replace if cracked, leaking, or missing to prevent water damage and moisture buildup on your floor.

Evaporator drip pan that catches and channels defrost water away from the freezer evaporator. Replace if cracked, damaged, or missing to restore drainage.

This HMI control assembly is the user interface board that lets you select and display settings on the appliance, restoring responsive controls and proper display feedback for normal operation. What it does:

• Provides the touch/key inputs and display signals for the appliance control system
• Registers user commands (cycle selection, temperature, timers) and sends them to the main control
• Restores missing or unresponsive front-panel controls and display feedback
• Can resolve symptoms like non-responsive buttons, blank or erratic display, or failure to accept user inputs

• Always disconnect power to the appliance before servicing to avoid electrical shock
• Handle the board carefully to avoid static damage; use anti-static precautions if available
• Installation typically requires removing the control panel or trim; retain fasteners and gaskets for reassembly

This front roller assembly supports the dryer's drum at the front, helping the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and reduces noise or scraping during operation. What it does:

• Supports the front of the dryer drum so it rotates evenly
• Reduces drum wobble and prevents scraping or grinding noises
• Helps eliminate squeaks and uneven tumbling caused by worn bearings
• Promotes smoother drum movement to reduce wear on the belt and other components

• Unplug the dryer before beginning service
• Remove the dryer's front panel and drum to access the roller; support the drum during removal
• Replace the worn roller with the new assembly and reassemble in reverse order

Replaces a cracked or broken drain trap in your refrigerator. Installs on the drain hose at the back of the unit. Use pliers to remove the old trap.

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware

Fixes uneven cooling or warm spots in fresh food section. This compartment fan motor circulates air to maintain consistent temperatures throughout refrigerator.
