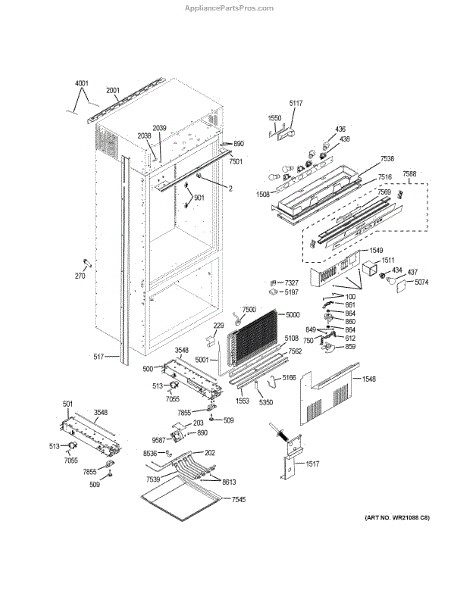

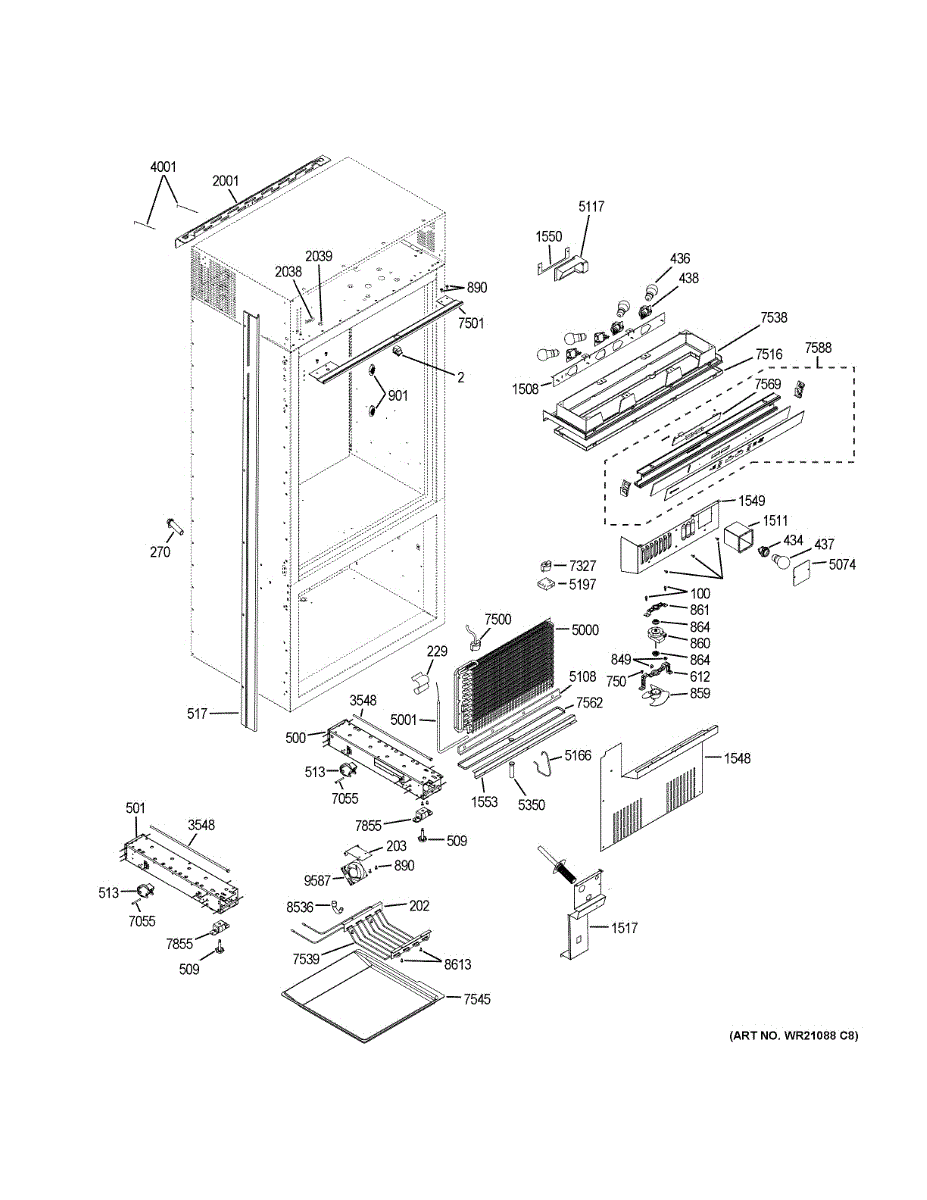

Parts for Ge ZICS360NHBLH: Controls & Components Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Switch Light is an OEM part for GE refrigerators. It is designed to activate the refrigerator’s interior light when the door is opened and turn it off when the door is closed. This ensures visibility inside the refrigerator, making it easy to locate items even in low-light conditions.

Over time, the switch light can become faulty due to wear and tear, exposure to moisture, or repeated use. These factors can cause the switch to malfunction or become unresponsive.

Symptoms of a bad switch light include:

• The refrigerator light not turning on when the door is opened
• The light staying on even when the door is closed
• Flickering or dimming of the interior light
• No response from the light switch when the door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber grommet seals and cushions the refrigerator's water fill tube where it passes through the liner, helping prevent leaks and vibration. It's a simple, low-cost part that restores a watertight, stable tube connection. What it does:

• Provides a sealed passage for the water fill tube to prevent drips and pooling
• Cushions the tube to reduce vibration and wear
• Helps keep the fill tube properly positioned for reliable water flow
• Commonly replaced when the tube leaks, moves, or the grommet is cracked or missing

• One rubber water fill grommet

• Turn off the water supply and unplug the appliance before servicing
• Access may require removing interior shelves or liners—handle panels carefully
• Press the grommet into the liner opening and feed the fill tube through until seated

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Light Bulb Socket is an OEM part for GE refrigerators. It holds the light bulb in place within the refrigerator, ensuring a secure connection to provide illumination when the refrigerator door is opened. This socket ensures that the interior light functions correctly, allowing users to see and access food items easily.

Common causes of a bad light bulb socket include electrical issues, such as short circuits, wear and tear from regular use, or physical damage from handling or bulb replacements.

Symptoms of a bad light bulb socket include:

• The refrigerator light flickering or not turning on
• Burn marks or signs of overheating around the socket
• Loose or poor connection with the light bulb
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An evaporator fan blade mounts on the evaporator fan motor to move cold air across the coils and throughout the refrigerator compartments. Replacing a cracked, warped, or loose blade restores proper airflow, temperature balance, and quiet operation.

• Circulates air across the evaporator and into the fresh food and freezer sections to maintain even temperatures
• Helps reduce frost/ice buildup on the evaporator cover by improving airflow after defrost
• Common symptoms of a damaged blade: rattling or scraping noises behind an interior panel, weak or no airflow at vents, warming in the fresh food section, or uneven cooling
• A cracked or loose blade may spin but move little air even when the motor runs

• Disconnect power to the refrigerator before service
• Access the evaporator fan behind the interior rear panel; remove the cover/shroud as required (varies by model)
• Note blade orientation; seat the new blade fully on the motor shaft and verify clearance inside the shroud
• Reassemble panels, restore power, and confirm the fan spins freely without rubbing

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Rear evaporator fan motor bracket secures the evaporator fan motor to the refrigerator cabinet, maintaining airflow over the coils for efficient cooling. Replaces a bent or broken mounting bracket so the fan runs steadily. What it does:

• Holds the evaporator fan motor in the correct position to maintain steady rotation and consistent airflow across the evaporator coils.
• Prevents the motor from rubbing against the housing or fan blades, reducing noise and vibration.
• Common replacement when bracket is cracked, corroded, or bent — symptoms include noisy fan operation, intermittent fan movement, or reduced cooling performance.
• Restores proper motor alignment to help prevent premature motor wear.

• Always disconnect power to the appliance before beginning any repair.
• Remove the evaporator cover or access panel to reach the bracket; retain original mounting hardware unless replacements are provided.
• Ensure the fan blades spin freely and the motor is undamaged before reassembly; ensure the bracket seats securely and the fan does not contact the housing.
• If the motor or fan blade shows damage, replace those parts separately rather than relying on the bracket alone.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Size: 8-16 x 2 inch ss.

This air diffuser directs chilled air into the fresh-food compartment to help maintain even cooling and airflow where food is stored. Replaces a cracked, broken, or missing diffuser to restore proper air distribution. What it does:

• Channels airflow from the freezer/evaporator area into the fresh-food section
• Helps reduce hot spots and uneven cooling in the fridge compartment
• Can reduce drafts or noisy airflow caused by a damaged diffuser
• Fits into the interior air duct and snaps or screws into place depending on model

• One air diffuser

• Disconnect power before servicing to avoid electrical shock
• Access may require removing shelves, bins, or interior panels for clearance
• Handle plastic parts carefully to avoid cracking; use appropriate screwdrivers if fasteners are present

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

The Defrost Heater Assembly is an OEM replacement part for GE refrigerators. It is designed to heat the evaporator coils during the defrost cycle, melting any accumulated ice or frost. This helps maintain proper airflow and prevents the coils from freezing over, allowing your refrigerator to cool normally.

A bad defrost heater assembly can occur due to electrical issues, component failure, or damage to the heater itself. If you notice symptoms such as excessive frost or ice buildup in the freezer, inconsistent cooling, or water pooling at the bottom of the refrigerator, it may indicate a need to replace the defrost heater assembly.

Symptoms of a bad defrost heater assembly include:

• Excessive frost or ice buildup in the freezer
• Inconsistent cooling
• Water pooling at the bottom of the refrigerator

Restore your refrigerator by replacing the faulty defrost heater assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This drain baffle guides defrost water into the refrigerator drain to prevent puddling and ice buildup, keeping the fresh food area dry and reducing odors. It fits into the freezer/refrigerator drain opening and channels meltwater safely away. What it does:

• Directs defrost and condensation water into the appliance drain to prevent pooling.
• Helps reduce ice formation and standing water inside the fresh food or freezer compartment.
• Minimizes odors by keeping water from collecting under shelves or liners.
• Works with the drain tube and heater to maintain proper drainage.

• Disconnect power before accessing interior panels or removing shelves.
• Remove shelves and the crisper/evaporator cover as needed to reach the drain area.
• Clear any ice or debris from the drain before installing the new baffle to ensure proper flow.

The Damper Assembly is an OEM component specifically designed for GE refrigerators. This assembly is located within the fresh food compartment and functions to control airflow and temperature regulation.

The damper works with the evaporator fan to carefully moderate circulating air, preventing cold spots and optimizing equal cooling. Consistent temperatures extend the shelf life of perishable goods.

Causes of a faulty damper assembly can include failure of the plastic gears or axle that coordinate its movements over time. Improper air circulation disrupts the refrigerator's performance.

Symptoms include:

• Formation of frost or ice buildup in problem areas
• Inconsistent shelf temperatures from top to bottom
• Foods spoiling more quickly

This replacement assembly from GE restores dependable temperature control. Upgrade today for continued fresh food preservation abilities matching OEM standards. It is also compatible with Hotpoint, RCA, and some Kenmore models.


This small replacement wire retainer secures heater and sensor wiring to the evaporator area, preventing wire contact with sharp edges and maintaining proper routing for reliable defrost operation and safe airflow. What it does:

• Holds heater and thermostat/sensor wires in place near the evaporator assembly
• Prevents chafing, pinching, or accidental contact with moving or hot components
• Helps maintain correct wire routing for consistent defrost performance and temperature sensing
• Reduces risk of intermittent connections or short circuits caused by loose wiring

• Designed for a simple clip-in or screw-mount installation; inspect mounting point for clips or fasteners before replacing
• Disconnect power to the appliance before accessing the evaporator compartment
• Handle wiring gently and ensure secure seating of wires in the retainer before reassembling panels
• If any wiring or insulation is damaged, replace or repair the wiring harness per manufacturer guidance

This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged

This tube drain routes defrost and condensation water away from the refrigerator cabinet to the drain system, helping prevent pooling and ice build-up. It's a direct-replacement service part designed to restore proper water flow. What it does

• Channels defrost and condensation runoff from the evaporator area into the main drain or drain pan.
• Helps prevent water pooling inside the fresh food compartment or under crispers.
• Replaces cracked, kinked, clogged or deteriorated drain tubing that can cause leaks or frost buildup.
• Works with the existing drain funnel and heater components to maintain normal drainage.

• One tube drain

• Disconnect power to the appliance before beginning work; shut off water supply if the repair requires it.
• Remove interior panels as needed to access the evaporator/drain area; handle evaporator fins and plastic parts carefully to avoid damage.
• Ensure the tube is seated fully at both connection points and routed without tight bends or kinks to allow free drainage.
• After installation, run a small amount of warm water into the drain area to check for leaks.

This axle wheel is a replacement drum support component that helps the dryer drum roll smoothly and quietly. Replacing a worn axle wheel restores proper drum alignment and reduces noise or binding during operation. What it does:

• Supports and centers the dryer drum on its axle so the drum turns freely
• Replaces worn or damaged wheel surfaces that cause squeaks, grinding, or rubbing
• Helps prevent drum wobble and uneven wear on the drum seal or rollers
• Works as part of the drum support system to maintain smooth rotation

• One axle wheel

• Disconnect power before starting and work on a cool, empty dryer
• Removing the dryer front or drum may be required to access and replace the wheel
• Inspect other drum support components (rollers, glides, bearings) and replace as needed

This defrost thermostat senses evaporator temperature and shuts off the defrost heater once the coil warms, preventing overheating. Replacing a failed thermostat restores proper defrosting to stop ice buildup and stabilize refrigerator temperatures.

• Controls the defrost heater based on evaporator coil temperature
• Closes when cold to allow defrost; opens as the coil warms to end the cycle
• Protects against overheating during defrost
• Failure may cause frost/ice on the back wall or evaporator, poor cooling, or a heater that never energizes

• Disconnect power before service; evaporator fins and sheet metal are sharp
• Access the evaporator by removing the freezer rear panel; note wire routing and mounting
• Position the new thermostat in the same location for tight contact with the tubing; reconnect wires exactly as found
• Reassemble and monitor a defrost cycle to confirm heater operation

The Defrost Thermostat is an OEM replacement part for GE refrigerators responsible for regulating the defrost cycle of the refrigerator's cooling system. The defrost thermostat monitors the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to activate, melting any ice or frost that has accumulated. Once the coils are clear, the thermostat signals the heater to turn off, allowing the normal cooling cycle to resume.

A bad defrost thermostat can occur due to electrical issues, component failure, or damage to the thermostat itself. If you notice symptoms such as excessive frost or ice buildup in the freezer, inconsistent cooling, or the refrigerator running continuously without cycling off, it may indicate a need to replace the defrost thermostat.

Symptoms of a bad defrost thermostat include:

• Excessive frost or ice buildup in the freezer
• Inconsistent cooling
• Continuous operation without cycling off

Restore your refrigerator by replacing the faulty defrost thermostat with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This molded plastic light shield covers and protects the interior light in the refrigerator fresh-food compartment while directing light for better visibility. It replaces cracked or discolored shields that block or scatter the bulb's output. What it does:

• Protects the interior light bulb from bumps and spills
• Directs and diffuses the light for clearer interior visibility
• Prevents direct contact with the bulb for improved safety
• Restores a clean, finished appearance to the compartment

• Disconnect power to the appliance before starting any work
• Remove any shelves or items that block access to the shield for easier removal/installation
• Usually snaps or screws into place; handle the plastic gently to avoid cracking
• Test the light after installation and restore power only when reassembly is complete

This evaporator trough (drip pan) catches and channels defrost and condensation water away from the freezer evaporator, helping prevent leaks and water accumulation. It restores proper drainage and reduces ice build-up near the evaporator area. What it does:

• Collects defrost melt and condensation from the evaporator coils
• Directs water to the drain or evaporator fan area to prevent pooling
• Helps reduce ice buildup and moisture-related odors around the evaporator
• Commonly replaced when cracked, warped, or leaking after defrost cycles

• One evaporator trough

• Disconnect power to the appliance before servicing to avoid shock
• Access typically requires removing the evaporator cover and possibly the evaporator fan assembly
• Inspect surrounding seals and drain components when replacing to ensure proper fit and drainage
• Use caution with sharp sheet-metal edges and refrigerant lines

This front roller assembly supports the dryer's drum at the front, helping the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and reduces noise or scraping during operation. What it does:

• Supports the front of the dryer drum so it rotates evenly
• Reduces drum wobble and prevents scraping or grinding noises
• Helps eliminate squeaks and uneven tumbling caused by worn bearings
• Promotes smoother drum movement to reduce wear on the belt and other components

• Unplug the dryer before beginning service
• Remove the dryer's front panel and drum to access the roller; support the drum during removal
• Replace the worn roller with the new assembly and reassemble in reverse order

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware

This drain fan assembly circulates air around the refrigerator's drain/evaporation area so defrost water can dry properly. Replacing a worn or seized fan restores intended airflow and helps reduce lingering moisture and related odors. What it does:

• Moves air across the drain/evaporation path to aid drying after defrost cycles
• Helps minimize standing water and musty odors near the drain pan area
• Supports proper moisture management in the machine compartment
• Common symptoms of a failing fan include not running, intermittent operation, rattling/squealing, or occasional water pooling near the base

• One drain fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Location and access vary by model—refer to your model's service information
• Note wire connections and mounting orientation before removal; transfer any reusable hardware from the original assembly
• After installation, ensure the blade spins freely and wiring is routed clear of moving parts
