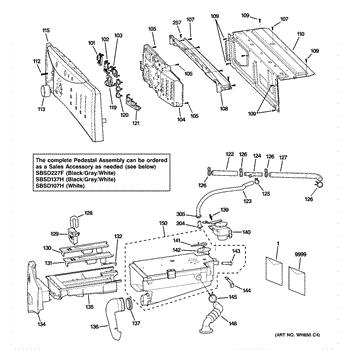

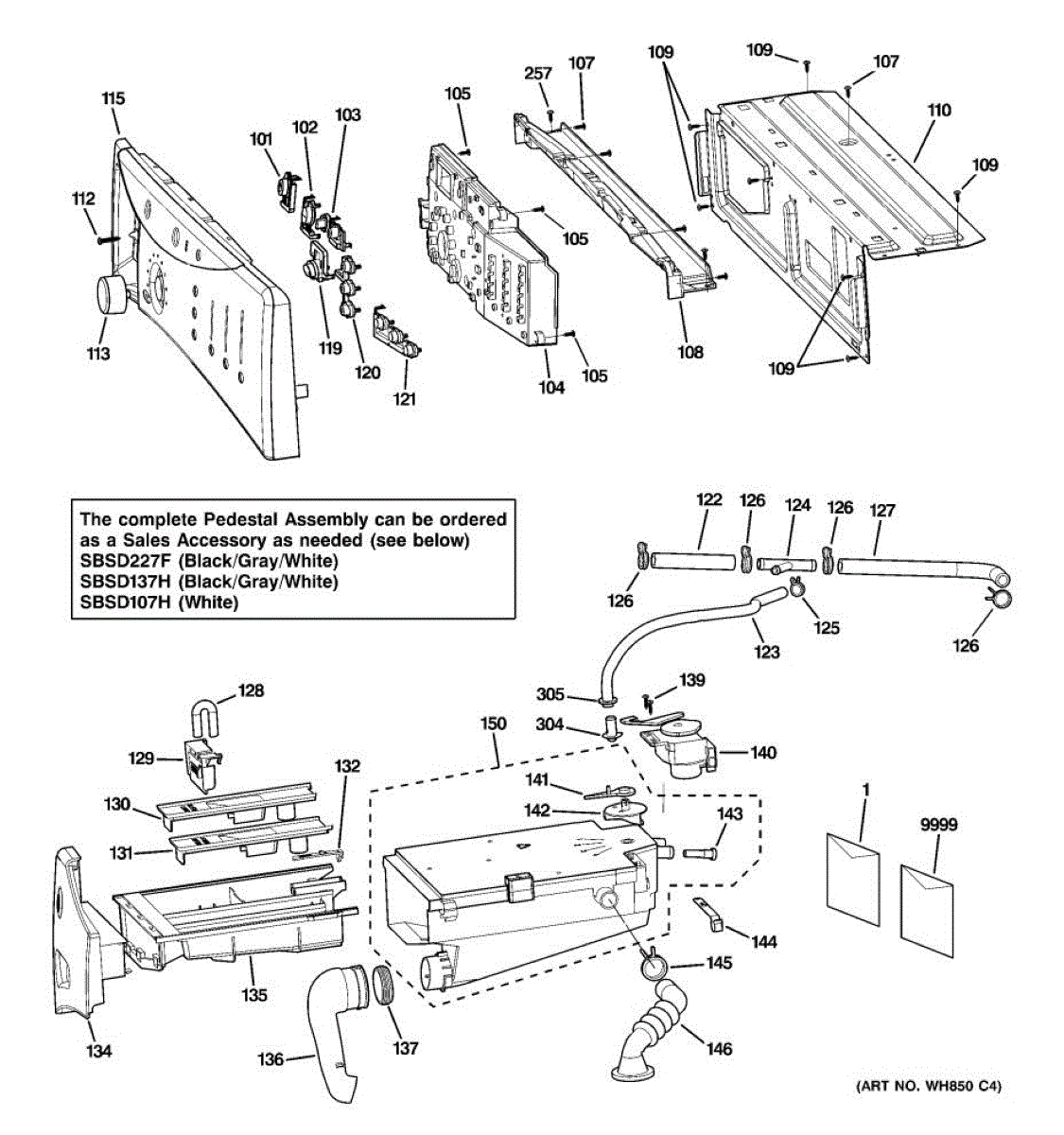

Parts for Ge WHDVH660H0BB: 01 - Controls & Dispenser Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This part is intended to replace the control board assembly on GE and other various brands of washers. The control board and washer assembly consist of the circuit board that controls the main functions and the dials that toggle those functions. The washer's control board acts as the central mainframe to the appliance. All main functions originate from the control board and allow the user to toggle between all the main settings. If a washer begins to lose some or all of the main functions, it's typically a sign of a control board issue. When the control board fails completely, the washer will cease all operations, and the board will need to be replaced. Beginning at the central control area, remove the faceplate or label area of the controls. It may be necessary to remove the trim before this is possible. Using a screwdriver, remove any anchor screws from the perimeter area of the control assembly. The circuit board will be directly on the rear face of the control assembly and is connected to a wiring harness. Remove the wiring harness and connect the new component. Place the assembly back into its intended housing but do not anchor it with screws until it's been tested to work properly.This part is compatible with GE and Kenmore appliances. It is a genuine OEM part sourced directly from General Electric.

This is a replacement self-tapping screw used to secure panels, brackets and small components on compatible appliances. It provides a direct-fit fastener for repairs where the original ST4 x 25 mm screw is missing or damaged. What it does

• Fastens trim, access panels, brackets and internal components that use an ST4 x 25 mm self-tapping fastener
• Restores proper fit and reduces rattles or loose parts caused by stripped or missing screws
• Matches the OEM thread and length for a secure hold in sheet metal and plastic mounting points
• Useful for routine appliance repairs and refurbishments

• Use the correct size screwdriver or bit to avoid stripping the head
• Start threads slowly and avoid over-torquing to prevent stripping or cracking mounting material
• Ensure the appliance is unplugged or power is disconnected before servicing
• Keep removed hardware organized to verify correct replacement locations

This 3-way pipe clamp secures multiple small pipes or lines to the appliance chassis to reduce vibration and keep plumbing lines organized and clear of heat or moving parts. It helps prevent chafing and rattling for a quieter, safer appliance. What it does:

• Holds up to three small-diameter pipes or tubes in a single clipped location to prevent movement
• Keeps water, drain or refrigerant lines routed away from hot or moving components
• Reduces vibration and rattle noises caused by loose tubing
• Helps prevent abrasion and wear that can lead to leaks or line damage

• Disconnect power and shut off water supply before beginning any work
• Access may require removing panels or covers; use appropriate hand tools
• Position lines fully into the clamp before snapping or fastening; avoid pinching or kinking tubing
• Do not overtighten fasteners; secure clamp snugly to prevent movement without stressing the lines

This siphon pipe is a washer drain component that forms part of the air-break assembly. It helps prevent unintended siphoning and backflow so the tub drains correctly without pulling water back in or continuously draining. What it does:

• Provides the pipe section of the washer's siphon break/air gap
• Maintains airflow to stop siphoning and backflow during drain and spin
• Supports consistent, complete draining
• Typical failure signs: leaks near the siphon break, cracking, or water draining back into the tub

• Includes one siphon pipe

• Disconnect power and turn off water before servicing
• Expect some residual water; have towels or a pan ready
• Note hose routing; transfer any clamps/fittings from the old pipe and seat connections fully
• After reassembly, run a brief fill/drain to check for leaks and proper draining

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This bleach cover is the replacement lid for the washer bleach dispenser, keeping the bleach compartment closed and preventing spills while the washer fills. It helps direct bleach into the wash and keeps the dispenser clean. What it does:

• Covers the bleach dispenser to prevent accidental spills and splashes
• Helps ensure bleach flows into the tub at the correct time during the fill cycle
• Prevents debris from entering the bleach compartment
• Replaces cracked, broken or missing covers that can cause leakage or uneven dispensing

• Turn off and unplug the appliance before servicing to avoid injury
• Remove any clothing or leftover detergent from the dispenser area before replacing the cover
• Most replacements snap or clip into place; align carefully to avoid damaging surrounding parts

This diverter valve directs wash water inside the machine, switching flow between internal paths during wash and drain/recirculation steps. Replacing a failed diverter restores proper water routing so cycles advance and complete as designed.

• Redirects water between the drain and recirculation/spray paths as commanded by the control
• Ensures correct water flow for wash, rinse, and drain steps
• A sticking or failed diverter can cause slow/no drain or no recirculation/spray
• May lead to cycle pauses/errors, unusual clicking/buzzing from the valve area, or leaks at the valve body/ports

• Unplug the washer and turn off water supply; expect residual water in hoses
• Access location varies by model; typically mounted along the pump/hoses under the cabinet
• Move hoses/clamps and the electrical connector one at a time; match port orientation
• After installation, run a rinse/drain test and check all connections for leaks

This Main box is the control housing that holds and protects the range/stove electronic components and wiring, keeping controls secure and organized for reliable operation. What it does

• Houses the main control electronics and wiring harness connections to protect them from heat and debris
• Provides secure mounting for the control board and user interface components
• Faulty or cracked housing can cause loose connections, intermittent controls, or visible damage to electronics
• Replace if the housing is cracked, melted, or no longer secures the control board properly

• One main box / control housing

• Disconnect power to the appliance before starting any repair
• Handle electronic components carefully and avoid static discharge; transfer any control board or harnesses exactly as removed
• Secure all fasteners; do not force parts into position
• After installation, restore power and test all functions; stop and re-check wiring if controls remain unresponsive

This gasket nozzle washer is a small rubber seal that fits at a spray/nozzle connection to help prevent leaks and ensure proper water flow. Replacing a worn gasket restores a secure seal and reduces dripping or pooling. What it does:

• Seals the connection at a spray nozzle or outlet to help stop leaks
• Maintains correct water flow through the nozzle for effective spraying
• Commonly replaces hardened, cracked, or flattened gaskets that allow dripping
• Helps eliminate minor water pooling or visible leaks near the nozzle area

• Turn off power and water supply to the appliance before servicing
• Remove the nozzle or fitting per the manufacturer's instructions; replace the old gasket with the new washer, ensuring it seats evenly
• Inspect mating surfaces for debris or damage before reinstalling

This stacking kit secures a compatible dryer to a matching washer to create a safe, space-saving stacked laundry configuration. It helps stabilize the dryer and reduces movement during use for a more reliable setup. What it does:

• Provides brackets and mounting hardware to fasten the dryer to the washer
• Helps prevent the dryer from shifting or tipping when the washer is running
• Improves overall stability of stacked laundry appliances during normal operation
• Reduces vibration-related movement that can cause noise or misalignment

• Disconnect power to both appliances before installing and follow all manufacturer instructions
• Use only on compatible washer/dryer pairs
• Tighten hardware securely but avoid overtightening; follow torque guidance in OEM instructions

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
