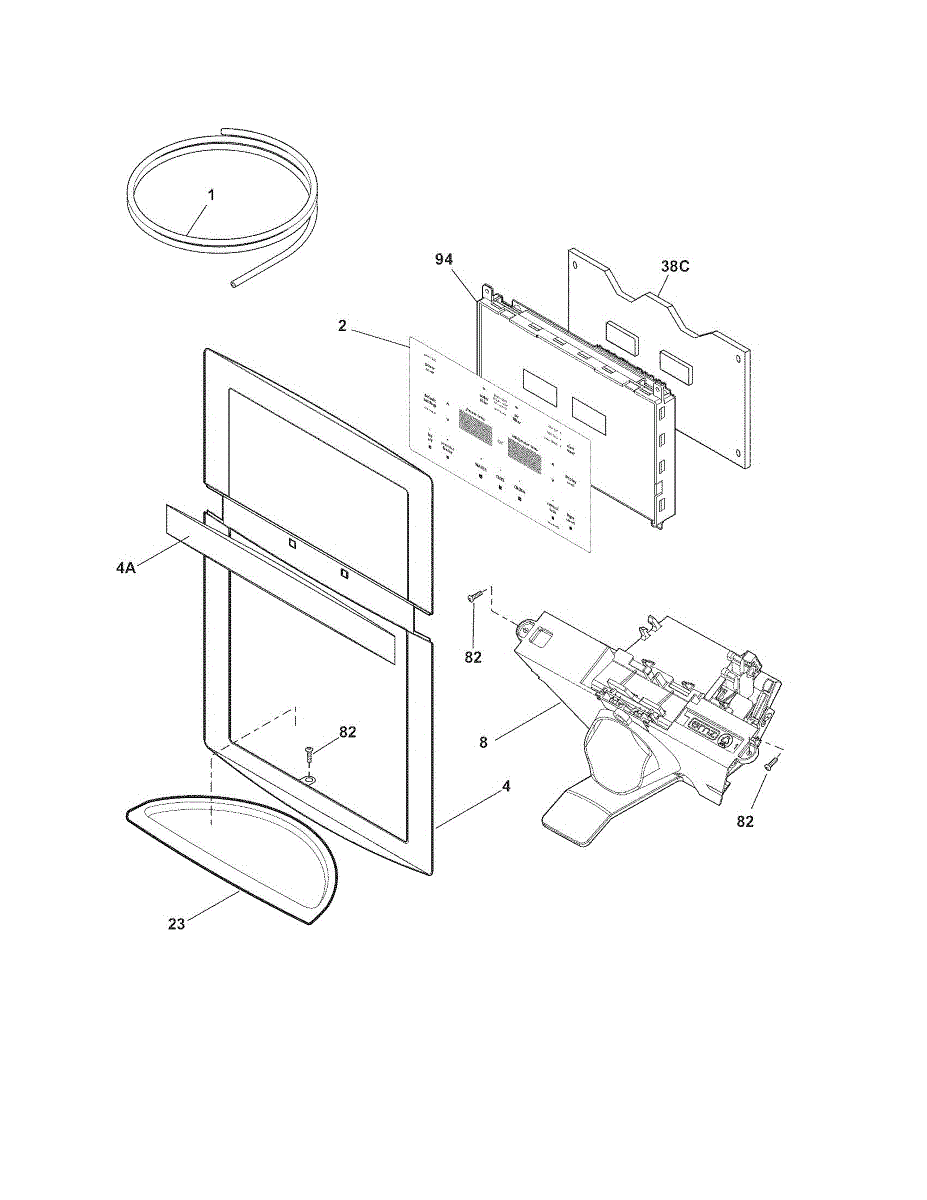

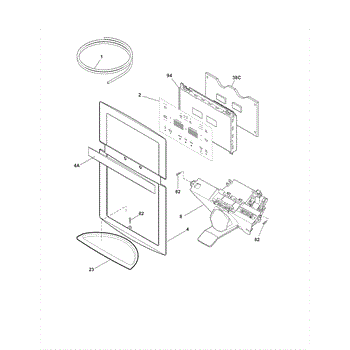

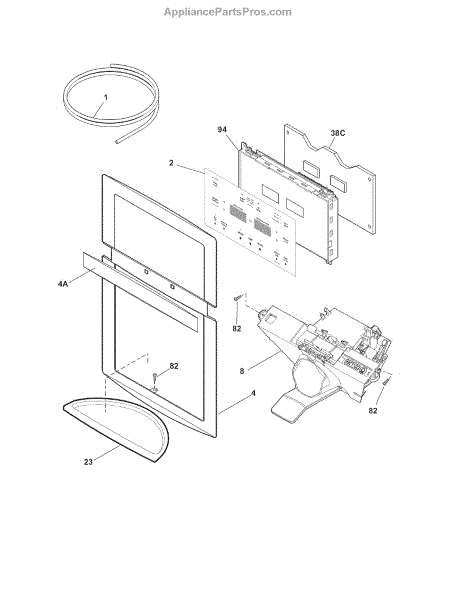

Parts for Crosley CFD28WIS2: Controls & Ice Dispenser Parts

This door push-button switch controls the interior light and door-activated circuits in compatible refrigerators, restoring normal light operation and door sensing when the original switch fails. What it does:

• Opens and closes the door-activated circuit to turn the interior light on when the door opens
• Stops the light (or other door-controlled functions) when the door is closed
• Commonly replaced for intermittent or non-working interior lights and lack of door-sensed functions
• Works as a direct mechanical replacement for a single push-button door switch

• One door push-button switch

• Disconnect power to the appliance before starting any repair to avoid shock hazards
• Access typically requires removing the light housing or door trim; keep small screws and components organized
• Replace the switch by disconnecting the wiring harness and securing the new switch in the mounting slot

This dispenser control board is the electronic module behind the refrigerator's ice/water dispenser panel. It reads button inputs and powers dispenser functions to help restore reliable dispensing and front-panel control when the original board fails. What it does

• Processes user selections for water, cubed/crushed ice, and dispenser light (model-dependent)
• Sends power to the water inlet valve and auger/dispenser motor as commanded
• Manages dispenser lock and status/display indicators (if equipped)
• Failure symptoms include unresponsive or intermittent controls, no water or ice dispensing, or an inoperative dispenser light

• Includes 1 dispenser control module (electronic board)

• Disconnect power before servicing; use ESD protection and handle the board by its edges
• Remove the dispenser escutcheon/cover to access the module; release locking tabs or screws as needed
• Transfer wire connectors one at a time to the new board, confirming orientation and full seating
• Reassemble, restore power, and test all dispenser functions

The Dispenser Control Board is an OEM part for Frigidaire refrigerators. It is located behind the control panel of the refrigerator and communicates with other components to activate the dispenser mechanisms. It enables the user to select and dispense ice or water as desired.

Causes of a faulty dispenser control board can include electrical malfunctions, component failure, or improper handling. These factors can result in issues such as the dispenser not responding to user input, incorrect dispensing amounts, or complete failure of the dispenser functions.

Symptoms of a bad dispenser control board may include:

• Inability to dispense ice or water
• Incorrect dispensing amounts or inconsistent operation
• Error codes or flashing lights on the dispenser panel

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
