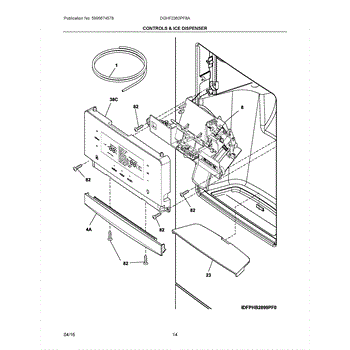

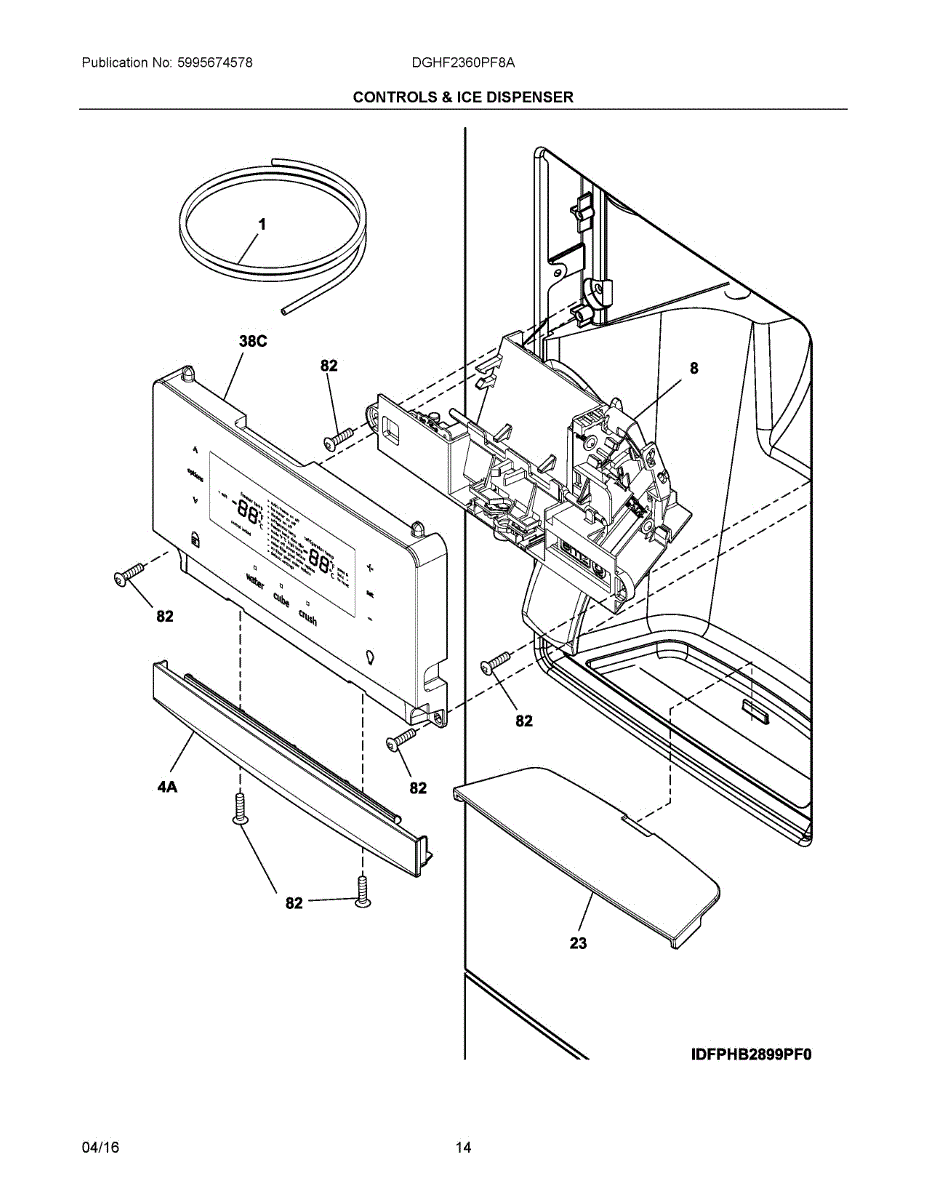

Parts for Frigidaire DGHF2360PF8A: 07 - Controls & Ice Dispenser Parts

This water inlet tube routes potable water from the supply/valve to the refrigerator's water/ice system, keeping the dispenser and icemaker supplied. It's a direct-fit replacement that restores proper water flow and helps prevent leaks from damaged tubing. What it does:

• Channels water from the inlet valve to the dispenser/ice maker assembly
• Restores proper water delivery when original tubing is cracked, clogged, or leaking
• Helps prevent water damage by providing a secure, direct path for supply water
• Matches OEM routing and connection points for proper fit and flow

• One water inlet tube

• Disconnect power and shut off the home's water supply before starting
• Inspect fittings and replace any damaged clips or seals during install
• Use proper tools and avoid kinking the tube; hand-tighten fittings then test for leaks

Color: Stainless Steel
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It surrounds the ice and water dispenser area located externally on the refrigerator door.

Causes of a faulty dispenser trim can include cracks, chips or damage from impacts or general wear over time.

Symptoms of failure include:

• Water leaks developing around the dispenser opening
• Loose or detached trim that does not sit flush
• Access to dispenser functions being obstructed

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Module is an OEM component specifically designed for Frigidaire refrigerators. This module dispenses filtered water and crushed ice through the refrigerator door.

Causes of a bad dispenser module can include worn gears or levers that impair water or ice dispensing, broken components that prevent proper operation of the dispenser function, or failure of electronic parts that control dispensing.

Symptoms of a bad dispenser module include:

• Slow, inconsistent, or no water dispensing
• Ice crushing mechanism not working
• Dispenser door not opening or closing smoothly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

The User Interface is an OEM part for Frigidaire refrigerators. This control panel allows users to select and adjust settings, monitor the refrigerator’s status, and receive feedback on its operation. The user interface is crucial for managing various functions such as temperature control, ice and water dispensing, and other customizable settings.

You should replace the user interface if it becomes unresponsive or damaged. Causes of a bad user interface can include regular wear and tear from frequent use, exposure to moisture or electrical surges, or physical damage from impacts or mishandling. These issues can lead to the control panel malfunctioning or becoming completely unresponsive.

Symptoms of a bad user interface include:

• Buttons or touch controls not responding
• Display not showing correctly or remaining blank
• Inconsistent or incorrect temperature readings
• Error codes or malfunction messages appearing frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This wire harness is an electrical connector assembly that links appliance components so circuits can carry power and signals. It helps restore reliable electrical connections and proper operation when the original harness is damaged or worn. What it does:

• Provides factory-style electrical connections between components to enable power and signal flow
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components that won't power on, erratic cycles, or loss of function traced to wiring
• Maintains correct connector fit and routing for safe, reliable performance

• One wire harness assembly as pictured

• Disconnect all power to the appliance before starting any repair
• Compare the replacement harness to the original to ensure connectors, length, and routing
• Route harness to avoid sharp edges, heat sources, and moving parts; secure with factory clips or ties

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

Replacement water tube that routes water from the inlet valve to the refrigerator dispenser and ice maker, helping restore proper water flow for reliable dispensing and ice production. What it does:

• Carries water from the refrigerator inlet/valve to the dispenser and ice maker fill system.
• Used when cracked, kinked, clogged or brittle tubing prevents water flow.
• Helps stop leaks and restore normal ice maker fill when tubing is damaged.
• Addresses symptoms such as no water at the dispenser, ice maker not filling, or visible leaking under the fridge.

• Turn off the water supply and unplug the refrigerator before beginning any work.
• May require basic hand tools and careful routing to avoid kinks; do not overtighten fittings.
• Inspect and replace any damaged clamps or seals; test for leaks after reconnecting the water supply.

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
