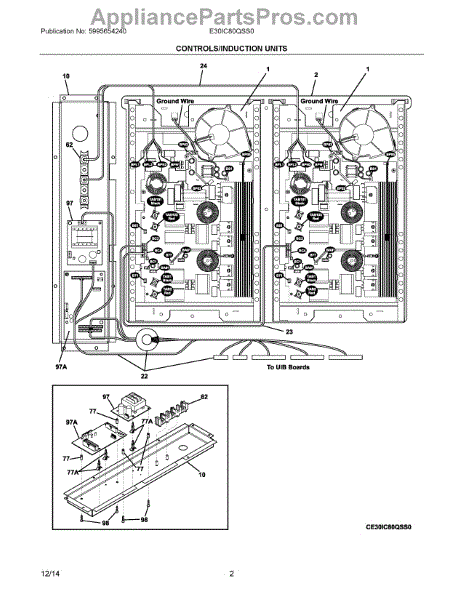

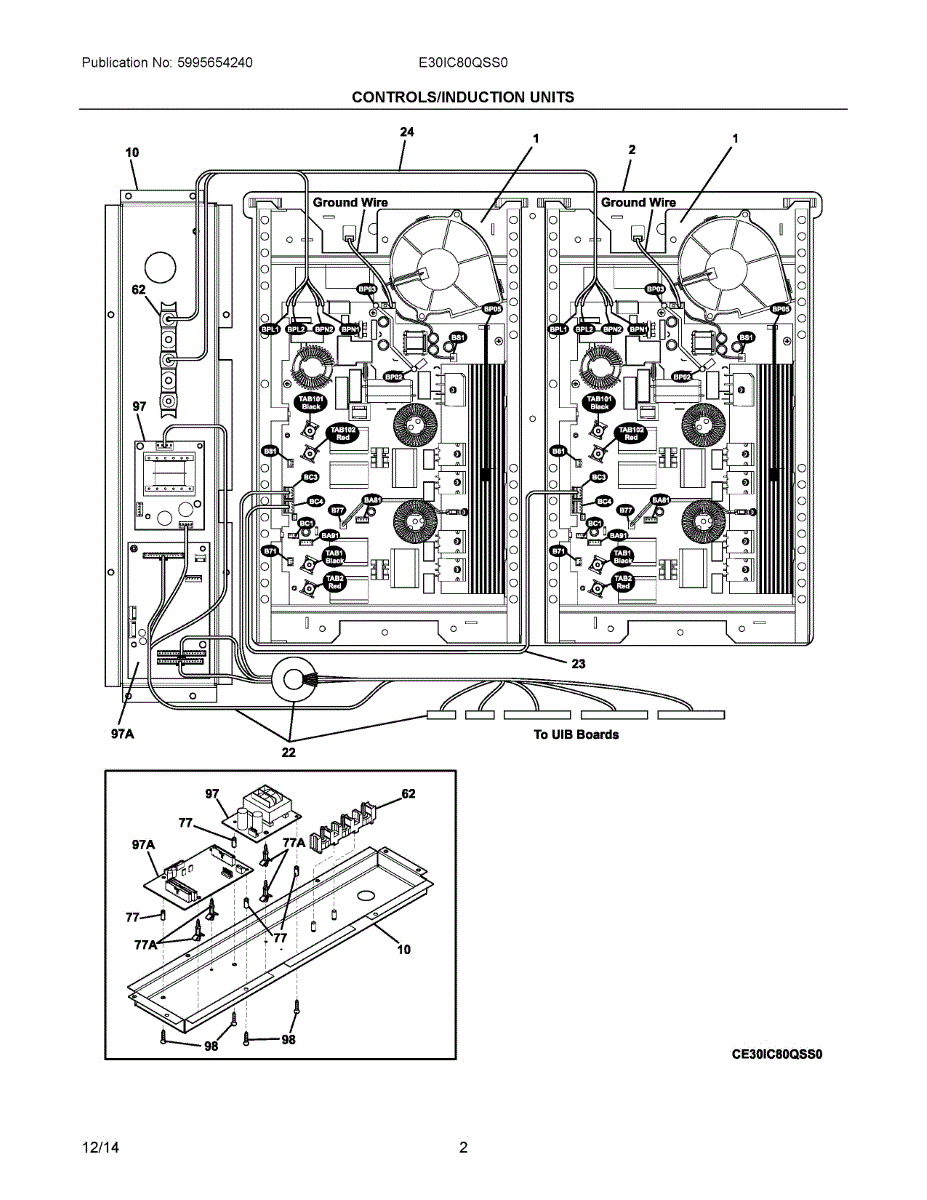

Parts for Electrolux E30IC80QSS0: 02 - Controls / Induction Units Parts

This ignition generator and wiring harness assembly routes power and provides the spark/ignition signal needed for gas appliance burners to light. It replaces a worn or damaged ignition assembly to restore reliable lighting. What it does:

• Sends ignition voltage to the burner igniters and electrodes so burners light reliably
• Routes and secures wiring between the control module and ignition components
• Common failure symptoms: burners won't light, continuous clicking, or intermittent ignition
• Works as the electrical interface between the control and the igniters for safe startup

• One generator and wiring harness assembly

• Disconnect electrical power and turn off the gas supply before starting work
• Follow the appliance OEM diagram for correct routing and connector locations
• Inspect connectors and electrodes for damage and replace if corroded or worn

Wire harness assembly for electric cooktops. Connects electrical components and controls. Replace if wires are frayed, damaged, or connections are loose.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Range won't turn on or display shows incomplete numbers? This electronic control board manages cycles and user inputs. Moderate DIY repair, 1-2 hours.
