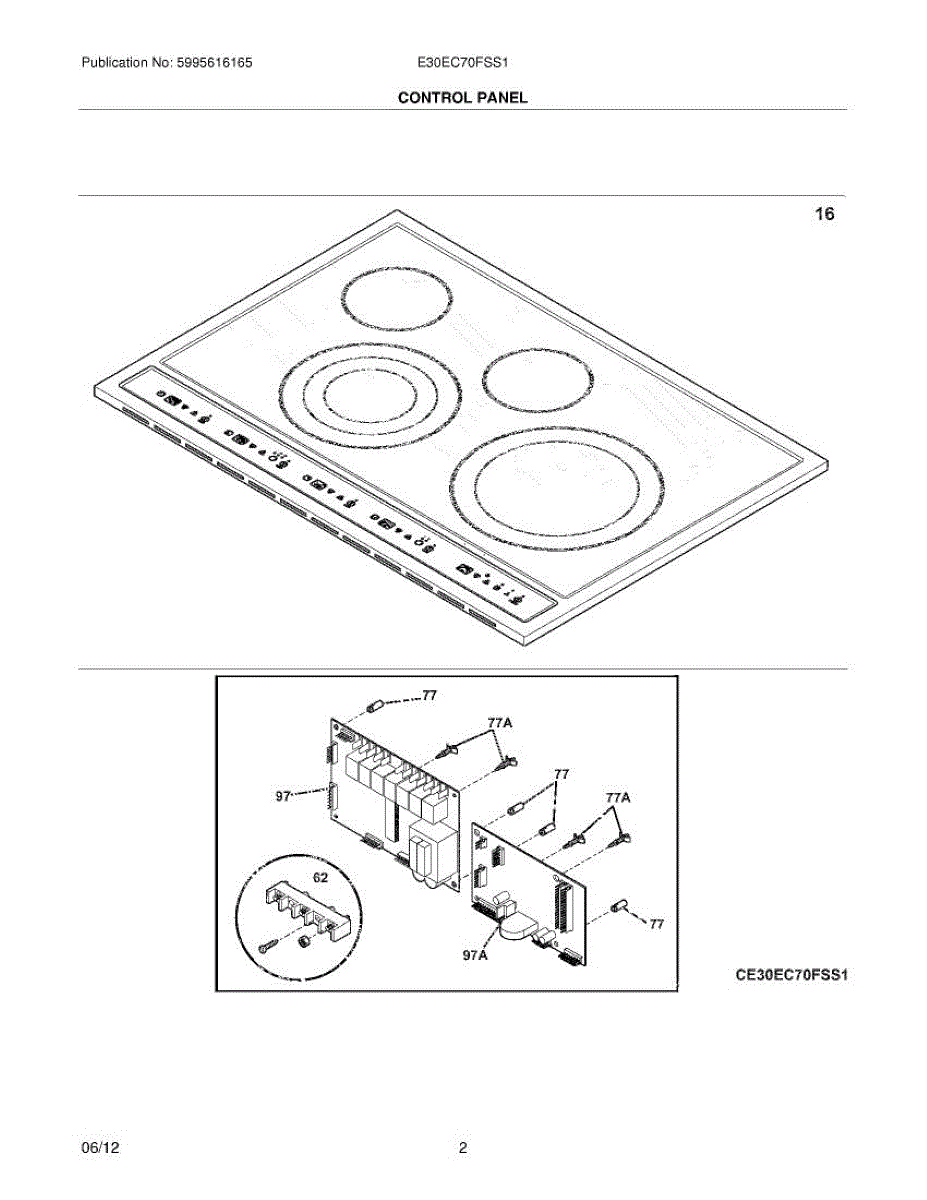

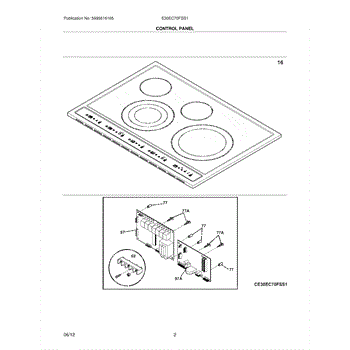

Parts for Electrolux E30EC70FSS1: 03 - Controls Parts

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electronic oven control board manages oven temperature, bake/broil functions, and the display/keypad. Replacing a failed board restores proper heating and responsive controls so the oven operates and times as it should. What it does:

• Regulates power to the bake/broil elements or gas valve to reach and maintain set temperature
• Interprets keypad inputs and controls oven modes (Bake, Broil, Start/Stop, Timer)
• Drives the digital display for time, temperature, and status
• Common symptoms of failure: no display, unresponsive buttons, oven won't heat or overheats, or recurring error beeps/codes

• 1 electronic control board assembly

• Disconnect power at the breaker; turn off gas supply for gas ranges
• Use ESD precautions; handle the board by its edges
• Label and transfer wire connectors one at a time; move any mounting hardware/overlay from the original, if required
• After installation, restore power, set the clock, and test oven modes

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
