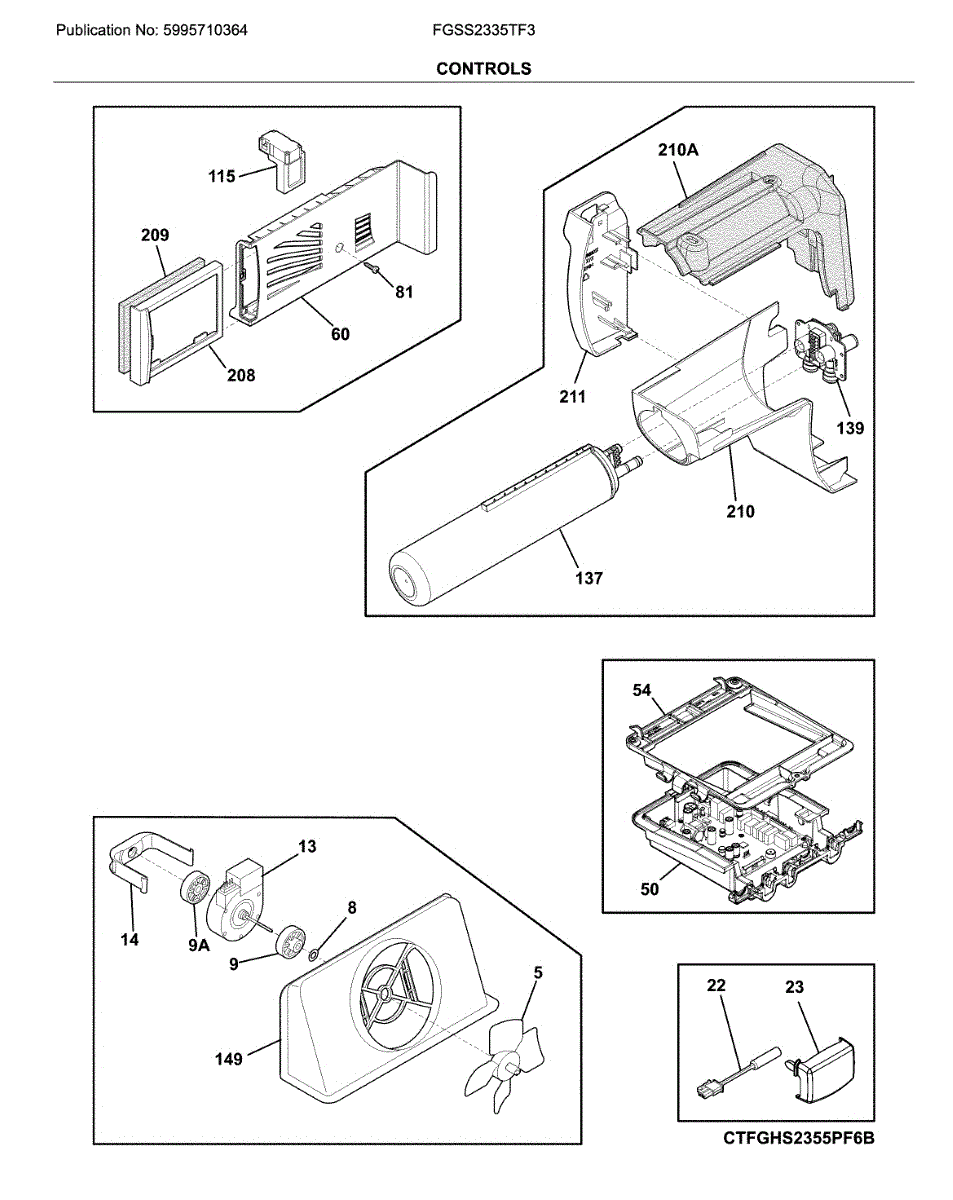

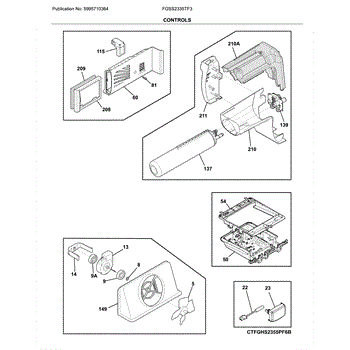

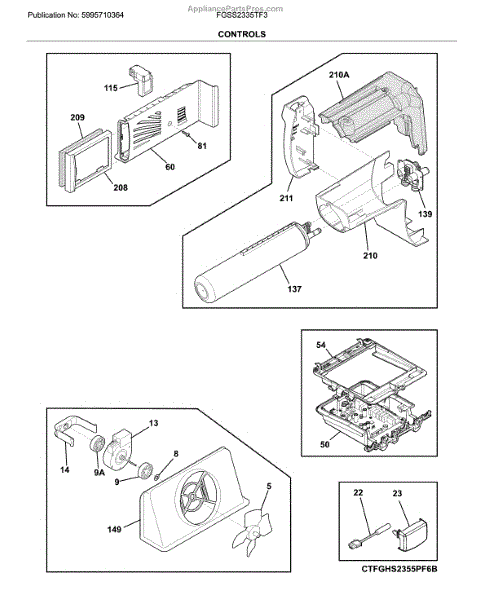

Parts for Frigidaire FGSS2335TF3: Controls Parts

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

The Motor Bushing is an OEM part for Frigidaire refrigerators. The bushing works to reduce vibration and surrounds the motor shaft, facilitating smooth rotational movement.

Causes can be normal wear over extensive use, lack of lubrication that increases friction, or damage from foreign object intrusion.

Symptoms of a bad motor bushing include:

• Excessive vibration causing noise during motor operation
• Reduced fan blade spinning speed or complete stoppage
• Motor shaft wobble or misalignment over time

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator fan motor mounting bushing isolates the motor from its bracket to reduce vibration and rattling. Replacing a worn bushing helps keep the fan secure and centered so airflow remains smooth and operation is quieter. What it does:

• Cushions and isolates the evaporator fan motor to reduce vibration and noise
• Helps maintain motor alignment to prevent the fan blade from rubbing the shroud
• Secures the motor to the mounting bracket
• Typical symptoms: rattling or buzzing from the freezer, fan wobble, loose motor, or a cracked/missing bushing

• One motor mounting bushing

• Unplug the refrigerator before servicing and wear safety gloves
• Remove the freezer back panel/evaporator cover to access the fan motor
• Support the motor, remove fasteners, and transfer/install the bushing on the bracket/motor as shown in your service diagram
• Ensure the bushing is fully seated and the fan blade spins freely with proper clearance before reassembly

The Motor Blower is an OEM part for Frigidaire refrigerator. It circulates cool air throughout the interiors to achieve and maintain the proper temperatures for food safety.

Causes of a bad motor blower can involve a worn or damaged motor bearing from years of continuous operation, or defective internal wiring causing electrical issues over many power cycles. Improper cleaning introducing moisture can also produce disturbances.

Symptoms of a bad motor blower include:

• Fluctuating or warmer than normal interior temps
• Frost or ice buildup from inadequate air flow
• Noisy vibrations or abnormal sounds from within
• Inability to precisely regulate temperature settings

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The damper control regulates the flow of cold air from the freezer into the fresh food compartment, helping maintain steady temperatures. Replacing this assembly restores proper airflow and consistent cooling.

• Opens and closes the air door to meter cold air from the freezer into the refrigerator
• Helps maintain the set temperature and even cooling across shelves
• Common failure signs: fresh food section too warm or too cold, weak/no airflow, clicking or grinding from the damper area
• Visible damage or a door stuck in one position can indicate replacement is needed

• Disconnect power before servicing
• Access the damper in the refrigerator control/air duct area; remove covers and retain screws per your model
• Transfer any mounting hardware or seals from the old assembly if needed
• After installation, ensure the door moves freely and allow up to 24 hours for temperatures to stabilize

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This water filter base secures the refrigerator's replaceable water filter cartridge and directs filtered water to the dispenser and icemaker. Replacing a damaged base restores a proper seal and helps prevent leaks and flow interruptions. What it does:

• Holds and seals the water filter cartridge so water passes through the filter media
• Directs filtered water to the dispenser and icemaker plumbing
• Prevents leaks caused by cracked or worn filter housing
• Can resolve low water flow, intermittent dispensing, or water taste issues when base is leaking or not sealing

• One water filter base assembly

• Turn off refrigerator and shut off the water supply before starting
• Relieve system pressure by dispensing water until flow stops, if applicable
• Remove the old housing carefully; inspect O-rings and replace if damaged
• Hand-tighten only; check connections and test for leaks after restoring water and power

This shroud assembly covers and channels airflow around the evaporator to help protect internal components and promote even cooling. It restores proper airflow pathways after damage or during evaporator repairs. What it does:

• Protects evaporator and nearby components from debris and contact
• Directs airflow over the evaporator for consistent cooling performance
• Helps reduce localized frost buildup when used with a functioning defrost system
• Commonly replaced if cracked, broken mounting tabs, or interfering with the fan

• One shroud assembly as shown

• Disconnect power before servicing; work only with the appliance unplugged or breaker off
• Removal typically requires accessing the evaporator compartment and removing panels; keep fasteners organized
• Handle plastic parts carefully to avoid cracking mounting tabs during installation

This small replacement sleeve protects and guides a moving component in the appliance to reduce wear and ensure smoother operation. It helps maintain correct alignment where parts slide or rotate, preventing metal-on-metal contact. What it does:

• Acts as a protective liner or guide for a rotating or sliding shaft or pin
• Reduces wear and friction between mating parts
• Helps stop scraping, squeaking, or uneven movement around the fitted area
• Supports proper part alignment for reliable operation

• One replacement sleeve as shown

• Replace only with the exact part number to ensure correct fit
• Inspect mating shaft/pin for wear and clean before installing the sleeve
• Apply light lubricant only if specified by the manufacturer; avoid over-lubrication
• Disconnect power and follow all safety guidelines before servicing the appliance

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This water filter housing replaces the fridge's filter enclosure to help restore sealed water flow to the dispenser and icemaker. It provides the structural mounting and water connections for the replaceable filter cartridge. What it does:

• Holds and seals the replaceable water filter cartridge in the refrigerator water system
• Directs filtered water to the dispenser and icemaker while maintaining a watertight connection
• Can resolve symptoms like leaks at the filter area, reduced water flow, or a filter that won't seat properly
• Works with the existing filter cartridge and line fittings; does not contain the filter media

• One water filter housing assembly

• Turn off the refrigerator water supply and run the dispenser to relieve pressure before removing the old housing
• Inspect O-rings and quick-connect fittings; replace damaged seals to prevent leaks
• Hand-tighten connections and check for leaks after restoring water; avoid overtightening plastic fittings

This refrigerator water filter mount secures the filter head/housing to the liner so the cartridge seats squarely and seals. Replace a cracked or loose mount to restore a snug fit and help prevent leaks or vibration.

• Holds the water filter housing firmly in place
• Aligns the cartridge for proper engagement with the filter head
• Helps maintain a watertight seal at the filter connection
• Common symptoms: filter won't lock in or sits crooked, drips around the filter area, difficulty installing/removing the filter, or rattling from a loose housing

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Remove the filter and any cover/trim to access the mount; retain existing screws for reuse
• Install the new mount and tighten screws gently to avoid cracking plastic
• Reinstall the filter, restore water and power, flush the dispenser, and check for leaks

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This cover is a protective housing piece that shields internal components from dust, debris and incidental contact. It helps keep wiring and small parts secure for reliable appliance operation. What it does:

• Protects electrical components and wiring from debris and accidental contact
• Helps maintain proper airflow around sensitive parts
• Reduces risk of shorting or damage from loose objects
• Preserves the appliance's internal layout for safer service and operation

• One cover

• Power off and unplug the appliance before servicing to avoid electrical shock
• Handle gently to avoid snapping plastic clips; use appropriate screwdrivers if fasteners are present
• If clips or fasteners are damaged, replace them before returning the appliance to service
