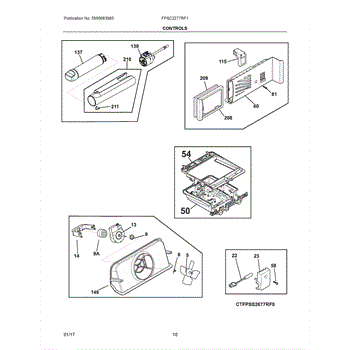

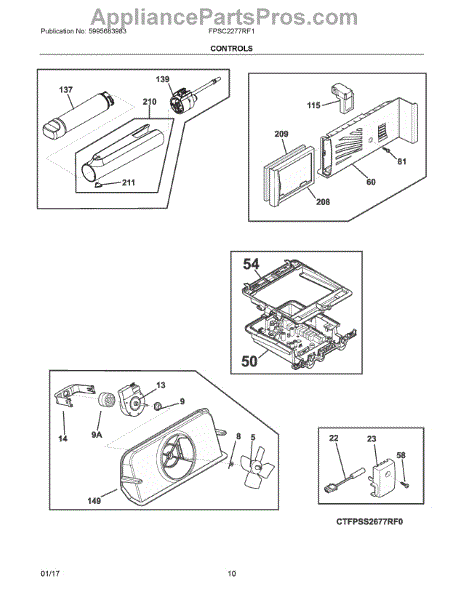

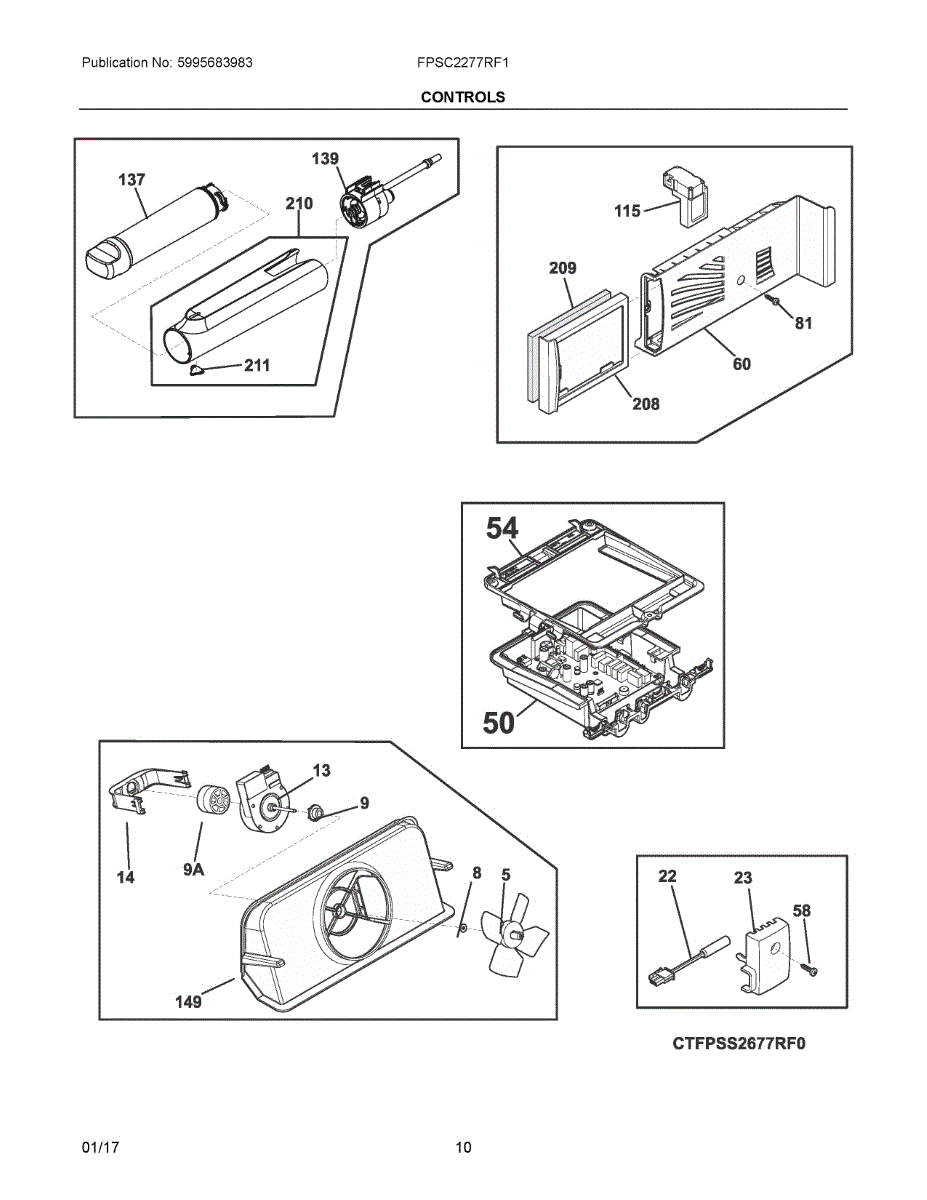

Parts for Frigidaire FPSC2277RF1: 06 - Controls Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

A replacement bushing that supports a rotating shaft and reduces wear between moving metal parts, restoring smooth, quiet operation. Fits OEM specification to ensure proper alignment and long-lasting performance. What it does:

• Cushions and guides a rotating shaft or drum to prevent metal-on-metal contact
• Reduces noise, vibration, and wobble caused by worn support surfaces
• Helps maintain proper shaft/drum alignment for even operation
• Limits premature wear to adjacent bearings, seals, and housing

• One bushing

• Disconnect power before starting any repair and follow OEM disassembly instructions
• Replacement typically requires access to the motor/shaft or drum housing; some disassembly may be necessary
• Inspect adjacent bearings and seals and replace if worn to prevent repeat failures

The Motor Bushing is an OEM part for Frigidaire refrigerators. The bushing works to reduce vibration and surrounds the motor shaft, facilitating smooth rotational movement.

Causes can be normal wear over extensive use, lack of lubrication that increases friction, or damage from foreign object intrusion.

Symptoms of a bad motor bushing include:

• Excessive vibration causing noise during motor operation
• Reduced fan blade spinning speed or complete stoppage
• Motor shaft wobble or misalignment over time

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Evaporator Fan Motor is an OEM replacement part for Electrolux refrigerators. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.

Over time, the evaporator fan motor can wear out or fail due to mechanical stress, dust or debris accumulation, or electrical issues. A malfunctioning motor can lead to uneven cooling or inadequate refrigeration, impacting the overall performance of the appliance.

Symptoms of a bad evaporator fan motor include:

• Unusual noises such as rattling or humming
• Inconsistent or inadequate cooling
• Ice buildup in the freezer or refrigerator compartments
• The refrigerator running constantly without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Frigidaire, Gibson, Kelvinator, and Kenmore models.

NOTE: THE CHANGE FROM 4-WIRE TO 3-WIRE DOES NOT IMPACT PART

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Main power control board (PCB assembly) routes and regulates power to the appliance's electronics so controls, displays, and motors can operate reliably. It restores proper power distribution and control response when the original board fails. What it does:

• Routes and regulates incoming power to control circuits and components
• Provides signals to user interface, relays, and timed functions
• Helps resolve symptoms like no power to controls/display, unresponsive buttons, or intermittent operation
• Works as the primary electronics hub for coordinated appliance functions

• One main power control board (PCB) assembly as shown

• Disconnect electrical power before servicing; risk of shock or damage
• Handle the board by edges and avoid static discharge; use grounding strap if available
• Verify the part number on the old board before ordering and compare connectors for fit

This genuine replacement screw secures appliance components and panels so parts stay properly aligned and rattle-free. Use it to replace a missing, stripped, or corroded fastener and restore a snug, reliable fit.

• Fastens brackets, covers, panels, and other hardware in their original locations
• Helps resolve loose or vibrating components and rattling noises
• Replaces missing or damaged hardware that can cause gaps or misalignment
• May be used in multiple locations

• Disconnect power; shut off water supply if working near water lines
• Compare to the original screw and install in the same location/orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Refer to your model's exploded view to verify quantity and placement

The damper control regulates the flow of cold air from the freezer into the fresh food compartment, helping maintain steady temperatures. Replacing this assembly restores proper airflow and consistent cooling.

• Opens and closes the air door to meter cold air from the freezer into the refrigerator
• Helps maintain the set temperature and even cooling across shelves
• Common failure signs: fresh food section too warm or too cold, weak/no airflow, clicking or grinding from the damper area
• Visible damage or a door stuck in one position can indicate replacement is needed

• Disconnect power before servicing
• Access the damper in the refrigerator control/air duct area; remove covers and retain screws per your model
• Transfer any mounting hardware or seals from the old assembly if needed
• After installation, ensure the door moves freely and allow up to 24 hours for temperatures to stabilize

The Water Filter Head is an OEM part for Frigidaire refrigerators. This part is important for providing clean, filtered water by ensuring a tight seal and proper flow between the filter and the water dispenser or ice maker.

Causes of a bad water filter head can include wear and tear over time, damage during filter replacement, or a manufacturing defect affecting the seal or the connection points.

Symptoms of a malfunctioning water filter head include:

• Leaks around the water filter area
• Difficulty installing or removing the water filter
• Poor water flow to the dispenser or ice maker
• Unusual noise from the filter area when the dispenser is used

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This shroud assembly is the molded housing that directs airflow and protects internal components. It restores proper airflow routing for efficient operation and helps reduce noise and debris entry around the blower area. What it does:

• Directs and channels airflow from the blower to the vent or drum, improving performance.
• Protects the blower motor and wiring from lint, debris, and incidental contact.
• Helps reduce blower noise by enclosing and stabilizing the blower area.
• Worn, cracked, or damaged shrouds can contribute to reduced airflow, unusual noise, or visible gaps near the blower.

• One shroud assembly

• Disconnect power (and gas if applicable) before beginning work.
• Remove outer panels or access covers to reach the blower housing.
• Support the blower/motor assembly during removal and align mounting tabs carefully; avoid forcing fasteners.

This small replacement sleeve protects and guides a moving component in the appliance to reduce wear and ensure smoother operation. It helps maintain correct alignment where parts slide or rotate, preventing metal-on-metal contact. What it does:

• Acts as a protective liner or guide for a rotating or sliding shaft or pin
• Reduces wear and friction between mating parts
• Helps stop scraping, squeaking, or uneven movement around the fitted area
• Supports proper part alignment for reliable operation

• One replacement sleeve as shown

• Replace only with the exact part number to ensure correct fit
• Inspect mating shaft/pin for wear and clean before installing the sleeve
• Apply light lubricant only if specified by the manufacturer; avoid over-lubrication
• Disconnect power and follow all safety guidelines before servicing the appliance

This is a replacement electrical plug used to reconnect a wiring harness to an appliance component, restoring a secure electrical connection and helping stop intermittent power loss or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Replaces a cracked, burned, or loose plug that can cause intermittent operation
• Helps restore power to the affected component when failure is due to a faulty connector
• Prevents arcing or poor contact that can lead to overheating or component malfunction

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle wiring and terminals carefully; do not force connectors into place
• If wiring or terminals are damaged, repair or replace them rather than relying solely on a new plug

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present
