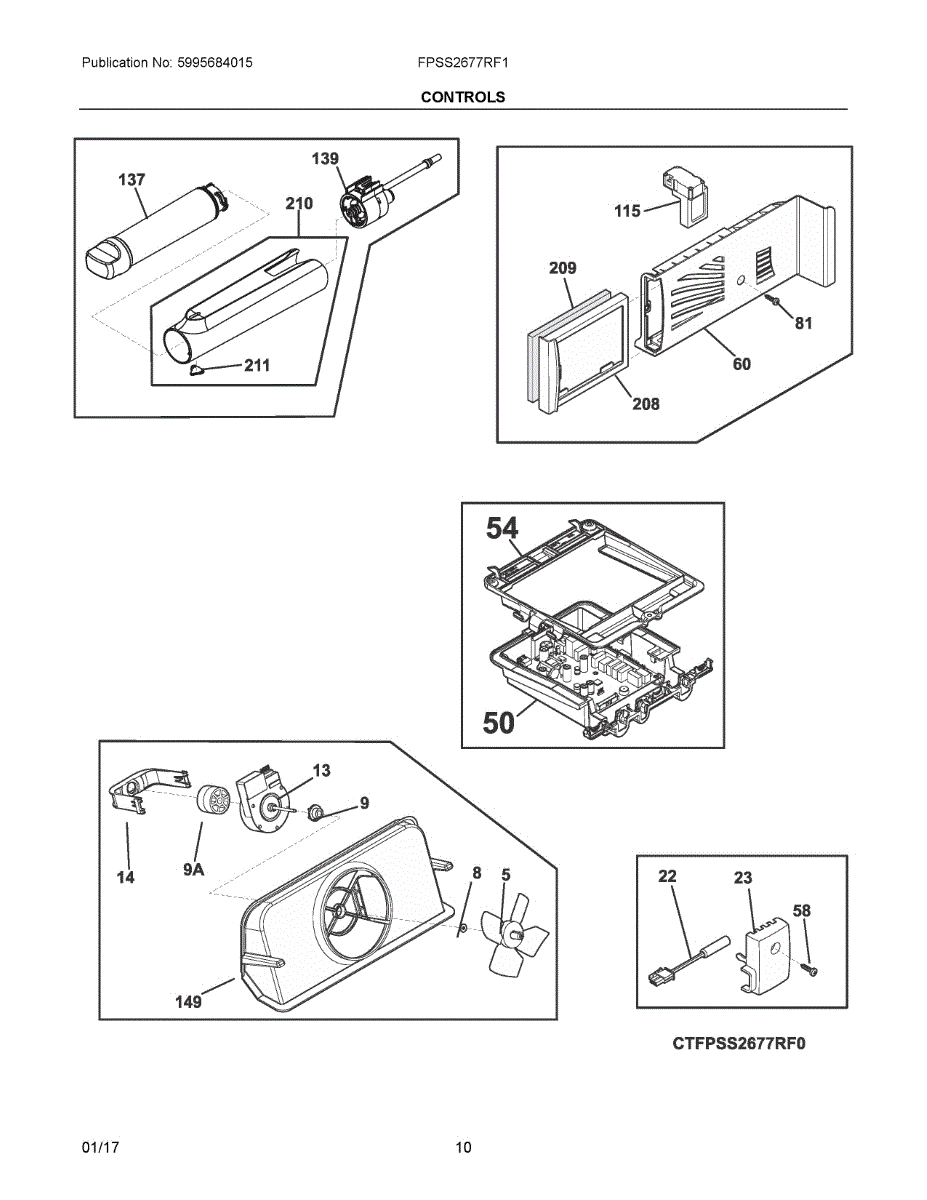

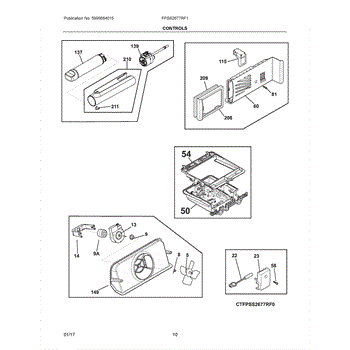

Parts for Frigidaire FPSS2677RF1: 06 - Controls Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

The Motor Bushing is an OEM part for Frigidaire refrigerators. The bushing works to reduce vibration and surrounds the motor shaft, facilitating smooth rotational movement.

Causes can be normal wear over extensive use, lack of lubrication that increases friction, or damage from foreign object intrusion.

Symptoms of a bad motor bushing include:

• Excessive vibration causing noise during motor operation
• Reduced fan blade spinning speed or complete stoppage
• Motor shaft wobble or misalignment over time

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator fan motor mounting bushing isolates the motor from its bracket to reduce vibration and rattling. Replacing a worn bushing helps keep the fan secure and centered so airflow remains smooth and operation is quieter. What it does:

• Cushions and isolates the evaporator fan motor to reduce vibration and noise
• Helps maintain motor alignment to prevent the fan blade from rubbing the shroud
• Secures the motor to the mounting bracket
• Typical symptoms: rattling or buzzing from the freezer, fan wobble, loose motor, or a cracked/missing bushing

• One motor mounting bushing

• Unplug the refrigerator before servicing and wear safety gloves
• Remove the freezer back panel/evaporator cover to access the fan motor
• Support the motor, remove fasteners, and transfer/install the bushing on the bracket/motor as shown in your service diagram
• Ensure the bushing is fully seated and the fan blade spins freely with proper clearance before reassembly

The Motor Blower is an OEM part for Frigidaire refrigerator. It circulates cool air throughout the interiors to achieve and maintain the proper temperatures for food safety.

Causes of a bad motor blower can involve a worn or damaged motor bearing from years of continuous operation, or defective internal wiring causing electrical issues over many power cycles. Improper cleaning introducing moisture can also produce disturbances.

Symptoms of a bad motor blower include:

• Fluctuating or warmer than normal interior temps
• Frost or ice buildup from inadequate air flow
• Noisy vibrations or abnormal sounds from within
• Inability to precisely regulate temperature settings

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This main power control board is the refrigerator's central PCB that directs compressor, fan, defrost and user-interface operations so the appliance runs and keeps food at the correct temperature. Replacing a faulty board restores normal control functions. What it does:

• Supplies and sequences power to the compressor, evaporator/condenser fans, and defrost system
• Interprets user inputs and runs display/LED indicators and control relays
• Stops or prevents normal operation when the board fails, causing no cooling or unresponsive controls
• Can cause constant running, no start, or erratic cycling when damaged

• One main power control board (PCB) assembly

• Disconnect power before starting work to avoid shock and protect the new board
• Handle the PCB by its edges and avoid touching circuitry; observe ESD precautions
• Compare part numbers and connector locations to the old board before installing
• Reassemble panels and verify proper operation after restoring power

This genuine replacement screw secures appliance components and panels so parts stay properly aligned and rattle-free. Use it to replace a missing, stripped, or corroded fastener and restore a snug, reliable fit.

• Fastens brackets, covers, panels, and other hardware in their original locations
• Helps resolve loose or vibrating components and rattling noises
• Replaces missing or damaged hardware that can cause gaps or misalignment
• May be used in multiple locations

• Disconnect power; shut off water supply if working near water lines
• Compare to the original screw and install in the same location/orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Refer to your model's exploded view to verify quantity and placement

The damper control regulates the flow of cold air from the freezer into the fresh food compartment, helping maintain steady temperatures. Replacing this assembly restores proper airflow and consistent cooling.

• Opens and closes the air door to meter cold air from the freezer into the refrigerator
• Helps maintain the set temperature and even cooling across shelves
• Common failure signs: fresh food section too warm or too cold, weak/no airflow, clicking or grinding from the damper area
• Visible damage or a door stuck in one position can indicate replacement is needed

• Disconnect power before servicing
• Access the damper in the refrigerator control/air duct area; remove covers and retain screws per your model
• Transfer any mounting hardware or seals from the old assembly if needed
• After installation, ensure the door moves freely and allow up to 24 hours for temperatures to stabilize

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter Head is an OEM part for Frigidaire refrigerators. This part is important for providing clean, filtered water by ensuring a tight seal and proper flow between the filter and the water dispenser or ice maker.

Causes of a bad water filter head can include wear and tear over time, damage during filter replacement, or a manufacturing defect affecting the seal or the connection points.

Symptoms of a malfunctioning water filter head include:

• Leaks around the water filter area
• Difficulty installing or removing the water filter
• Poor water flow to the dispenser or ice maker
• Unusual noise from the filter area when the dispenser is used

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Shroud assembly that covers internal refrigerator components and helps direct airflow for consistent cooling. Replacing a cracked or damaged shroud restores proper airflow paths and can reduce fan vibration and contact-related noise. What it does:

• Covers and protects internal components from debris and accidental contact.
• Directs airflow around the evaporator/fan area to support even cooling; symptoms of a failing shroud include uneven cooling or frost buildup.
• Reduces fan noise and vibration when mounting tabs or the housing are intact.
• Visible cracks, broken tabs, or holes are common signs the shroud needs replacement.

• Always disconnect power to the appliance before beginning any repair.
• Remove interior panels and fasteners carefully; retain hardware for reinstallation.
• Align tabs and mounting points; do not force broken tabs—replace damaged fasteners as needed.

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a replacement electrical plug used to reconnect a wiring harness to an appliance component, restoring a secure electrical connection and helping stop intermittent power loss or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Replaces a cracked, burned, or loose plug that can cause intermittent operation
• Helps restore power to the affected component when failure is due to a faulty connector
• Prevents arcing or poor contact that can lead to overheating or component malfunction

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle wiring and terminals carefully; do not force connectors into place
• If wiring or terminals are damaged, repair or replace them rather than relying solely on a new plug

This air duct insulation cushions and seals the refrigerator/freezer air pathway to help reduce condensation and noise. It replaces worn or missing insulation that can allow cold-air leaks and excess moisture build-up. What it does:

• Fits around the internal air duct to help prevent air leaks and reduce moisture buildup.
• Helps minimize condensation and frost in the cabinet and on internal components.
• Dampens vibration and reduces airflow noise from the duct area.
• Restores proper airflow sealing after damage, deterioration, or previous part removal.

• Insulation air duct piece as shown

• Turn off and unplug the appliance before accessing internal components.
• Remove shelves, panels, and any fasteners as needed to reach the duct; keep track of hardware.
• Position the insulation exactly as the original and secure any clips or adhesive used by the manufacturer.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present
