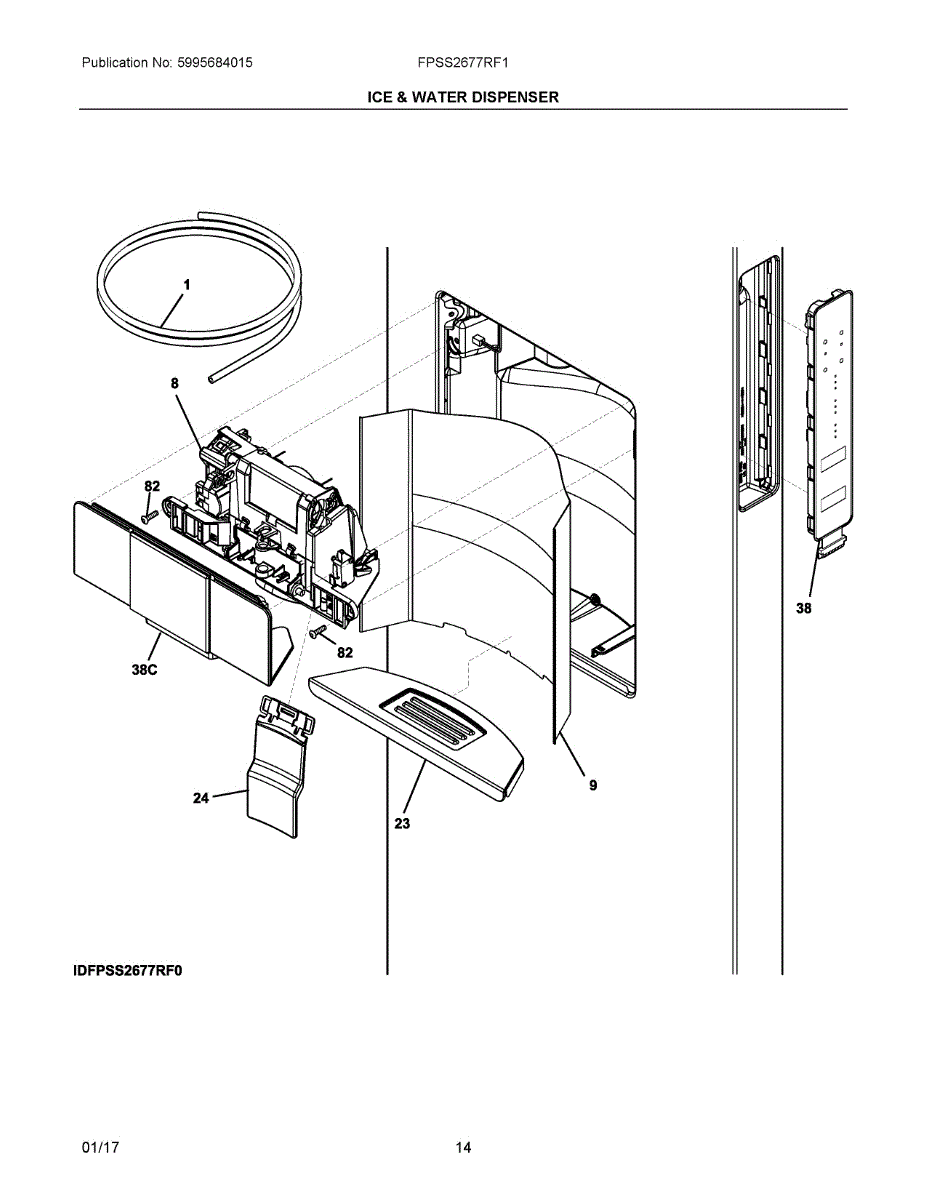

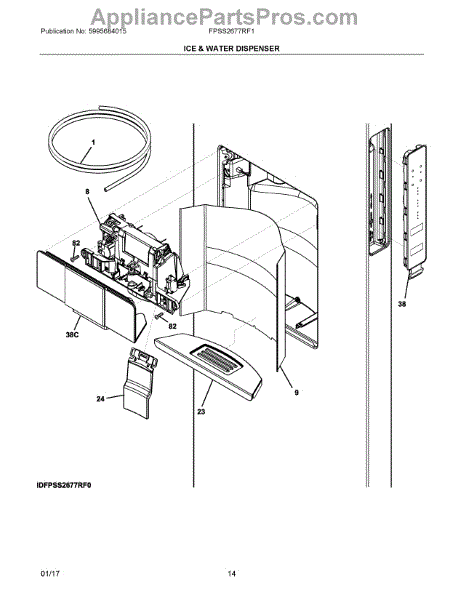

Parts for Frigidaire FPSS2677RF1: 08 - Ice & Water Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Dispenser and Paddle Kit is an OEM part for Frigidaire refrigerators. It includes both the water dispenser located on the refrigerator door as well as the paddle used to dispense ice and water from the door.

Causes of a bad dispenser and paddle kit can include wear and tear over time, mineral or limescale buildup that impacts mechanics, or damage from repeated closing of the refrigerator door.

Symptoms of a bad dispenser and paddle kit include:

• Difficulty dispensing water or ice
• Leaks or drips from the dispenser area
• The dispenser or paddle not operating correctly
• Failure to dispense desired amounts of water or ice

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This actuator is the small mechanical link that engages an internal switch or mechanism in your appliance. Replacing a worn or broken actuator restores positive engagement so the related feature responds reliably when pressed or driven.

• Transfers motion from a lever/button or solenoid to the switch, door, or flap it controls
• Common symptoms: feature will not activate, lever feels loose or sticks, intermittent response, or visible cracks/missing tab
• Restores proper travel and consistent switch engagement
• Direct replacement matches the original actuator used in the assembly

• Disconnect power before servicing; shut off water if working near any dispenser plumbing
• Access the relevant control, dispenser, or latch housing
• Note and transfer any springs/clips in the same orientation to the new part
• After reassembly, verify smooth movement and correct switch activation before full use

Color: Black

The User Interface is an OEM part for Frigidaire refrigerators. It houses the digital control panel and touchscreen display that allows for convenient operation and customized settings.

Causes involve general wear and tear of electronic components from extensive use, as well as potential moisture damage internally

Symptoms of a bad user interface include:

• Unresponsive or glitchy touch controls
• Faded, pixelated or cracked display screen
• Inaccurate temperature readings after a period of use
• Failure to save customized settings over time

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water flow and preventing leaks when the original tubing is cracked or worn. Simple direct-fit replacement when the OEM tubing fails. What it does:

• Carries water between the refrigerator supply and the dispenser or ice maker
• Replaces cracked, split or collapsed tubing that can cause leaks
• Helps restore steady water flow and proper ice-making or dispensing
• Prevents water damage from deteriorated or pinched lines

• Designed for refrigerator models that use this exact OEM tube
• Disconnect power and shut off the water supply before replacing tubing
• Inspect connections and seals; replace any damaged clips or fittings to ensure a watertight seal
