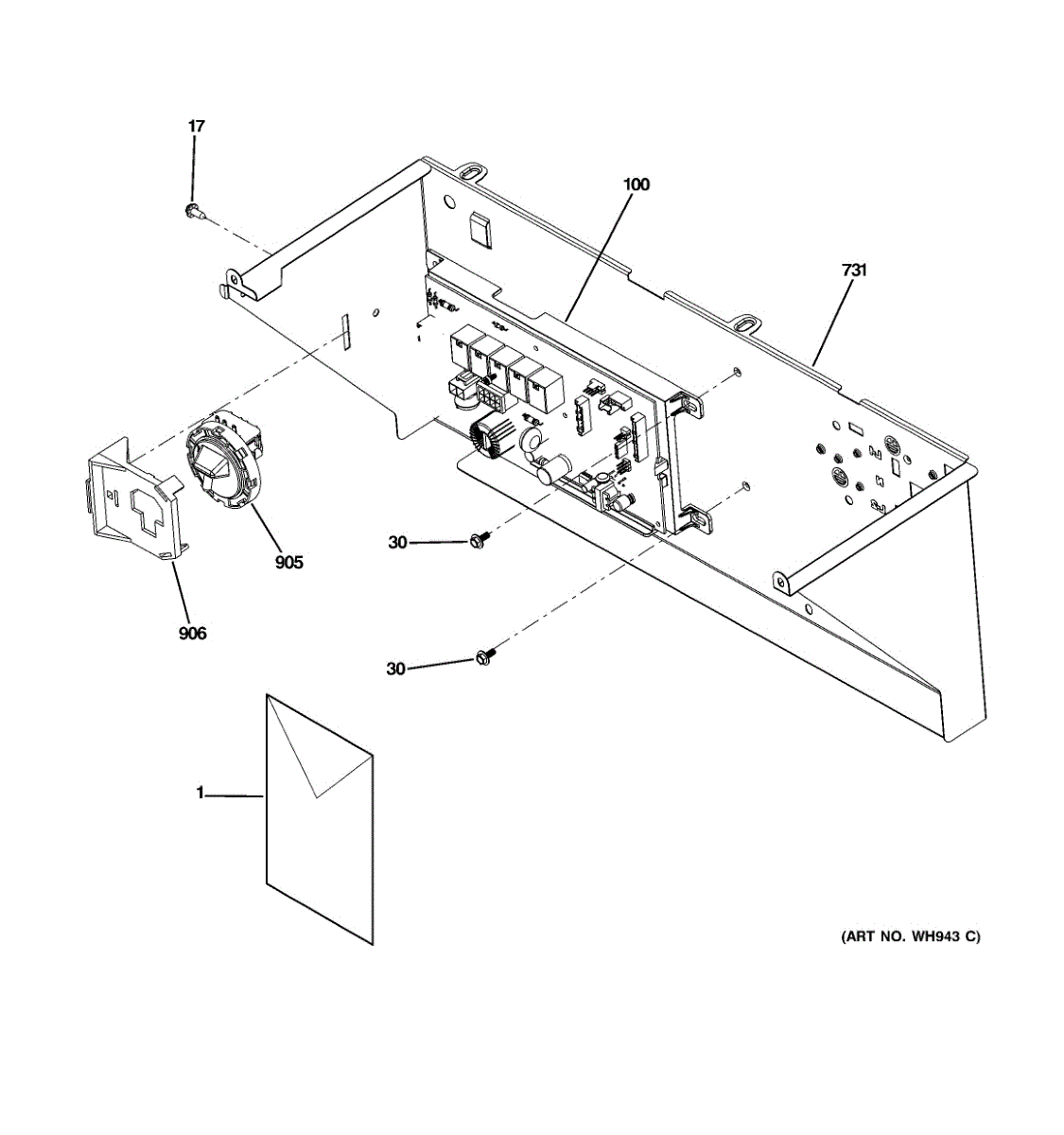

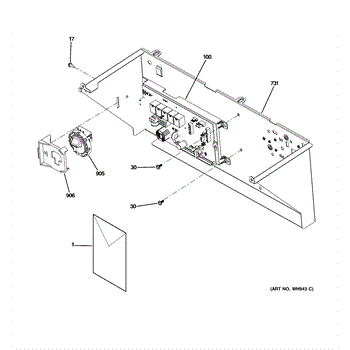

Parts for Ge GTUP240EM5WW: 01 - Controls Parts

Size: 8 - 18 ab.

This is a replacement 8-32 trilobular hex screw used to fasten appliance panels and components. It restores secure mounting and helps eliminate loose parts or rattling caused by missing or worn fasteners. What it does:

• Secures panels, brackets, or components in place using an 8-32 trilobular thread form
• Helps prevent vibration, rattling, and loose connections when fasteners are missing or stripped
• Designed to match OEM thread style for proper engagement and retention
• Used wherever a small hex-head machine screw is required for assembly

• Use the correct driver/socket to avoid rounding the hex head
• Tighten to snug fit; avoid over-torquing which can strip threads or damage parts
• If replacing a stripped hole, inspect mating threads and consider a thread repair or alternate fastening method
• Disconnect power to the appliance before accessing internal components to reduce risk of shock or injury

This electronic control board assembly is the washer's central controller, managing cycle selection, timing, and communication with key components. Replacing a failed board can restore proper operation and dependable cycle performance. What it does

• Interprets user inputs and sensor signals to run wash, rinse, and spin sequences
• Sends power and control signals to the motor, drain pump, water valves, and lid/lock as designed
• Controls cycle timing, speeds, and status indicators
• Symptoms may include: washer won't power on or start, unresponsive controls, cycle won't advance or stops mid-cycle, or error codes/blinking lights

• One electronic control board assembly

• Disconnect power before servicing; verify no voltage is present
• Handle the PCB by the edges and use ESD protection
• Photograph/label wiring; transfer connectors to the new board one at a time
• Secure the board in the original mounts; some models may require configuration per service instructions

This electronic water level pressure switch senses air pressure from the wash tub and tells the control when to start and stop filling. Replacing a failed switch restores proper fill levels and helps cycles advance reliably. What it does:

• Monitors tub water level via an air hose connected to the switch
• Signals the control to start/stop the inlet valves at the correct level
• Enables cycle progression by confirming empty/full status
• Common symptoms: won't stop filling, stops filling too soon, incorrect water level, or water-level error codes

• 1 electronic pressure switch

• Disconnect power and turn off water supply before servicing
• Access the switch in the control console or rear cabinet area (location varies by model)
• Move the pressure hose and wire connector(s) over one at a time; ensure airtight hose fit and proper routing without kinks
• Inspect the hose and air dome for cracks, kinks, or blockages; clear or replace if needed
