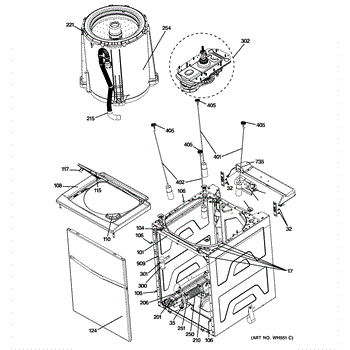

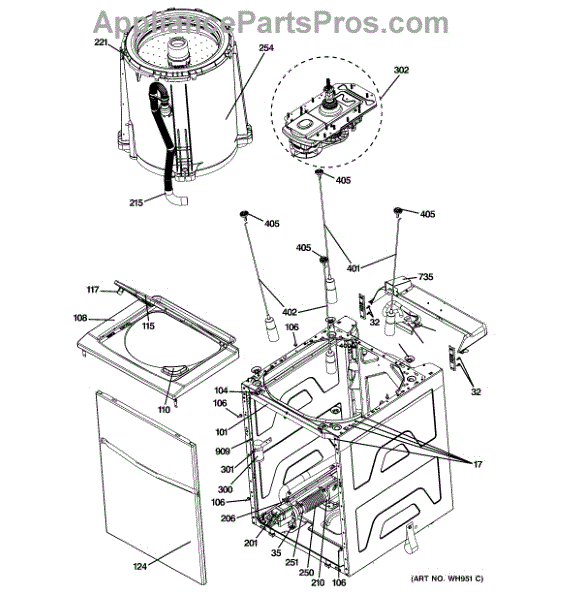

Parts for Ge GTUP240EM5WW: 11 - Cabinet (4) Parts

Size: 8 - 18 ab.

This is a replacement 8-18 threaded hex-washer-head screw (3/8" length, zinc finish) used to secure panels and components on compatible appliances. It restores proper fit and stops rattling or loose parts. What it does

• Fastens panels, brackets, or assemblies where an 8-18 threaded screw is specified
• Replaces missing or damaged screws that cause loose panels or vibration
• Restores secure mounting for trim, brackets, or internal components
• Matches OEM head style and finish for correct fit and appearance

• One replacement screw (8-18 x 3/8", hex washer head, zinc)

• Disconnect power and water before starting any repair
• Use the correct driver or bit to avoid stripping the head
• Do not overtighten; snug to secure components without deforming parts
• If other fasteners are damaged, replace them with identical OEM parts

This locking clip secures a mating component inside the washer, keeping it firmly attached to its mounting point. Replacing a worn or missing clip restores a snug fit and helps prevent movement, intermittent connections, and noise during operation.

• Retains the designated component securely to its bracket or panel
• Helps prevent vibration-related movement, rattling, or disconnection
• Maintains proper alignment for consistent operation
• Typical signs of failure: cracked or missing clip, part won't stay seated, new looseness around the mount

• Disconnect power and turn off water before servicing
• Access the clip location per your model's service information
• Release and remove the old clip; inspect the mating part for damage or wear
• Seat the new clip fully until it locks; verify the component is secure before reassembly

A replacement pin alignment used to correctly position and secure moving parts in appliance hinge or latch assemblies. Restores proper alignment to reduce sagging, rubbing, or uneven operation for smoother, quieter performance. What it does:

• Aligns and secures hinge or latch components to maintain correct movement and fit
• Helps stop door sag, binding, or uneven closing when the alignment pin is worn or damaged
• Reduces rubbing and noise caused by misaligned parts
• Restores proper clearance for seals and moving assemblies

• One pin alignment

• Refer to the appliance OEM service manual for model-specific removal and installation steps
• Disconnect power (or unplug) and, if applicable, remove stored contents before working on doors or hinges
• Use basic hand tools; avoid forcing parts or over-tightening fasteners to prevent damage
• If alignment issues persist after replacement, inspect associated hinges, brackets, and fasteners for wear

Bleach funnel directs liquid bleach from the washer dispenser into the wash tub for even distribution and helps reduce spills, pooling, and bleach odor. Designed to replace cracked, clogged, or worn dispenser funnels. What it does:

• Directs bleach into the wash tub for consistent dispensing and mixing during the wash cycle.
• Helps prevent bleach pooling, dispenser leaks, and blockages that can cause odors or uneven bleaching.
• Replaces damaged or deteriorated funnels; common symptoms include visible cracks, leaking, or persistent bleach residue in the dispenser area.

• Disconnect power to the appliance before servicing to reduce risk of shock or injury.
• The funnel typically seats or snaps into the dispenser housing.
• Inspect and clean surrounding dispenser components before installing the new funnel; rinse the part to remove any manufacturing residue.
• Handle concentrated bleach with care—wear gloves and follow bleach safety instructions.

This lid washer cushions and spaces the washer lid hinge so the lid opens and closes smoothly and reduces wear. It helps restore proper lid alignment and quiet operation on compatible top-load washer models. What it does:

• Provides a bearing surface at the lid hinge to prevent metal-on-metal contact
• Reduces lid wobble, scraping, or grinding noises during opening and closing
• Helps maintain correct lid spacing and alignment for secure closing
• Prevents premature wear of hinge components by absorbing friction

• One lid washer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access the lid hinge per your model's service instructions; remove hinge fasteners to replace the washer
• Handle small parts carefully and keep track of any related clips or screws

This lid actuator engages the washer's lid switch or lock when the lid closes, signaling the control that it's safe to run. Replacing a worn or broken actuator restores reliable lid detection for wash and spin cycles.

• Engages the lid switch/lock when the lid is closed
• Signals the control to allow the washer to start and spin
• A damaged or missing actuator can lead to "lid open" errors
• Common symptoms include won't start, won't spin, or lid lock light flashing

• Disconnect power before servicing
• Access the lid switch/lock area; remove the failed actuator
• Install the new actuator, aligning it to the original mounting points; reuse existing hardware
• Close up and test lid detection before running a full cycle

This front panel assembly replaces a damaged or worn control-panel face to restore the appliance's front appearance and provide a secure mounting surface for controls. It keeps the control area sealed and looking factory-fresh. What it does:

• Replaces the visible front/control panel to cover and protect underlying controls and electronics
• Provides a mounting surface for buttons, knobs, or the touch-control interface
• Helps prevent dirt, grease, and moisture from reaching internal components
• Common repair for cracked, discolored, or broken control-face panels

• One front panel assembly as shown

• Installation requires removing the range/oven console and disconnecting power first — disconnect power at the breaker or unplug the appliance
• Handle panels and clips carefully to avoid damaging trim tabs or painted surfaces
• Use proper fasteners and alignment during reassembly; verify controls and display function before returning the appliance to service
• Label connections and take photos for reference

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

This clamp is a small retaining fastener used to secure hoses, tubes or wiring to appliance fittings and keep connections stable during operation. It helps prevent leaks, chafing and loose connections that can cause performance issues. What it does:

• Secures a hose or tube to a barb or fitting to maintain a tight seal
• Prevents hoses and lines from slipping free during use or vibration
• Reduces wear from rubbing or chafing by holding components in place
• Helps stop minor leaks at hose junctions when properly seated

• One clamp (quantity: 1)

• Disconnect power and water supply before servicing the appliance
• Drain or catch any residual water from hoses before removing the old clamp
• Use the correct pliers or screwdriver for the clamp type; avoid over-tightening which can damage hoses
• Inspect adjacent hoses and fittings and replace any worn components while accessible

A replacement tub outlet clamp that secures the drain boot or hose to the washer tub outlet to help prevent leaks and hose separation. Simple, durable hardware designed to restore a secure water-tight connection. What it does:

• Fastens the drain boot or outlet hose to the tub outlet to stop leaks at the connection.
• Keeps the drain hose or boot from slipping off during the wash cycle.
• Restores a tight, stable seal after worn or damaged clamps cause leaking.
• Works with the tub outlet/boot assembly to maintain normal drain flow.

• One tub outlet clamp.

• Disconnect power to the appliance before beginning any repair.
• Turn off water supply and drain any remaining water from the tub to avoid spills.
• Use appropriate pliers or a screwdriver (depending on clamp type) to remove the old clamp and secure the replacement.
• Inspect the boot/hose and tub outlet for damage; replace damaged components as needed for a reliable seal.

This overflow elbow is a small drain fitting that routes excess water away from the appliance to prevent spills and water damage. It restores proper overflow/drain flow so the unit can safely divert unwanted water. What it does:

• Directs overflow or drain water from the appliance plumbing to the drain path
• Replaces cracked, clogged, or leaking elbows that can cause pooling or leaks
• Helps restore normal draining behavior and reduces risk of water where it shouldn't be
• Fits into the appliance's existing drain/overflow tubing and connections

• One overflow elbow

• Inspect surrounding hoses and clips; replace any damaged components for a reliable repair
• Disconnect power and water supply before beginning work to avoid electrical shock or flooding
• Use appropriate clamps or fittings to ensure a secure, leak-free connection

Note: Newly designed cover includes 4 new rod and spring assemblies. The tub dampening straps and clips are no longer used.

This drain inlet hose carries wastewater through the washer's internal drain path during drain and spin cycles. Replacing a cracked, kinked, or leaking hose helps restore proper draining and protect floors and nearby components from water damage. What it does:

• Routes drain water between internal components to the drain outlet
• Maintains a sealed flow path to help prevent leaks
• Common symptoms: water on the floor during/after draining, standing water left in the tub, visible cracks/bulges/kinks on the hose
• May clog with debris, restricting flow and causing slow or no drain

• 1 drain inlet hose

• Unplug the washer and shut off water supply before servicing
• Have towels or a shallow pan ready; residual water may spill when hoses are removed
• Note hose routing and clamp positions; ensure the new hose is fully seated and not twisted or kinked
• After installation, run a quick drain/spin and check all connections for leaks

This retaining clamp secures wiring, hoses, or small assemblies to keep them routed and stable, helping prevent rubbing and vibration that can lead to wear or intermittent issues. Use it to replace a broken or missing clamp. What it does:

• Holds wires, hoses, or tubing in place to prevent contact with moving parts
• Reduces vibration and rattling by keeping components secure
• Prevents chafing that can cause insulation wear or exposed wiring
• Restores proper routing after repairs or part replacement

• Disconnect power (and water if applicable) before accessing internal components
• Use appropriate hand tools; avoid over-tightening which can damage the clamp or secured part
• Inspect surrounding wiring/hoses for damage and replace if needed

The Pump Drain is an OEM part for GE washing machines. This component is responsible for removing water from the washer drum during the drain cycle, ensuring that the water is efficiently expelled from the machine. The pump drain plays a crucial role in the washing machine's ability to complete its cycles and maintain optimal performance.

Over time, the pump drain can become clogged, worn out, or damaged due to regular use or foreign objects obstructing the pump. Common causes of a bad pump drain include buildup of debris, wear and tear on the pump mechanism, or blockages from items accidentally left in pockets.

Symptoms of a bad pump drain include:

• Water not draining from the washer
• Unusual noises during the drain cycle
• The washer stopping mid-cycle due to drainage issues
• Water leaking from the bottom of the washer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This washer motor run capacitor stores and releases electrical energy to help the drive motor start and run smoothly. Replacing a weak capacitor can help restore consistent agitation and spin and reduce motor humming or stalling under load.

• Provides the phase shift and torque assist the drive motor needs to start and stay running
• Can address: washer won't start, no agitate or spin, motor only hums/buzzes, or stops under load
• Visible clues of failure can include a swollen, cracked, or leaking capacitor case

• Unplug the appliance before servicing; capacitors can retain a charge even when power is off
• Discharge the capacitor safely before handling
• Note wire positions; move leads to the same terminals and secure the capacitor in the original bracket/orientation
• Inspect connectors and replace any burnt or loose terminals to ensure a tight fit

This washer suspension support kit replaces the supports that steady the wash tub. It helps control vibration and balance during wash and spin for smoother operation, reduced noise, and fewer out-of-balance interruptions.

• Supports and centers the tub assembly to reduce vibration during agitation and spin
• Helps prevent banging, walking, and excessive movement
• Aids the washer in reaching proper spin speed without balance-related pauses
• Symptoms of wear include shaking, thumping, or a leaning tub

• Disconnect power and shut off water supply before servicing; wear gloves
• Support the tub before removing old supports and release spring tension carefully
• Install new supports evenly and ensure each end is fully seated in its sockets
• Re-level the washer and run a rinse/spin test to verify smooth operation

This rear rod assembly supports and stabilizes the dryer drum so it spins smoothly and stays aligned. Replacing a worn or bent rear rod restores proper drum tracking and reduces rubbing, noise, and vibration. What it does

• Provides a mounting/axle point at the back of the drum to keep rotation centered
• Helps prevent drum wobble, scraping noises, and uneven wear on drum seals or glides
• Commonly replaced when the drum is hard to turn, noisy, or visibly misaligned
• Works with existing rollers, bearings, and retaining hardware to maintain drum stability

• One rear rod assembly as shown

• Disconnect power (and gas if applicable) before beginning any repairs
• Access typically requires removing the dryer cabinet or back panel and the drum — follow the OEM service manual
• Inspect related rollers, bearings, and seals and replace if worn to avoid repeat failure

This front suspension rod assembly supports and stabilizes the washer tub from the front of the cabinet. Replacing a worn rod helps reduce vibration, banging, and out-of-balance movement so the washer operates more smoothly.

• Supports and balances the tub from the front corner of the cabinet
• Damps vibration and side-to-side movement during wash and spin
• Helps address symptoms like excessive shaking, banging, or the tub leaning forward
• Reduces walking, rattling, or frequent out-of-balance interruptions

• Disconnect power and water; wear gloves and eye protection
• Support the tub before removing the rod—spring is under tension
• Replace one rod at a time and match the upper/lower end orientation
• Ensure both ends are fully seated in their sockets; re-level the washer after reassembly

This suspension rod support socket replaces the plastic cup the suspension rod sits in on a top-load washer. Replacing a worn socket restores smoother tub movement and helps reduce vibration and noise during wash and spin cycles.

• Supports the suspension rod at the tub/frame connection point
• Provides a low-friction pivot to stabilize the basket
• Helps reduce excessive shaking and out-of-balance banging
• Common signs of failure: cracks, squeaks/scraping, or the rod popping out

• Unplug the washer and shut off water supply before servicing
• Access the suspension area per your model (remove top/front panel as needed)
• Support the tub, relieve tension on the suspension rod, swap the socket, and ensure the rod seats fully in the new socket
• Reassemble, level the washer, and run a test spin to check balance

The Shock Dampening Strap is an OEM part for GE washing machines. It's designed to stabilize the washer drum, absorbing and reducing vibrations during the spin cycle. This helps prevent excessive noise and wear on other components, ensuring smoother operation and extending the lifespan of the machine.

Symptoms of a bad Shock Dampening Strap include:

• Increased vibration or shaking of the washer, especially during high-speed spins.
• Unusual noises, such as banging or thumping, indicating the drum is moving excessively.
• The washing machine "walking" or moving from its original position due to uncontrolled drum motion.

Causes of a bad shock dampening strap can include natural degradation from regular use, strain from unbalanced loads, or material breakdown due to age and wear.

This GE replacement part  is also compatible with Hotpoint, RCA, and some Kenmore models.
