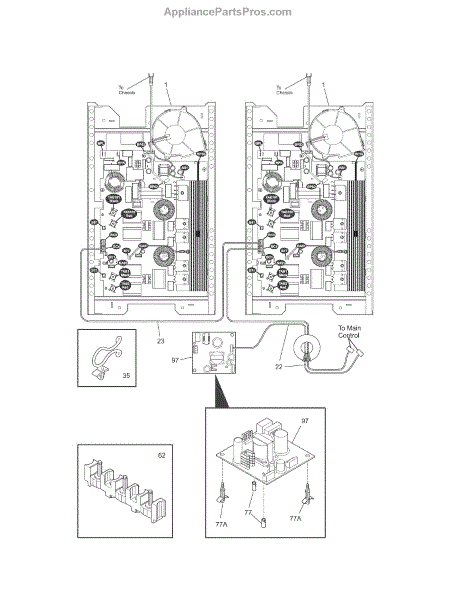

Parts for Kenmore 790.43809000 (79043809000, 790 43809000): Controls Parts

This ignition generator and wiring harness assembly routes power and provides the spark/ignition signal needed for gas appliance burners to light. It replaces a worn or damaged ignition assembly to restore reliable lighting. What it does:

• Sends ignition voltage to the burner igniters and electrodes so burners light reliably
• Routes and secures wiring between the control module and ignition components
• Common failure symptoms: burners won't light, continuous clicking, or intermittent ignition
• Works as the electrical interface between the control and the igniters for safe startup

• One generator and wiring harness assembly

• Disconnect electrical power and turn off the gas supply before starting work
• Follow the appliance OEM diagram for correct routing and connector locations
• Inspect connectors and electrodes for damage and replace if corroded or worn

Wire harness assembly for electric cooktops. Connects electrical components and controls. Replace if wires are frayed, damaged, or connections are loose.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Main electronic control board for electric cooktops. Manages user interface and appliance functions. Replace if board is damaged, burnt, or unresponsive.

This repair parts list is the factory literature sheet that shows the appliance's parts diagram and reference numbers, helping you identify the correct replacement components quickly and accurately. Keep it with your service notes for reference. What it does:

• Provides the OEM exploded parts diagram and part number references for accurate parts identification
• Useful for troubleshooting when a part is missing, damaged, or unclear from visual inspection
• Supports faster communication with technicians by providing reference numbers and diagram locations

• This is a reference/literature item; no mechanical installation required
• Store the sheet with your appliance records or service paperwork for future use
• Handle carefully to avoid tearing; replace if illegible

Motor making noise or loose? This motor mounting nut secures motors in refrigerators, ranges, and other appliances. Simple install takes 15 minutes.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.
