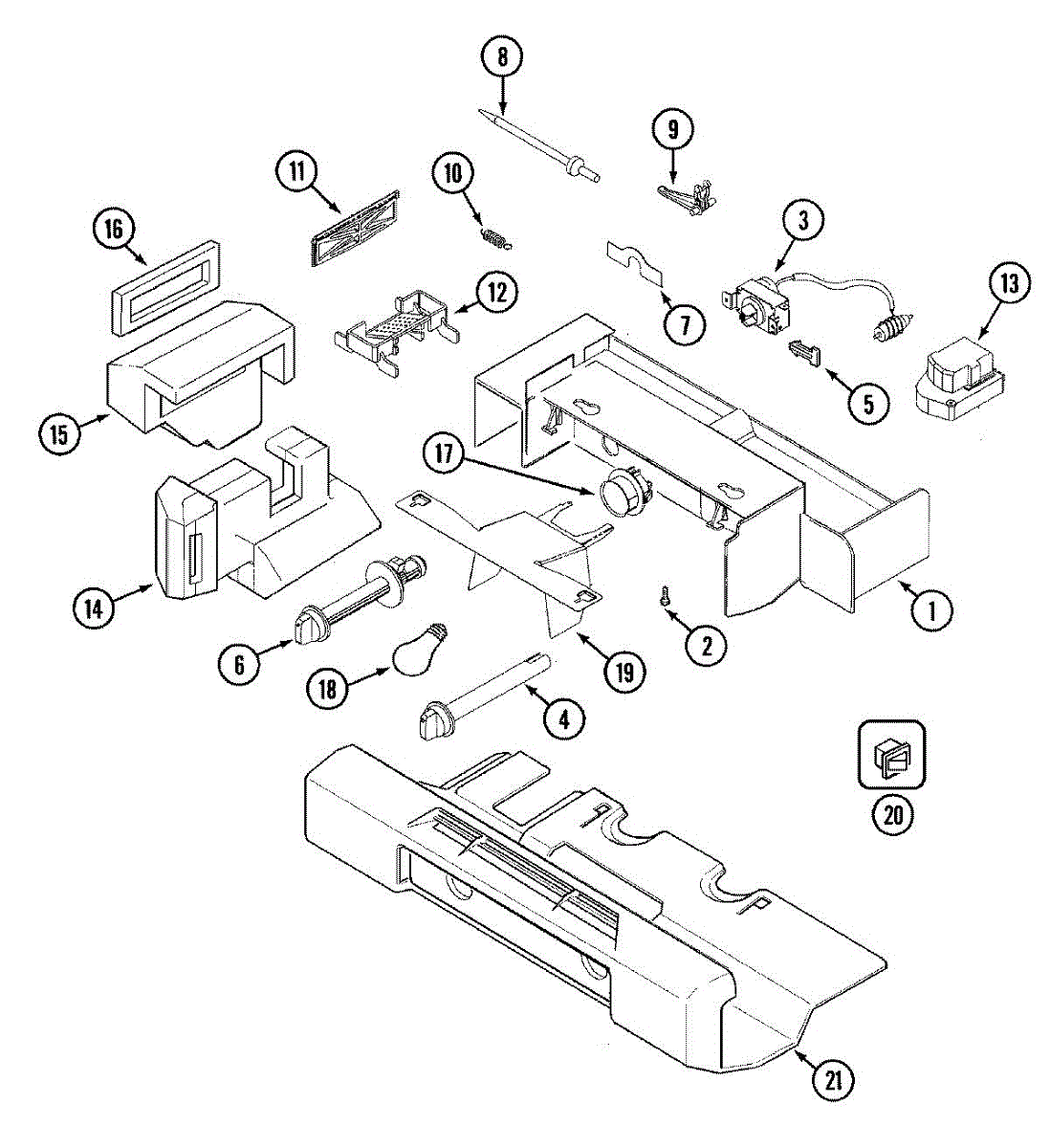

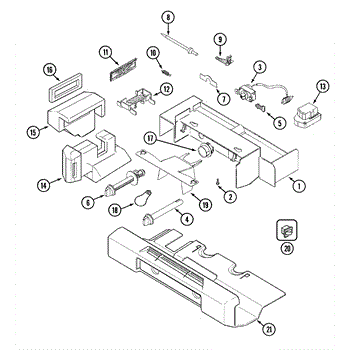

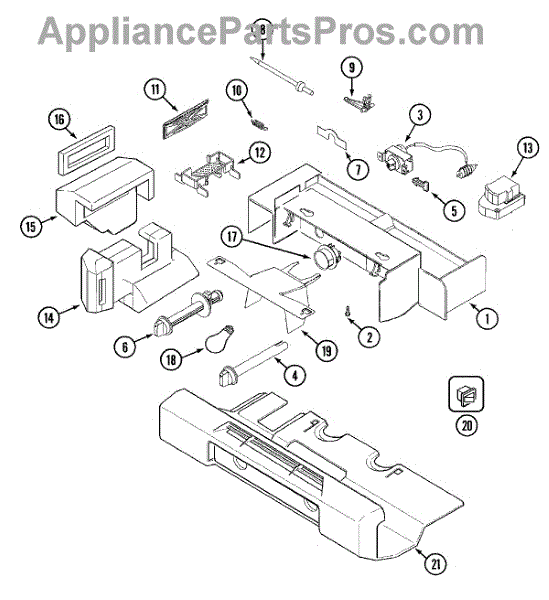

Parts for Magic Chef CSB2323ARA: 02 - Controls Parts

This temperature control assembly replaces the refrigerator's thermostat/control module to help restore consistent cooling and reliable temperature selection. It mounts in the control area and interfaces with the fridge's temperature sensors and compressor relay. What it does:

• Regulates and maintains interior temperature based on user settings
• Sends on/off signals to cooling components (compressor/fans) as temperature changes
• Provides the user temperature selection/adjustment interface or control signal
• Helps address symptoms like inconsistent cooling, incorrect temperature readings, or unresponsive temperature controls

• Disconnect power to the appliance before starting any repair
• Handle the control assembly and its connectors carefully to avoid damage
• Verify correct part placement and connector seating against the appliance's service diagram

This is a replacement mounting screw for securing appliance components and panels. It restores proper fastening where a missing or stripped screw causes loose parts or rattling. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Prevents vibration and rattling caused by loose or missing fasteners
• Replaces stripped or lost factory screws to maintain original fit
• Matches OEM fit for the specific mounting location when the part number is specified

• Use the matching screw location and size specified by the parts diagram
• Hand-start threads to avoid cross-threading; tighten securely but do not overtighten
• Disconnect power to the appliance before removing panels or components
• If threads are damaged, replace with correct OEM screw—do not force a mismatched fastener

The defrost timer controls your refrigerator's automatic defrost cycle, periodically pausing cooling to power the defrost heater. Replacing a faulty timer restores proper defrosting to help prevent frost buildup, temperature swings, and excessive run time.

• Advances the system between cooling and defrost at set intervals
• Sends power to the defrost heater, then returns the unit to cooling
• Failure may cause heavy frost on evaporator coils and weak airflow
• Fresh food section may run warm while the freezer ices over
• Unit may run constantly, never defrost, or get stuck in defrost

• Disconnect power before servicing
• Location varies by model; access the timer (often in the control housing or rear compartment), note wire positions, and transfer one at a time
• Mount and secure the timer as originally installed; reuse existing bracket/fasteners
• After reassembly, restore power and verify the unit advances through cooling and defrost

A replacement door gasket that restores a tight seal around the oven door to help maintain proper cooking temperature and improve efficiency. Fits Whirlpool ovens and ranges that use part A3189394. What it does

• Seals the oven cavity to reduce heat loss and help maintain consistent cooking temperatures.
• Helps prevent heat from escaping around the door, improving energy use and cook results.
• Worn, torn, or flattened gaskets can cause uneven baking or longer cook times.
• Replacing a damaged gasket can reduce hot spots on the exterior and nearby cabinetry.

• Disconnect power and ensure the oven is completely cool before starting.
• Remove the old gasket by pulling it out of the door channel; clean the channel before installing the new gasket.
• Press the new gasket into the channel around the full perimeter, working from one corner and ensuring an even fit.

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This replacement light bulb restores clear, reliable illumination so you can see contents and monitor appliance operation. Replace a burned-out, dim, or flickering bulb to bring visibility back to the area it lights. What it does:

• Provides illumination in the appliance's interior or designated lighting location
• Makes it easier to see contents and check status at a glance
• Common symptoms: light won't turn on, intermittent/flickering light, dim or blackened bulb

• 1 light bulb

• Disconnect power before servicing; allow hot surfaces and the old bulb to cool completely
• Remove any lens/cover, then remove the old bulb
• Install the new bulb securely without overtightening; reinstall the lens/cover if present
• Restore power and test operation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
