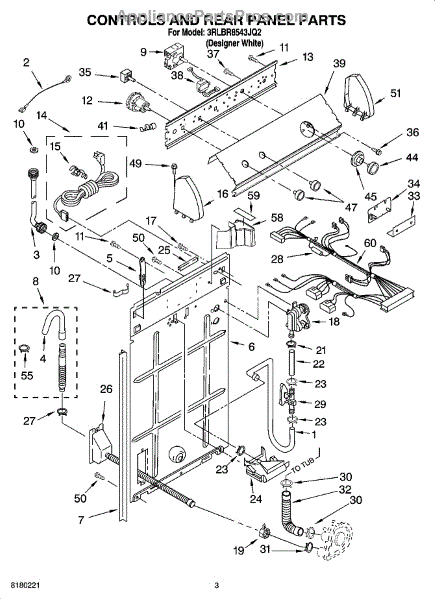

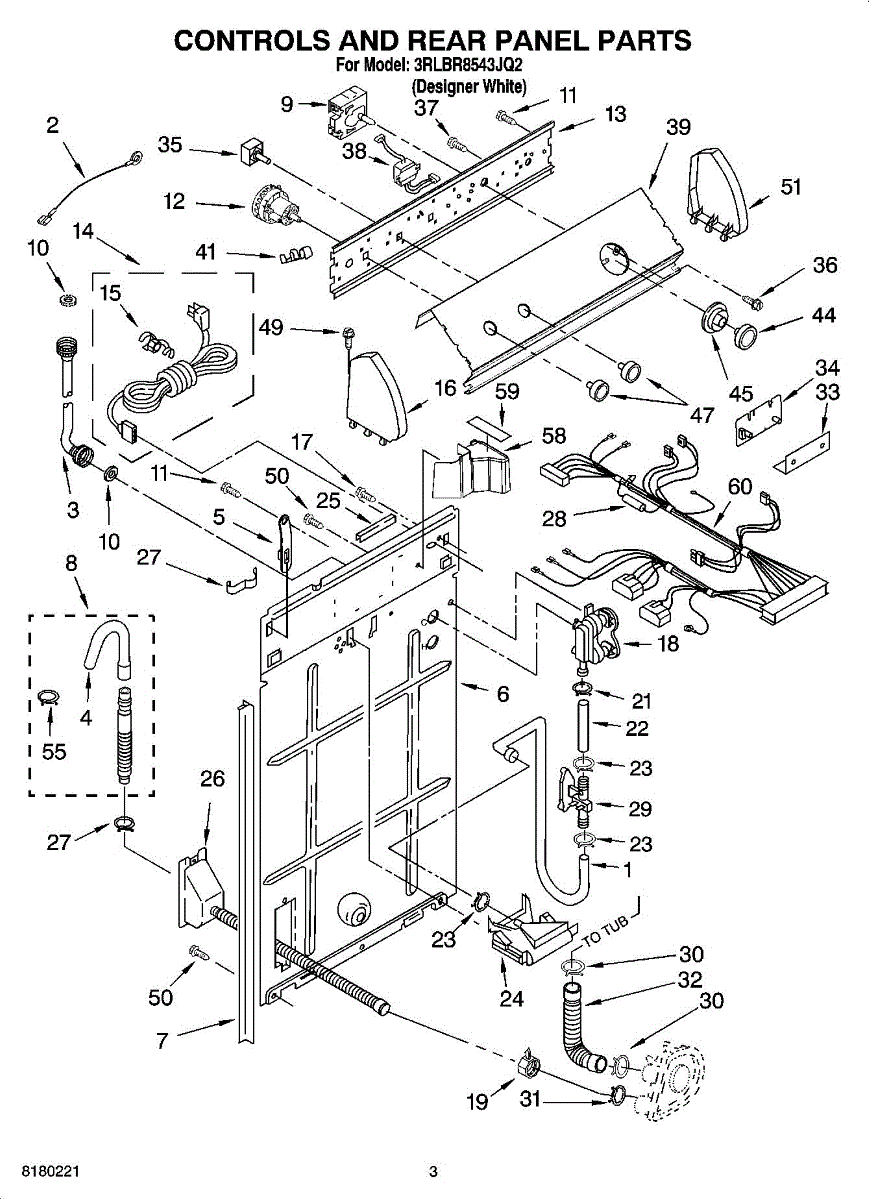

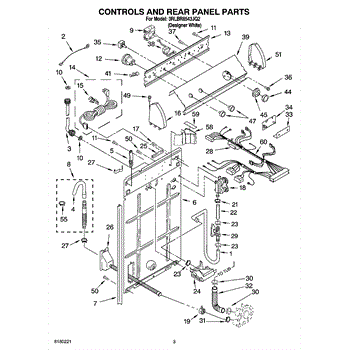

Parts for Whirlpool 3RLBR8543JQ2: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This fill hose routes incoming water from the inlet valve to the washer tub so the machine fills properly. It's a direct-replacement hose that restores proper water delivery and prevents leaks when the original hose is damaged. What it does

• Carries incoming water from the inlet valve into the washer tub during the fill cycle
• Prevents leaks and sprays that occur when a hose is cracked, split, or disconnected
• Helps restore normal fill speed and cycle operation when a worn hose restricts flow
• Works with the washer's existing clamps and fittings to provide a sealed connection

• One fill hose

• Turn off power and shut off the water supply before beginning any repair
• Inspect and replace hose clamps as needed; ensure fittings seat fully and clamp securely
• Route the hose along the original path to avoid pinching, kinks, or contact with heating elements
• If you see persistent leaking after installation, recheck connections and replace any damaged valves or fittings

For end of drain hose.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

Size: 21 inches long. Clamp included.

Size: 48 inches long. Clamp included. For 21 inch extension use 285702.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This water level pressure switch senses the tub's water level and relays it to the washer's control. Replacing a failed switch restores proper filling and cycle progression while helping prevent overfilling, underfilling, or long-fill interruptions.

• Monitors air pressure from the tub to determine water level
• Signals the control/timer to stop filling and start the wash or spin
• Helps prevent overfill conditions and incorrect water levels
• Helps resolve symptoms like no fill/long fill, continuous filling, or cycles that won't advance

• Disconnect power and shut off water supply before servicing
• Access the control/console area; note wire and hose positions for reassembly
• Transfer the pressure hose and electrical connector to the new switch; ensure the hose is clear, undamaged, and fully seated
• After installation, run a diagnostic or calibration procedure for your model

Size: 10-24 x 3/8 inch.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vacuum break is the washer's water-inlet anti-siphon fitting. It maintains a required air gap so the tub fills properly without drawing used water back into the supply, helping prevent leaks and backflow issues.

• Maintains an air gap at the inlet to prevent backflow/siphoning into household water lines
• Helps ensure consistent, unobstructed water flow into the tub
• Replaces a cracked, clogged, or leaking vacuum break at the fill area
• Common symptoms include leaks from the rear/top during fill, visible cracks, or restricted/noisy fill

• Unplug the appliance and shut off both water supplies before servicing
• Access the fill/inlet area; note hose routing and part orientation
• Remove hose clamps/hoses and the old vacuum break; install the new part and secure clamps
• Restore water and power, then run a fill test and check carefully for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Internal Drain Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying used water from the washer tub to the drain pump, facilitating the efficient removal of water during the drain cycles. It ensures that water is properly directed out of the washer, preventing leaks and maintaining optimal washing performance.

Causes of a bad internal drain hose can include blockages from debris or lint, wear and tear from regular use, or damage such as cracks or splits from mishandling or aging.

Symptoms of a bad internal drain hose include:

• Water leaking inside or around the washer
• Slow or incomplete draining
• Error codes related to draining issues
• Unusual noises during the drain cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Water inlet temperature sensor.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

The Knob is an OEM part for Whirlpool washers. This part allows users to select and control the various wash cycles and settings by turning the knob to the desired position. It fits securely onto the washer's control shaft, providing an intuitive and reliable interface for managing the washing machine's functions.

Causes of a bad knob can include regular wear and tear, damage from repeated use, or breakage due to accidental impact.

Symptoms of a bad knob include:

• The knob not turning smoothly or becoming difficult to turn
• The knob slipping off or not staying securely on the control shaft
• Inaccurate or unresponsive cycle and setting adjustments
• Visible cracks, breaks, or wear on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Washer Timer Dial is an OEM replacement part for Whirlpool washers. Positioned just behind the washer timer knob, the timer dial features a gray indicator that helps the user select the appropriate cycle. It interacts with the timer to ensure the washer operates in the correct mode and duration according to the chosen cycle.

Color: White

Over time, the timer dial may degrade due to regular use, excessive force during cycle selection, or accidental impact. This can lead to inaccurate cycle selection, making it hard to use the washer efficiently.

Symptoms of a faulty Washer Timer Dial include:

• Misalignment or sticking when choosing cycles
• Difficulty accurately selecting the desired cycle
• Cracked or broken indicator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Control Knob is an OEM part for Whirlpool washers and dryers. It attaches to the selector switch, enabling users to choose various settings such as wash or drying temperature, fabric type, and spin speed.

The most common causes of a defective control knob include internal stripping that prevents secure engagement with the selector shaft, wear and tear from frequent use, accidental impacts leading to cracks or breakage, and aging of the knob's material.

Color: White

Symptoms of a malfunctioning control knob include:

• Difficulty selecting or changing cycle settings
• The knob spins freely without engaging the selector switch
• Cracks, looseness, or broken parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washers and dryers.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

10 - 16 x 1/2

This drain hose clamp secures the hose connection to keep water where it belongs during the drain cycle. A tight, reliable clamp helps prevent leaks and hose pull-off from vibration or pressure changes. What it does:

• Secures the drain hose to a pump outlet or drain port to maintain a watertight seal
• Helps prevent the hose from slipping off during operation
• Reduces leaks at the hose connection point
• Common symptoms of a bad clamp: water leaking at the drain hose joint, a loose/detached hose, or a visibly rusted/broken clamp

• 1 clamp

• Disconnect power and turn off the water supply; place a towel to catch residual water
• Access the hose connection, remove the old clamp, and inspect the hose end and fitting; replace the hose if cracked or swollen
• Position the new clamp correctly over the hose and behind the fitting bead; tighten/seat evenly without overtightening
• Reassemble and run a brief drain test to check for leaks
